Quick Details
-
Reinforcement:
-
Rubber/Spring/Plastic
-
Bead Diameter:
-
Customized 11.5mm, 11.0mm, 10.5mm, 8.8mm, 8.4mm, 7.5mm, 6.5mm
-
Certificate:
-
ISO9001:2008,SGS
-
Samples:
-
Free Sample Available
-
Service:
-
OEM & ODM
-
Main Market:
-
North America, South America, Africa, Mid East, Western Europe
-
Application:
-
Marble/Granite /Mine /Limestone /Sandstone/Basalt /Concrete cutting
-
Package:
-
50Meter/Roll
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Product Name:
-
diamond wire tool
-
Bead (pcs/m):
-
28/30/33/37/40pcs/m
-
Reinforcement:
-
Rubber/Spring/Plastic
-
Bead Diameter:
-
Customized 11.5mm, 11.0mm, 10.5mm, 8.8mm, 8.4mm, 7.5mm, 6.5mm
-
Certificate:
-
ISO9001:2008,SGS
-
Samples:
-
Free Sample Available
-
Service:
-
OEM & ODM
-
Main Market:
-
North America, South America, Africa, Mid East, Western Europe
-
Application:
-
Marble/Granite /Mine /Limestone /Sandstone/Basalt /Concrete cutting
-
Package:
-
50Meter/Roll

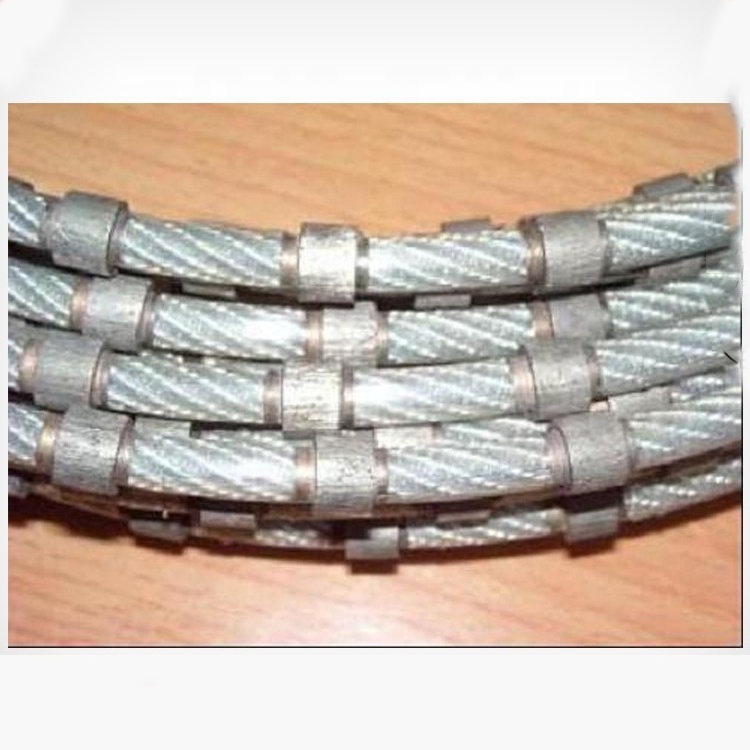

High quality and efficient granite wire saw cutting diamond wire tool
diamond wire tool
Product Details for Diamond teech for concrete
Diamond segmentsThe segments are attached to the core by brazing with silver solder;
High-quality Diamond Segment Made from High-grade Diamond by Special and Advanced Techniques;
Segment for diameter 100mm to 3000mm blade;
Specifications supplied by customers are available;
High cutting efficiency and long life;
Forms:
M shape, K shape, Taper shape, Flat shape, T shape, U shape, etc.
Application
for Diamond teech for concrete
Diamond Segment can be produced for cutting granite, marble, asphalt, tile, concrete, fire-proof materials or for continuous polishing machine. Our diamond segments for large circular saw blades are always manufactured in sandwich design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.
Our advantage for Diamond teech for concrete
1. High percent of bond materials
2. High grade of diamonds
3. Over 13 years experence with hundreds of formula against different stones
4. Competitive price and stable quality
5. Strict quality control
6. Our products last long life and give a sharp cut
| Model Number | Inch | Diameter | Length | Height(Flat) | Height(Flat) | Height(type) | Segment No. | Use for |
| (in) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| HSGB300 | 12 | 300 | 38 | 3.0/3.2 | 10/12/15 | 10/12/15 | 21 | single or multi-blades |
| HSGB350 | 14 | 350 | 38 | 3.2/3.4 | 10/12/15 | 24 | ||
| HSGB400 | 16 | 400 | 38 | 3.6/3.8 | 10/12/15 | 28 | ||
| HSGB450 | 18 | 450 | 38 | 3.8/4.2 | 10/12/15 | 32 | ||
| HSGB500 | 20 | 500 | 38 | 4.4/4.8 | 10/12/15 | 36 | ||
| HSGB600 | 24 | 600 | 38 | 4.8/5.2 | 10/12/15 | 42 | ||
| HSGB800 | 32 | 800 | 22.5/24 | 6.6/7.4 | 12/15/20 | 11.5/12.5 | 70 | |
| HSGB900 | 36 | 900 | 22.5/24 | 7.0/7.8 | 12/15/20 | 80 | ||
| HSGB1000 | 40 | 1000 | 22.5/24 | 7.6/8.2 | 12/15/20 | 92 | ||
| HSGB1200 | 48 | 1200 | 22.5/24 | 7.8/8.4 | 12/15/20 | 92 | ||
| HSGB1400 | 56 | 1400 | 22.5/24 | 8.0/8.8 | 12/15/20 | 96 | ||
| HSGB1600 | 64 | 1600 | 22.5/24 | 8.4/9.2 | 12/15/20 | 108 | ||
| HSGB1800 | 72 | 1800 | 22.5/24 | 9.2/9.8 | 12/15/20 | 14/15 | 120 | |
| HSGB2000 | 80 | 2000 | 22.5/24 | 9.6/10.2 | 12/15/20 | 128 | ||
| HSGB2200 | 88 | 2200 | 22.5/24 | 13.6/14.2 | 12/15/20 | 132 | ||
| HSGB2500 | 100 | 2500 | 22.5/24 | 14.5/15.1 | 12/15/20 | 140 |
Welcome to Huisen Diamond Tools co.,ltd.,we are a production factory which specialized in producing all kinds of diamond cutting tools. Our products include: Granite and Marble cutting wire saw, Granite and Marble cutting saw blade, Granite and Marble cutter head, Diamond drill bit, and various diamond cutting discs.
1. How can I know the quality whether it is suitable for our factory or market?
A:Provide to us more details about your stone ,and try to make a trial, after you used our segments, then you will know the quality. According to your requirements, production of products what you want.We have 16 years of experience in diamond tools industry.
2.As I know many companies supply free samples, do you offer free samples?
A:We don’t offer free samples, Although the quantity of sample is small however its cost is higher than normal production.
3. What is the delivery way you send our goods?
A:For order diamond tools we always make the shipment by Air, also we can make the shipment by sea, it depends on our customers’ requirement.
4. What is the delivery way you send our goods?
A:For order diamond tools we always make the shipment by Air, also we can make the shipment by SEA, it depends on our customers’ requirement.
5. How can I know how much I should pay the delivery charge?
A:We will calculate the approximate gross weight, then according to the current Air Freight rate or Ocean Freight rate and add Chinese customs formalities & documents charge,Then we will let you know the finall charges.
6.What could we do if we find your products cannot run well?
A:Please contact us directly,provide us the details data.We can analyze the possible reasons, try to find the problem, then tell you how to solve them.
7. I want to be your agent, what is the conditions?
A:If you want to be our agent, the good capability of marketing is necessary, the other items we can settle down by negotiation.
