Quick Details
-
Rated Power:
-
300w
-
Engraving Speed:
-
2-4characters/s
-
Main Axle Rotational Speed:
-
3000mm/s
-
Feeding Height:
-
0-200mm Optional
-
Milling Cutter Diameter:
-
2.5-4mm Marking Pin
-
Application:
-
metal, stainless sign / serial number / vin number tag
-
Dimensions:
-
60mm*30mm/150mm*30mm
-
Weight (KG):
-
40
-
Product name:
-
cnc pneumatic dot pin marking machine for metal laser marking
-
Marking Type:
-
Handheld Portable Pneumatic Marking
-
Marking area (mm):
-
150X90mm
-
Marking Depth:
-
0.01~2mm
-
Marking Speed:
-
2-5 Characters(2*2mm)/s
-
Software:
-
ThorX6
-
Guide rails:
-
import linear square guide rails
-
Pin Hardness:
-
HRC 73
-
Air pressure:
-
0.2-0.6Mpa
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Machine Type:
-
MARKING machine
-
Rated Power:
-
300w
-
Engraving Speed:
-
2-4characters/s
-
Main Axle Rotational Speed:
-
3000mm/s
-
Feeding Height:
-
0-200mm Optional
-
Milling Cutter Diameter:
-
2.5-4mm Marking Pin
-
Application:
-
metal, stainless sign / serial number / vin number tag
-
Dimensions:
-
60mm*30mm/150mm*30mm
-
Weight (KG):
-
40
-
Product name:
-
cnc pneumatic dot pin marking machine for metal laser marking
-
Marking Type:
-
Handheld Portable Pneumatic Marking
-
Marking area (mm):
-
150X90mm
-
Marking Depth:
-
0.01~2mm
-
Marking Speed:
-
2-5 Characters(2*2mm)/s
-
Software:
-
ThorX6
-
Guide rails:
-
import linear square guide rails
-
Pin Hardness:
-
HRC 73
-
Air pressure:
-
0.2-0.6Mpa

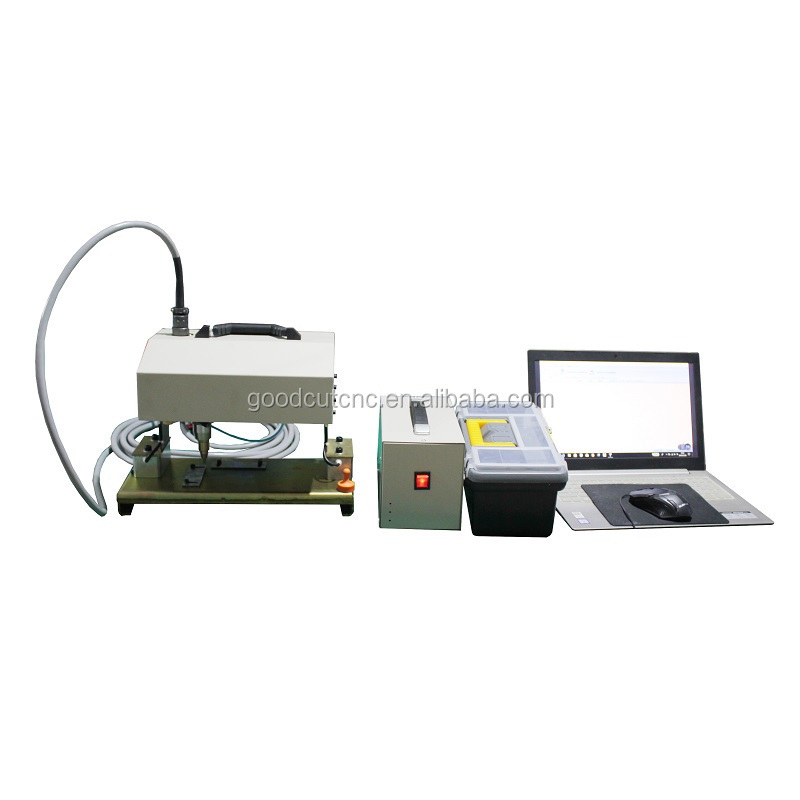

cnc pneumatic dot pin marking machine for metal laser marking
Product Description
Perfect Laser is the world famous manufacturer for dot pin marking machine. Our rotary pin marking machine (Model: GC) support both flat marking and rotary marking. The pin marking machine can permanently make marks on the surfaces of various materials, including letters, numbers, serial numbers, etc
Specification
|
Marking speed
|
2-5 characters(2x2mm)/s
|
|
Stroke Frequency
|
300times/s
|
|
Marking depth
|
0.01 to 1mm (Vary to the material)
|
|
Marking contents
|
Alphanumeric info, Data Matrix or dot matrix 2D codes,
Shift codes, Barcode, Serial Number, Date, VIN Code, Time, Letter, Figure, Logo, Graphics and etc. |
|
Stylus Pin Hardness
|
HRA92/HRA93
|
|
Marking area
|
80x40mm,130x30mm,140x80mm,200x200mm
|
|
Dimensions
|
320x420x700mm
|
|
Marking materials
|
below HRC60 metallic and nonmetallic materials ,
above HRC60 need special stylus |
|
Repeat accuracy
|
0.02-0.04mm
|
|
Power
|
300W
|
|
Work voltage
|
AC 110V 60HZ or AC220V 50HZ
|
|
Compressed Air( Pneumatic Air)
|
0.2-0.6Mpa
|
|
Connection
|
USB and RS-232
|
|
Controller
|
a. 7"LCD touch screen controller
|
|
Power type
|
a.Pneumatic
|
|
Marking directions
|
up, down, left, right, and the circular arc surface marking
|
|
Gross weight
|
70KG
|
Due to its small size and portable type, this model is widely used for marking characters, serials numbers and VIN codes on automobile or bodywork of car frames, automotive chassis, connecting rods, petrol pipe, crossbeam, mechanical parts, machine tools, metal pipes, pump bodies, fastening pieces and various hard plastic products.
Portable Metal Dot Pin Marker integrates computer, automatic control and precise machinery. It is industrial marking equipment which can make logo (characters, letters, VIN code, serial numbers, date and graphics) on metal or no-metal work pieces permanently.
Product Features of
cnc pneumatic dot pin marking machine for metal laser marking
:
1) The marking head weight is only 2 kgs, is portable with a small size & easy to handle.
2) Applying the most widely used up-down lifting structure to realize multi-functions.
3) Controlled by computer, with the easy-to operate WINDOWS system .Perfect Laser’s professional marking software has a wide application, and can operate under WINDOWS98/2000/ XP system.
4) With powerful edit function, it can mark any logo (character, letter and graph, data code, series number, VIN code, engine numbers) automatically.
5) It can support logos and graphics designed in DXF format from AutoCAD, CorelDraw.
6) It can support multi-kinds fonts: MG Font, SHX Font in Auto CAD, CHR in Borland, and TTF in Windows.
7) Marking contents could be saved automatically and not be destroyed during power-off of the machine.
8) It can be used online to share the database and data transmission with other equipment, such as match with electronic scales, bar code machines, leak detectors and other equipment
1) The marking head weight is only 2 kgs, is portable with a small size & easy to handle.
2) Applying the most widely used up-down lifting structure to realize multi-functions.
3) Controlled by computer, with the easy-to operate WINDOWS system .Perfect Laser’s professional marking software has a wide application, and can operate under WINDOWS98/2000/ XP system.
4) With powerful edit function, it can mark any logo (character, letter and graph, data code, series number, VIN code, engine numbers) automatically.
5) It can support logos and graphics designed in DXF format from AutoCAD, CorelDraw.
6) It can support multi-kinds fonts: MG Font, SHX Font in Auto CAD, CHR in Borland, and TTF in Windows.
7) Marking contents could be saved automatically and not be destroyed during power-off of the machine.
8) It can be used online to share the database and data transmission with other equipment, such as match with electronic scales, bar code machines, leak detectors and other equipment
Application of
cnc pneumatic dot pin marking machine for metal laser marking
:
1. Motor industry: printing manufacture serial number, manufacture date, name, brand, etc. on the body, frameworks, base plate, pillar, engine, connecting rod, cylinder, piston, cylinder sleeve, etc.
2. Mechanical industry: marking on mechanical parts, machine tools, hardware products, steel tubes, sleeves, collars, rollers,pump valves, ring flanges, fasteners
3. Marking on apparatus, electromechanical instruments
4. Marking on hard plastic products,
5. Print numbers and manufacture serial numbers, etc. on aluminum, copper and stainless steel labels(nameplate)
6. Marking dial plates
1. Motor industry: printing manufacture serial number, manufacture date, name, brand, etc. on the body, frameworks, base plate, pillar, engine, connecting rod, cylinder, piston, cylinder sleeve, etc.
2. Mechanical industry: marking on mechanical parts, machine tools, hardware products, steel tubes, sleeves, collars, rollers,pump valves, ring flanges, fasteners
3. Marking on apparatus, electromechanical instruments
4. Marking on hard plastic products,
5. Print numbers and manufacture serial numbers, etc. on aluminum, copper and stainless steel labels(nameplate)
6. Marking dial plates
Packing & Delivery
standard export plywood box
