Quick Details
-
Max Discharge current:
-
20 A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CUAJE
-
Model Number:
-
OBVW-BNC/50C
-
Nominal Discharge current:
-
10 A
-
Product name:
-
BNC Connector Coaxial Cable Surge Protector tv lightning protector
-
material:
-
stainless steel
-
Certificate:
-
ISO9001: 2008
-
Packing:
-
Carton
-
OEM:
-
YES
-
Warranty:
-
2 Years
-
interface:
-
BNC
-
Impedance:
-
50ohm Taps
-
Color:
-
Grey
-
normal discharge current In:
-
10kA
Quick Details
-
Type:
-
Singal protection
-
Number of Pole:
-
1
-
Rated Voltage:
-
350
-
Max Discharge current:
-
20 A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CUAJE
-
Model Number:
-
OBVW-BNC/50C
-
Nominal Discharge current:
-
10 A
-
Product name:
-
BNC Connector Coaxial Cable Surge Protector tv lightning protector
-
material:
-
stainless steel
-
Certificate:
-
ISO9001: 2008
-
Packing:
-
Carton
-
OEM:
-
YES
-
Warranty:
-
2 Years
-
interface:
-
BNC
-
Impedance:
-
50ohm Taps
-
Color:
-
Grey
-
normal discharge current In:
-
10kA

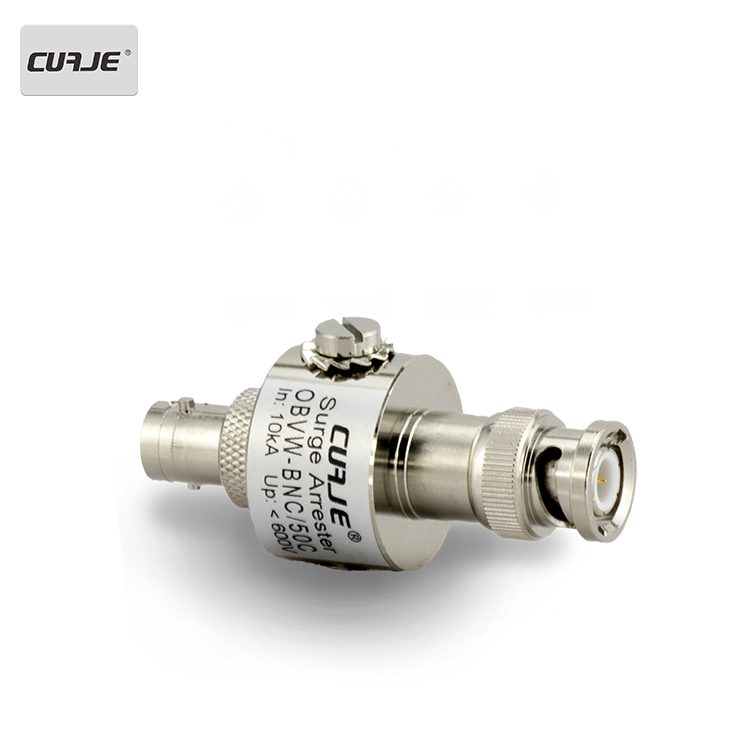

BNC Connector Coaxial Cable Surge Protector tv surge protector 350V lightning protector
BNC surge protection OBVW is the series of devices for discharging transient overvoltages induced in coaxial lines. In accordance with IEC 61643-21. Coaxial format.
Suitable for the protection of radiofrequency transmission and reception equipment. By their nature, they are highly exposed to induced transient overvoltages (surges) associated with meteorological activity.
For BNC, F, N, TNC connectors.
Ideal for the protection of transmission and reception systems such as TV and radio antennas, closed circuit TV (CCTV), alarms, etc.
|
|
OBVW- BNC/75C |
OBVW- BNC/50C |
OBVW- N/75C |
OBVW- N/50C |
OBVW- F/75C |
OBVW- F/50C |
|
Maximum Continuous Operating Voltage Uc (~) |
DC68V / AC130V / AC280V |
|||||
|
Nominal Discharge Current I n (8/20µs)kA |
10 kA |
|||||
|
Maximum discharge current Imax (8/20µs)kA |
20kA |
|||||
|
Maximum peak power (W) |
<300 |
|||||
|
Interface |
BNC |
N |
F |
|||
|
Voltage protection level (Up) |
<600 V |
|||||
|
Bandwidth (MHz) |
0- 3 000 |
|||||
|
Standing wave ratio, VSWR |
≤1.2 |
|||||
|
Insertion Loss |
≤0.1db |
|||||
|
Impedance(Ω) |
75Ω |
50Ω |
75Ω |
50Ω |
75Ω |
50Ω |
