Quick Details
-
Power:
-
1500, 1500
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JX
-
Dimension(L*W*H):
-
1.05m*0.8m*0.8m
-
Weight:
-
400 kg
-
Product name:
-
Automatic Wall Plaster Machine
-
Key words:
-
Automatic Plastering Machine
-
Keywords:
-
Automatic Wall Plastering Rendering Machine
-
Function::
-
Concrete Cement Wall Rendering Machine
Quick Details
-
Rendering Thickness:
-
5-35MM
-
Rendering Height:
-
4-5m, 4-5m
-
Production Capacity:
-
Other
-
Power:
-
1500, 1500
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JX
-
Dimension(L*W*H):
-
1.05m*0.8m*0.8m
-
Weight:
-
400 kg
-
Product name:
-
Automatic Wall Plaster Machine
-
Key words:
-
Automatic Plastering Machine
-
Keywords:
-
Automatic Wall Plastering Rendering Machine
-
Function::
-
Concrete Cement Wall Rendering Machine
Products Description
Product Paramenters
Introduction

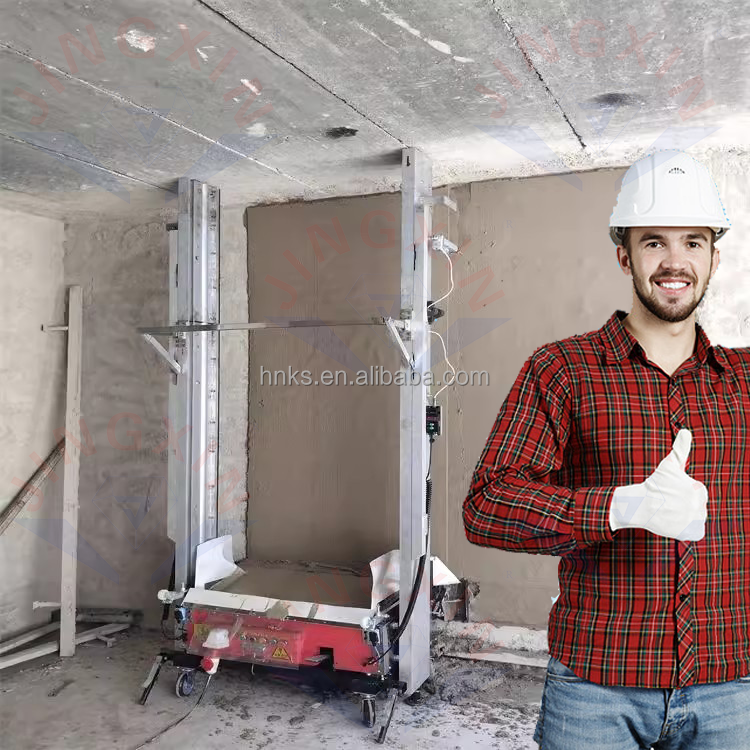

Automatic wall rendering machine is the ideal equipment for residential buildings, office buildings etc.It can plaster on cement wall, brick and concrete wall, hollow wall , light body brick, baking free brick wall etc.The rendering material could be lime,cement mortar , foam mortar, gypsum etc.The rendering thickness is no more than 3 cm and the height could be up to 5m. It could be adjust different thickness to suit each operation.
Automatic wall rendering machine is the ideal equipment for residential buildings, office buildings etc.It can plaster on cement wall, brick and concrete wall, hollow wall , light body brick, baking free brick wall etc.The rendering material could be lime,cement mortar , foam mortar, gypsum etc.The rendering thickness is no more than 3 cm and the height could be up to 5m. It could be adjust different thickness to suit each operation.
Main Features:
1. Simple structure in linear type ,easy in installation and maintation.
2.Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3.High pressure double crank to control the die opening and closing.
4.Running in a high automatization and intellectualization,no pollution
5.Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
1. Simple structure in linear type ,easy in installation and maintation.
2.Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3.High pressure double crank to control the die opening and closing.
4.Running in a high automatization and intellectualization,no pollution
5.Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
|
Name
|
Wall rendering machine
|
|
Efficiency
|
500-700square meter/8h
|
|
Power
|
1.6kw
|
|
Voltage
|
220v/380v
|
|
Plastering way
|
Vibration plastering
|
|
Vibrator
|
2 vibrators
|
|
Plastering height
|
≤4m
|
|
Plaster width
|
80cm
|
|
Plastering thickness
|
5-30mm
|
|
Moves
|
Automatic Walking
|
|
Lifting speed
|
3.6 m/30s
|
|
Host Dimension
|
1.05m*0.8m*0.8m
|
|
Console Dimension
|
2.6m*0.3m*0.23m
|
|
Total Dimension
|
0.9 cubic meter
|
