Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TS
-
Year:
-
2023
-
Voltage:
-
optional
-
Dimension(L*W*H):
-
1000x900x2900mm
-
Weight (T):
-
13 T
-
Model Number:
-
Y41
-
Motor Power (kw):
-
22 kw
-
After-sales Service Provided:
-
Online Support
-
Power Source:
-
Hydraulic
-

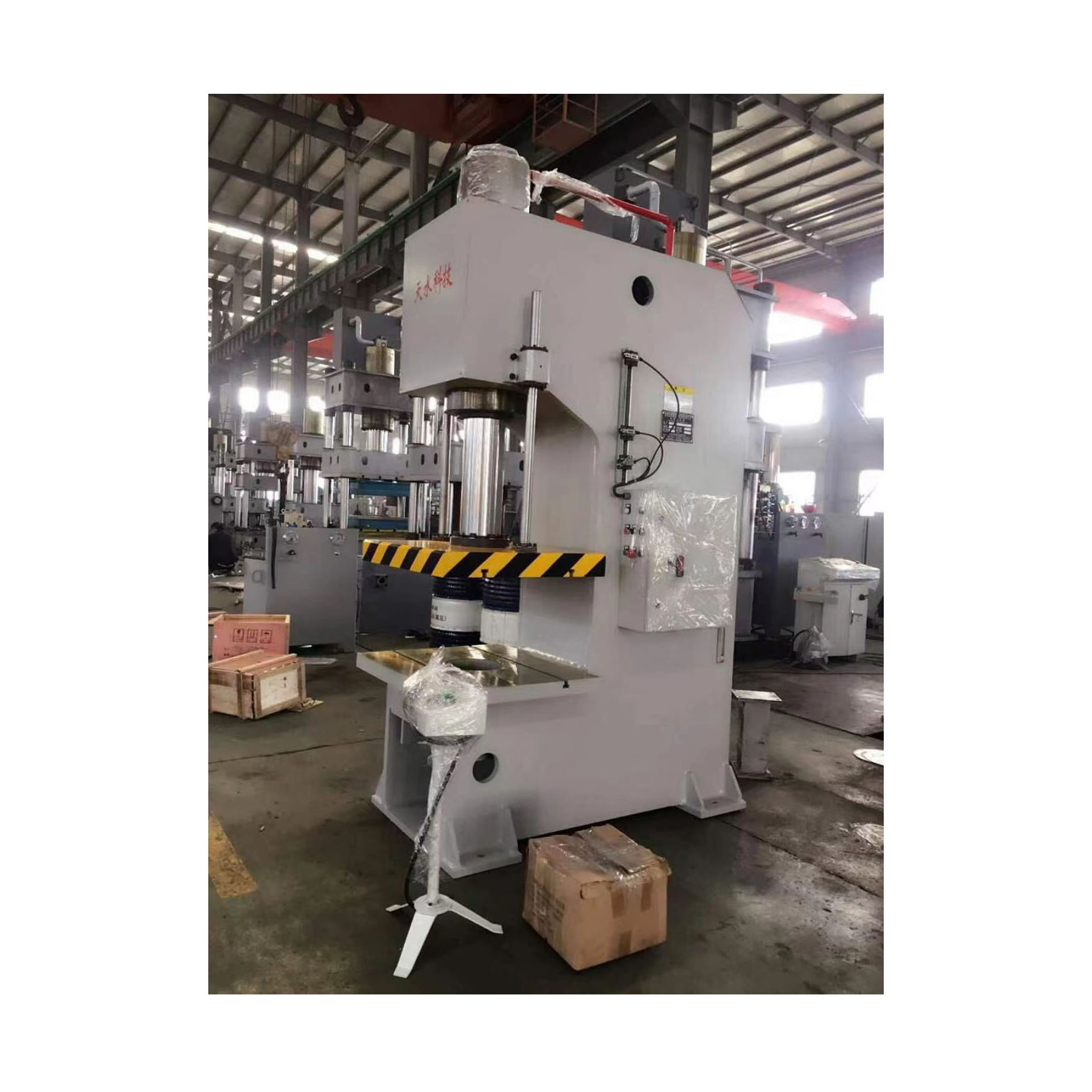

Product name:
-
hydraulic single column press
-
Keyword:
-
Hydryalic Press
-
Function:
-
Stamping Metal Product
-
Application:
-
Auto Parts
-
Type:
-
C-Type Structure
-
Name:
-
Hydraulic Punch Press Machine
-
Usage:
-
Pressing Metal Sheet
Quick Details
-
Machine Type:
-
hydraulic single column press
-
Slide Stroke (mm):
-
500, 650, 710, 800, 900, 1000, 1200
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TS
-
Year:
-
2023
-
Voltage:
-
optional
-
Dimension(L*W*H):
-
1000x900x2900mm
-
Weight (T):
-
13 T
-
Model Number:
-
Y41
-
Motor Power (kw):
-
22 kw
-
After-sales Service Provided:
-
Online Support
-
Power Source:
-
Hydraulic
-
Product name:
-
hydraulic single column press
-
Keyword:
-
Hydryalic Press
-
Function:
-
Stamping Metal Product
-
Application:
-
Auto Parts
-
Type:
-
C-Type Structure
-
Name:
-
Hydraulic Punch Press Machine
-
Usage:
-
Pressing Metal Sheet
Products Description
|
Item/Unit
|
|
Y41-40
|
¥41-63
|
Y41-100
|
Y41-160
|
Y41-200
|
Y41-250
|
Y41-315
|
Y41-400
|
|
|
Nominal force/KN
|
|
400
|
630
|
1000
|
1600
|
2000
|
2500
|
3150
|
4000
|
|
|
Throat depth/mm
|
|
320
|
320
|
340
|
325
|
350
|
400
|
400
|
450
|
|
|
The maximum opening height/mm |
|
700
|
700
|
900
|
1000
|
1000
|
1000
|
1100
|
1200
|
|
|
Pressure head travel/mm |
|
500
|
500
|
500
|
500
|
600
|
600
|
600
|
710
|
|
|
f
Length of worktable |
L-R/mm
|
580
|
580
|
750
|
750
|
800
|
850
|
900
|
1000
|
|
|
|
F-B/mm
|
560
|
560
|
630
|
630
|
650
|
700
|
750
|
800
|
|
|
Pressure head speed |
Descent
mm/s
|
48
|
38
|
38
|
20
|
25
|
60
|
65
|
60
|
|
|
|
Pressing
mm/s
|
12
|
10
|
10
|
8
|
4
|
3.7
|
4
|
4
|
|
|
|
Return
mm/s
|
135
|
95
|
118
|
100
|
65
|
80
|
65
|
55
|
|
|
Overall dimension |
L-R/mm
|
900
|
930
|
1200
|
1200
|
1300
|
1200
|
1500
|
1500
|
|
|
|
F-B/MM
|
1500
|
1600
|
1600
|
1700
|
1900
|
2000
|
2100
|
2200
|
|
|
|
Hight above
foor/mm |
2400
|
2600
|
2900
|
3100
|
3400
|
3500
|
3750
|
3800
|
|
|
Table hight above floor/mm |
|
650
|
650
|
700
|
650
|
700
|
700
|
600
|
600
|
|
|
Main motor power/KW
|
|
5.5
|
7.5
|
11
|
15
|
15
|
15
|
22
|
22
|
|
