Quick Details
-
Weight:
-
4.9KGS
-
Product name:
-
MT1000B mini portable ups power battery backup for router ups
-
Input Voltage Range:
-
110V/120V/220V/230V/240V
-
Floating Charging Voltage:
-
13.7VDC
-
Frequency Range:
-
60Hz/50Hz(Auto sensing)
-
Capacity:
-
600W
-
Transfer Time:
-
2-6ms
-
Material:
-
Plastic
-
Charging ability:
-
4-6 hours recover to 90% capacity
-
Wave Form:
-
Simulated Sine Wave
-
Certificate:
-
ISO9001/ISO14001/CE/ROHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ECSUN/OEM/ODM
-
Model Number:
-
MT1000B
-
Weight:
-
4.9KGS
-
Product name:
-
MT1000B mini portable ups power battery backup for router ups
-
Input Voltage Range:
-
110V/120V/220V/230V/240V
-
Floating Charging Voltage:
-
13.7VDC
-
Frequency Range:
-
60Hz/50Hz(Auto sensing)
-
Capacity:
-
600W
-
Transfer Time:
-
2-6ms
-
Material:
-
Plastic
-
Charging ability:
-
4-6 hours recover to 90% capacity
-
Wave Form:
-
Simulated Sine Wave
-
Certificate:
-
ISO9001/ISO14001/CE/ROHS

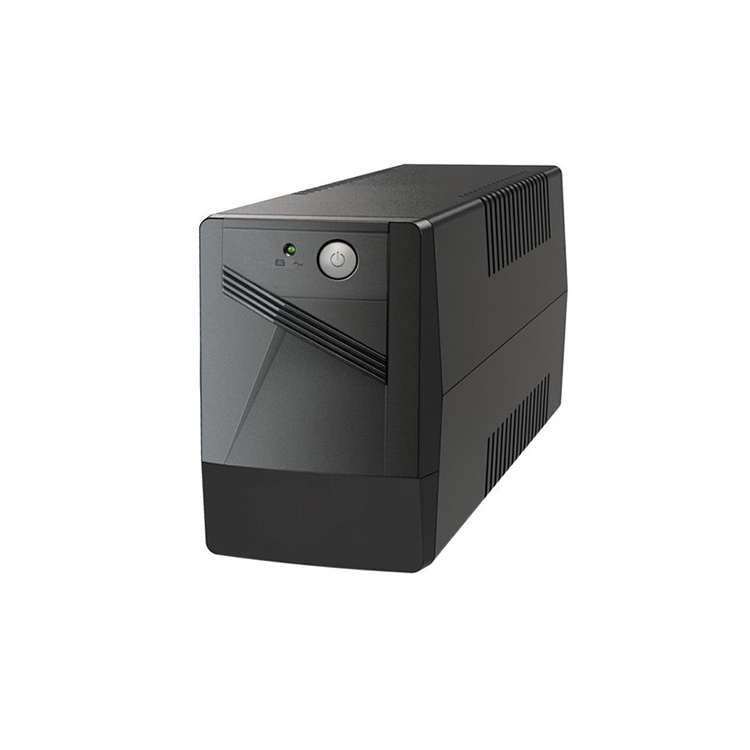

MT1000B mini portable ups power battery backup for router ups
| Item No | MT1000B | ||||
| Capacity | 1000VA/600W | ||||
| Materials | Plastic | ||||
| INPUT | |||||
| Voltage | 110/120 VAC or 220/230/240 VAC | ||||
| Voltage Range | 86-230 VAC or 140-285 VAC | ||||
| Frequency Range | 60/50 Hz (Auto sensing) | ||||
| OUTPUT Voltage | 110/120 VAC or 220/230/240 VAC | ||||
| AC Voltage Ragulation (Bat Mode) | ±10% | ||||
| Frequency Range (Bat Mode) | 60Hz or 50Hz ± 1Hz | ||||
| Transfer time | Typical 2-6ms | ||||
| Waveform (Bat Mode) | Simulated Sine Wave | ||||
| Power factor | 0.6 | ||||
| Battery | |||||
| Battery Type&Number | 12V*9Ah*1 | ||||
| Floating Charging Voltage | 13.7VDC | ||||
| Charging ability | 4-6 hours recover to 90% capacity | ||||
| Protection | |||||
| Full protection | Overload,discharge,overcharger protection,short-circuit protection | ||||
| Cold start | YES | ||||
| Led Indications | |||||
| Line mode | Green Lighting | ||||
| Battery mode | Flashing every 4 seconds | ||||
| Charging | |||||
| Fault | Green lighting | ||||
| Sound Alarm | |||||
| Battery mode | Sounding every 4 seconds | ||||
| Low battery | Sounding every 1 second | ||||
| Fault | keep sounding | ||||
| Dimension,D*W*H(mm) | 280*90*140 | ||||
| Net Weight (kgs) | 4.9 | ||||
| Environment | |||||
| Humidity | 0-90% Relative Humidity 0-40 ℃ (Non-condending) | ||||
| Noisy Level |
Less than 40dB |
||||
Product Features
1. Excellent mircroprocessor control optimizes reliability;
2. Built super smarkt charger, shorten charging time;
3. Boost and buck AVR for voltage Stabilization;
4. Auto restart while AC is recovering;
5. Off mode charging function;
6. Intelligent battery management.
main technical parameters
