Quick Details
-
Weight:
-
1700 KG
-
Product name:
-

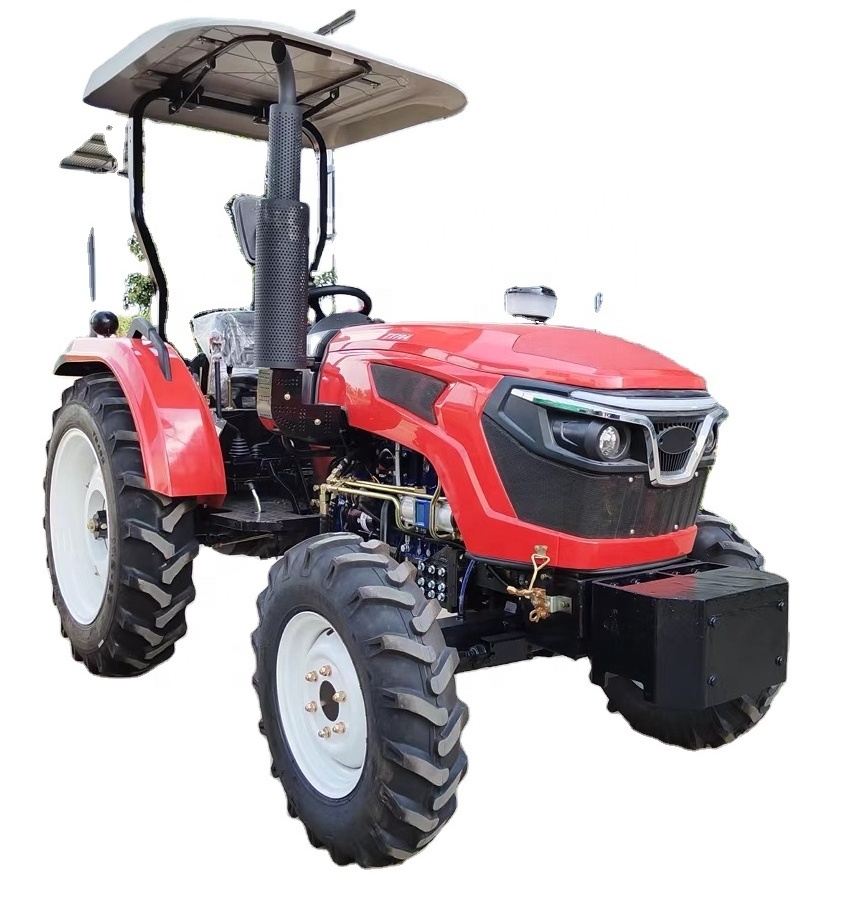

Four Wheel Mini Farm Tractor Machine 60HP Tractor for Farming
Quick Details
-
Brand Name:
-
Xinkai
-
Place of Origin:
-
Shandong
-
Engine Brand:
-
Quanchai
-
Weight:
-
1700 KG
-
Product name:
-
Four Wheel Mini Farm Tractor Machine 60HP Tractor for Farming
This series is middle hp tractor, which directly connected with its engine. Jaw type different lock can improve the pass-ability. Hydraulic output interface can make direct connection with the dump trailer. This series tractor have many different configurations according to customized demands: single stage clutch or double stage clutch, (4+1)*2 eight shifts, two speed PTO, fixed or adjusted tread.
|
Model |
TE604 |
|
Wheel drive |
4*4 |
|
Dimension(L*W*H)mm |
3630×1550×2370 |
|
Weight(kg) |
1700 |
|
Front wheel Tread(mm) |
1200 |
|
Rear Wheel Tread(mm) |
1200 |
|
wheel Base(mm) |
1860 |
|
Min. Ground Clearance(mm) |
355 |
|
Gear shifts |
8F+2R |
|
Tyre Size |
Front: 7.5-16 |
|
Rear: 11.2-28 |
|
|
Engine |
Yunnei |
|
Type |
4 Cylinder |
|
Rated Power(kW) |
44.1 |
|
Rated Revolution(r/min) |
2300/2400 |
|
Start Way |
Electricity Start |
|
Transmission |
(4+1)×2 shifts |
|
Hydraulic Valves |
2 Pairs |
|
Clutch |
Single chip, Dry friction |
|
PTO Speed |
6 spline 540/720 |
