Quick Details
-
Application:
-
Retaining Walls, slope protection, road construction
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vegas
-
Model Number:
-
HDPE Geocell
-
Product Name:
-
HDPE Geocell
-
Raw Material:
-
HDPE
-
Color:
-
Black, green, yellow
-
Thickness:
-
1.1mm or 1.5mm
-
Surface:
-
smooth or textured
-
Height:
-
50mm-200mm
-
Welding space:
-
330mm-900mm
-
MOQ:
-
1000sqm
-
Package:
-
Pallet
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other, NONE
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Retaining Walls, slope protection, road construction
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Vegas
-
Model Number:
-
HDPE Geocell
-
Product Name:
-
HDPE Geocell
-
Raw Material:
-
HDPE
-
Color:
-
Black, green, yellow
-
Thickness:
-
1.1mm or 1.5mm
-
Surface:
-
smooth or textured
-
Height:
-
50mm-200mm
-
Welding space:
-
330mm-900mm
-
MOQ:
-
1000sqm
-
Package:
-
Pallet
Product Description
Vegas Smooth Textured Plastic HDPE Geocell Ground Gravel Grid for Slope Road Retaining Wall Driveway Geocell Price
Vegas
Geocell is reinforced by high intensity HDPE broadband, after the powerful welding face to become a reticular lattice room structure. It retractile,transportation can shrink fold super to,when using ,open and filling earth-rock,or concrete materials,constitute has strong lateral restrictions and taking degrees structures ,it can be used as a cushion,dealing with weak foundation bearing capacity , also can be laid on slope surface slope protection structure constitute, still can be used to build retaining structures,etc.
It is used for base stabilization, but also for erosion control of slopes and channels as well as in construction of retaining walls.
|
Cell depth
|
50mm,100mm,150mm,200mm,250mm
|
|
Welding space
|
330mm~1600mm
|
|
Thickness
|
1.0mm~1.2mm for smooth, 1.5mm~1.7mm for textured
|
Features:
1)Light material, resistant to wear, stable in chemical properties, anti-aging, resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.
2)High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance the supporting ability and scattered load function of roadbed.
3)High carrying capacity and good dynamic performance and high erosion ability
4)The geometry size can be changed to meet different needs of the project, such as height and welding distance.
2)High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance the supporting ability and scattered load function of roadbed.
3)High carrying capacity and good dynamic performance and high erosion ability
4)The geometry size can be changed to meet different needs of the project, such as height and welding distance.
5)Retractable and small loading volume, convenient joint, speed construction.
6)Local material can be used during construction, reduce the construction cost, easy to be transported after folding together.
6)Local material can be used during construction, reduce the construction cost, easy to be transported after folding together.
Application
Road Construction
Geocell is a confinement system that performs better than conventional crushed stone sections, and it provides an expedient construction technique for access roads over soft ground without being adversely affected by wet weather conditions. It can also be used to strengthen paved areas.
Slope Reinforcement

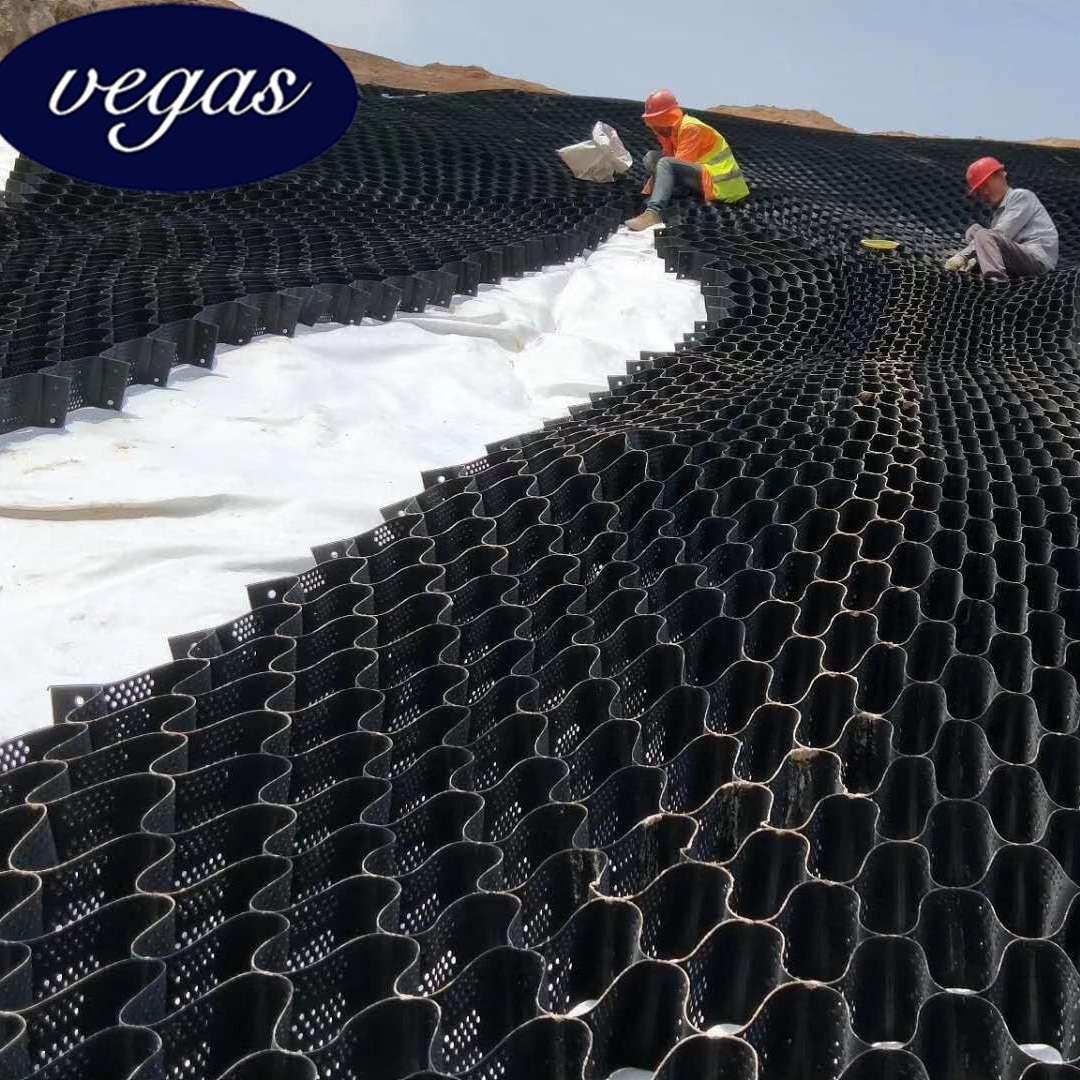

Geocell can be filled with angular rock, concrete or with vegetated soil. The cells confine the infill material, creating a stable layer protecting the slope from erosion. GeoCell is a flexible system that will contour to the sub-grade of a slope, reducing preparation time. When filled with vegetated soil or rock, the system is permeable - reducing water runoff.
Channel Protection
GeoCell can be installed on slopes as steep as 50-60 degrees and on channels with flow velocities greater than 7.6 m/s, depending on infill materials.
Retaining Wall
Geocell can be used for both cut and fill applications on retaining walls. The flexible HDPE panels are custom made to the front to back dimensions required by the project engineer. GeoCell can be easily installed around curves, pipes or other structures. The panels are constructed with the front facing strip colored green or tan to blend in with the surroundings. GeoCell panels can be stacked to create a 90 degree wall, or they can be stair stepped at every layer to create exposed cell for vegetation.
Packing&Shipping
Company Introduction
Shandong Vegas Engineering Materials Co., Ltd is a professional manufacturer in all kindsof geosynthetics in China. vegas owns the domestic advanced automatic production lines and the quality inspection testing equipments. All the products designed and manufactured by our company meet the national standards.With 30 years experience in manufacturing all kinds plastic products, we are specialized in producing excellent HDPE geocell, HDPE/LDPE geomembrane, PP woven geotextile, non-woven geotextile as well as other product used in building materials which are mainly used in the foundation construction. Most our products are exported to more than 60 countries, such as Australia, Brazil, Russia, South Korea, Japan, Southeast Asia, North American, Europe, etc.
