Quick Details
-
Brand Name:
-
Minghong
-
Model Number:
-
QPM11-NO
-
Max. Current:
-
0.5A
-
Max. Working Pressure:
-
10bar
-
IP level:
-
ip54
-
Product name:
-
12V DC air pressure switch
-
Type:
-
adjustable
-
Pressure Range:
-
0.1-1.0MPA
-
Rated voltage:
-
220/240V
-
Rated current:
-
0.5A
-
Protection rating:
-
IP54
-
Max power:
-
250W
-
Application:
-
pressure control
-
Connection:
-
enternal thread
-
Thread:
-
1/4 and 1/8
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Minghong
-
Model Number:
-
QPM11-NO
-
Max. Current:
-
0.5A
-
Max. Working Pressure:
-
10bar
-
IP level:
-
ip54
-
Product name:
-
12V DC air pressure switch
-
Type:
-
adjustable
-
Pressure Range:
-
0.1-1.0MPA
-
Rated voltage:
-
220/240V
-
Rated current:
-
0.5A
-
Protection rating:
-
IP54
-
Max power:
-
250W
-
Application:
-
pressure control
-
Connection:
-
enternal thread
-
Thread:
-
1/4 and 1/8
Product Description
| Model: | QPM11-NC QPM11-NO mechanical adjustable diaphragm type pressure switch |
| Medium: | air, |
| Working Form: | Pressure Adjustable |
| Installation Connection: | external thread, other type thread can be customized |
| Connection: | PT1/8, PT1/4, G1/4, G1/8, others can customized |
| Pressure range: | 0.1-1.0 MPA (1-10Bar) |
| Work voltage: | 220V/AC,110V/AC,24V/DC,12V/DC |
| Maximum power: | 4VA, 100VA |
| Insulation voltage: | 500V, 1500V |
| Rated working current: | 500mA |
| Work tempertature range: | 5-60 degree |
| Max pulse count: | 200T/min |
| Service life: | 100 millions cycles |
| Protection class: | IP54 |
NC: normal closed, when air pressure up to a control level, the circuit break;
NO: normal open, when air pressure up to a control level, the circuit connect;

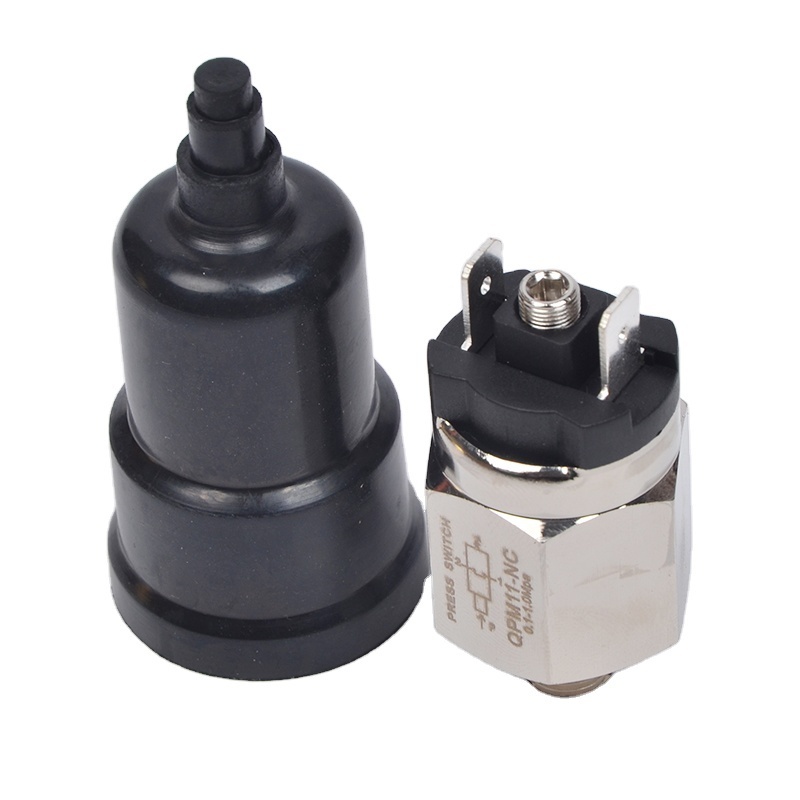

Detailed Images
