Quick Details
-
Brand Name:
-
Hengtong
-
Dimension(L*W*H):
-
6700*1020*2700 mm
-
Weight:
-
2140 KG
-
The Machines classification:
-
Metal Hammer Crusher Scrap Metal Crushing Machine for mining use
-
Spare parts supply:
-
Anytime
-
Installation:
-
Guide
-
Applicaton:
-
Stone Process
-
Motor:
-
Chinese Famous Brand
-
Output size:
-
less than 5 mm
-
Product name:
-
stone crusher machine mini mobile gold ore rock hammer mill crusher
-
Keyword:
-
Hammer mill crusher
-
Name:
-
Mining Hammer Crusher
-
VOLTAGE:
-
380V Three-phase 50Hz(can be adjust)
Quick Details
-
Application:
-
Coal, salt, chalk, gypsum, brick, limestone, etc.
-
Capacity(t/h):
-
20t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hengtong
-
Dimension(L*W*H):
-
6700*1020*2700 mm
-
Weight:
-
2140 KG
-
The Machines classification:
-
Metal Hammer Crusher Scrap Metal Crushing Machine for mining use
-
Spare parts supply:
-
Anytime
-
Installation:
-
Guide
-
Applicaton:
-
Stone Process
-
Motor:
-
Chinese Famous Brand
-
Output size:
-
less than 5 mm
-
Product name:
-
stone crusher machine mini mobile gold ore rock hammer mill crusher
-
Keyword:
-
Hammer mill crusher
-
Name:
-
Mining Hammer Crusher
-
VOLTAGE:
-
380V Three-phase 50Hz(can be adjust)
Product Description

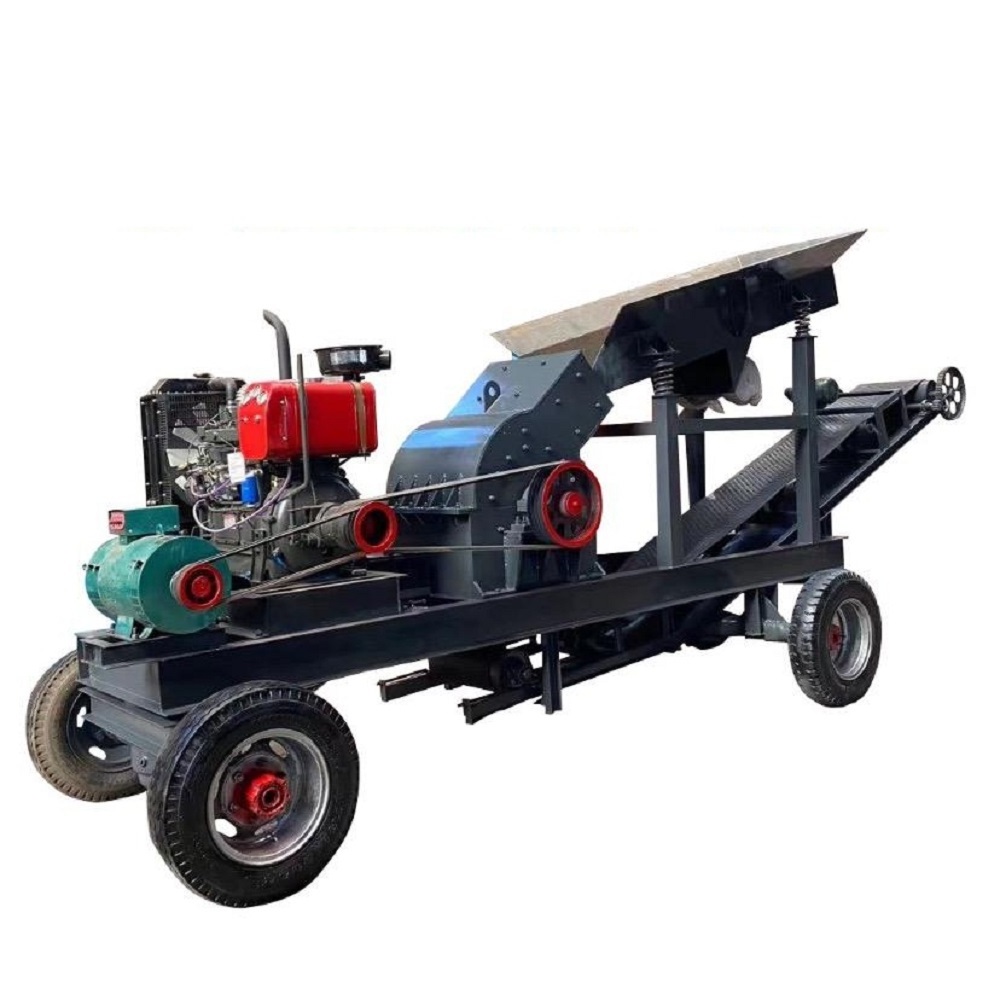

20t 400*600 mobile crusher hammer mill machine mining gold ore crusher price, portable rock crusher hammer stone crushing plant
Hammer crusher can beat coal gangue, shale, weathered rock, construction waste, animal manure and other materials. There are manganese steel swing hammer inside, which can be replaced by alloy hammer according to customer requirements. After entering the silo, the material is broken by the high-speed rotation of the hammer head, and the material enters the narrow space between the hammer head and the lining plate, so that the material is broken again, and finally the crushed material flows out through the bottom screen. Very suitable for home use or crushing plant, gravel plant. Support customization.
Product Paramenters
|
Type
|
Capacity (t/h)
|
Motor power (kw)
|
Total weight (t)
|
Dimensions (L*W*H)(mm)
|
|
200*300
|
1-3
|
4 pole 5.5kw
|
0.15
|
500*510*640
|
|
240*450
|
3-5
|
4 pole 7.5kw
|
0.35
|
720*650*840
|
|
310*520
|
7-8
|
4 pole 15kw
|
0.55
|
800*850*910
|
|
400*600
|
10-15
|
4 pole 22kw
|
0.9
|
910*1020*1100
|
|
600*600
|
15-20
|
4 pole 30kw
|
1.3
|
910*1150*1100
|
|
600*800
|
20-30
|
4 pole 55kw
|
2
|
1130*1330*1430
|
|
800*800
|
25-35
|
4 pole 75kw
|
2.5
|
1140*1460*1440
|
|
800*1000
|
30-40
|
4 pole 90kw
|
3.5
|
1500*1500*1700
|
|
1000*1000
|
40-50
|
4 pole 110kw
|
4
|
1500*1700*1500
|
Product Advantage
According to the different needs of different customers, the discharging particle size of 3-30mm can be adjusted.
We will recommend the most suitable machine according to your raw materials, the size of raw materials, the expected discharge size and the hourly output.
Details Images
Feature of hammer crusher
1. Advanced design technology, strong structure and impact resistance.
2. The feed size is large, the yield is high, and the grain shape is good.
3. Super crushing, coarse, medium and fine crushing in one step.
4. The year-on-year output has increased by 30%, which is more energy-efficient.
5. The hammer head and sieve plate are made of chromium-manganese alloy material, which has stronger impact resistance and wear resistance.
