Applicable to the scope:
web, insulating paper,release paper,kraftpaper,barley paper, printing paper, label paper,wallpaper,
double-sided adhesive tape, PVC film, PET film, heat shrinkable film, OPP film,insulating film,Bubble film,EVA foam, non-woven fabric, knitted, PU artificial leather, cowhide, copper foil,aluminum foil, wire mesh, etc.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MILES
-
Voltage:
-
220V, 220V/110V
-
Dimension(L*W*H):
-
1600*700*650mm
-
Weight:
-
330 kg
-
Name:
-
MILES
-
Product name:
-
Fully Automatic Cutting Machine
-
Model:
-
MT-1200G
-
Max cutting width:
-
1200mm
-
Cutting speed:
-
30-120 pcs/min
-
Cutting Precision:
-
0.1mm
-
Max Cutting length:
-
1-9999mm
-
weight:
-
330kg
-
Size:
-
1600*700*650mm
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
40-80m/min
-
Max. workable width:
-
1200mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MILES
-
Voltage:
-
220V, 220V/110V
-
Dimension(L*W*H):
-
1600*700*650mm
-
Weight:
-
330 kg
-
Name:
-
MILES
-
Product name:
-
Fully Automatic Cutting Machine
-
Model:
-
MT-1200G
-
Max cutting width:
-
1200mm
-
Cutting speed:
-
30-120 pcs/min
-
Cutting Precision:
-
0.1mm
-
Max Cutting length:
-
1-9999mm
-
weight:
-
330kg
-
Size:
-
1600*700*650mm
Product Description
MILES

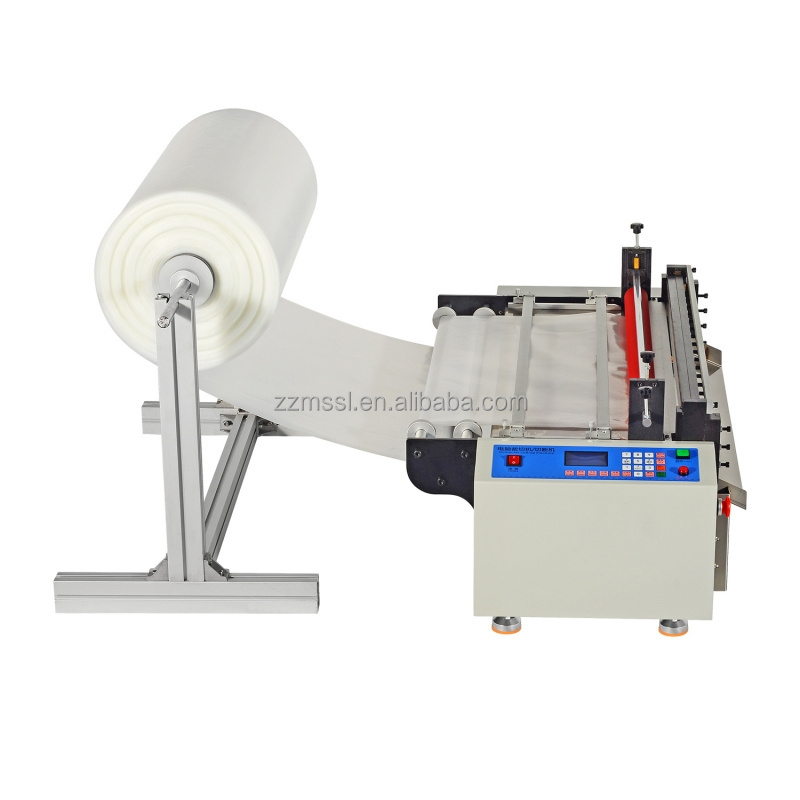

non-woven slitting circular knife integrated cutting machine
.
Full Chinese/English one-key switch, LCD display. Batch pause and time can be set.
Specification
|
Model
|
MT-300G/400G/500G/600G/800G/1000G/1200G/1300G/1500G/1600G/1800G/2100G
|
|
Max cutting width
|
300/400/500/600/800/1000/1200/1300/1500/1600/1800/2100mm
|
|
Cutting length
|
1-9999mm adjustable
|
|
Cutting precision
|
0.1mm
|
|
Cutting speed
|
30-120 pcs/min
|
|
Voltage
|
220V/110V,50/60hz, Ac
|
|
Language
|
Chinese and English (Spanish is Optional)
|
|
Package
|
Wooden case/Carton
|
|
Optional
|
Electronic eye, Knife slitting group, Round blades slitting group, Spring.Static Eliminator
|
|
Power
|
780W
|
|
Voltage
|
220V/110V,50/60hz, Ac
|
Features:
* High speed: It can cut 100~120 cut per minute. (1200mm long)
* Accuracy: Cut-length is accurate to a stepping motor
* Cutting type: Cutting is neat due to using a cold cutter which is durable.
* Automatic operation: It works auto only by setting length and quantity
* Automatic stopper: It stops auto if materials run out during operation
* Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on
* Application: Weave belt, nylon buckle, lining and don't need to heat the sealing ribbon, plastic zippers, shoes webbing, etc.
* Feature: Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.
* High speed: It can cut 100~120 cut per minute. (1200mm long)
* Accuracy: Cut-length is accurate to a stepping motor
* Cutting type: Cutting is neat due to using a cold cutter which is durable.
* Automatic operation: It works auto only by setting length and quantity
* Automatic stopper: It stops auto if materials run out during operation
* Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on
* Application: Weave belt, nylon buckle, lining and don't need to heat the sealing ribbon, plastic zippers, shoes webbing, etc.
* Feature: Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.
Details Images
Control Panel
Chinese and English one-key switch.
LCD screen, intuitive English/Chinese display
Simple and convenient operation.
Spring Device is Optional
Plastic and Metal Spring is optional.
Flatten and straighten the material.
Prevent wrinkles and
cutting precision.
Round Slitting Blades Group
It is for some paper,PVC film, PU leather, wallpaper, felt,aluminum foil, kraft paper, canvas and so on.
Round Slitting Blades Group
3 pieces/Group or more.It is optional.
Powerful, durable, easy to adjust and operate.
Matsushita Electronic Eye
Fully automatic location tracking.
Positioning and cutting, higher accuracy.
Matsushita Electronic Eye
Printed eva soft film, Adhesive sticker, Tablecloth
Insulation paper wallpaper, Heat transfer film, etc.
Equips With The Stacking Table
The stacking table can collect the pieces/sheet of paper/non woven fabric/canvas, PU artificial leather, wallpaper, aluminum foil, etc. Loading is up to 50 kg.
The position of the baffle can be adjusted.
Automatic Feeding System
Tension System, Sensor High-sensitivity
photoelectric sensor cooperates with motor
to automatically sense pre-feeding material.
Speed controller. Adjust the speed at any time.
Knife Blade Slitting Group
Knife slitting group for thin materials, such as plastic film, cloth, pearl cotton, EVA foam,bubble film and so on.
Knife Blade Slitting Group
5 pieces/Group or more.It is optional.
The slitting
knives
can work alone.
Memory function:
Yes
Counting function:
Yes
Stacking unit is
optional.
Slitting unit is
optional.
Full Chinese/English one-key switch, LCD display.
High-power feeding motor, automatic and manual free switching, convenient and simple operation.
Can be cut in double rows or multiple at the same time, the length and speed are continuously adjustable.
The minimum precision of microcomputer program control is 0.1mm.
Batch pause and time can be set.
The cut section is flat and the length is accurate.
The high-power stepping motor precisely controls the cutting length; the belt length and speed are adjustable.
Total number setting; section and batch setting; section pause time adjustable.
Large LCD screen, intuitive Chinese display, simple and convenient operation.
Automatic accumulation and total setting, accumulation count.
The use of special mechanical structure and thickened knife, coupled with special software control, solves the problem of uneven cut surfaces of other manufacturers' materials.
