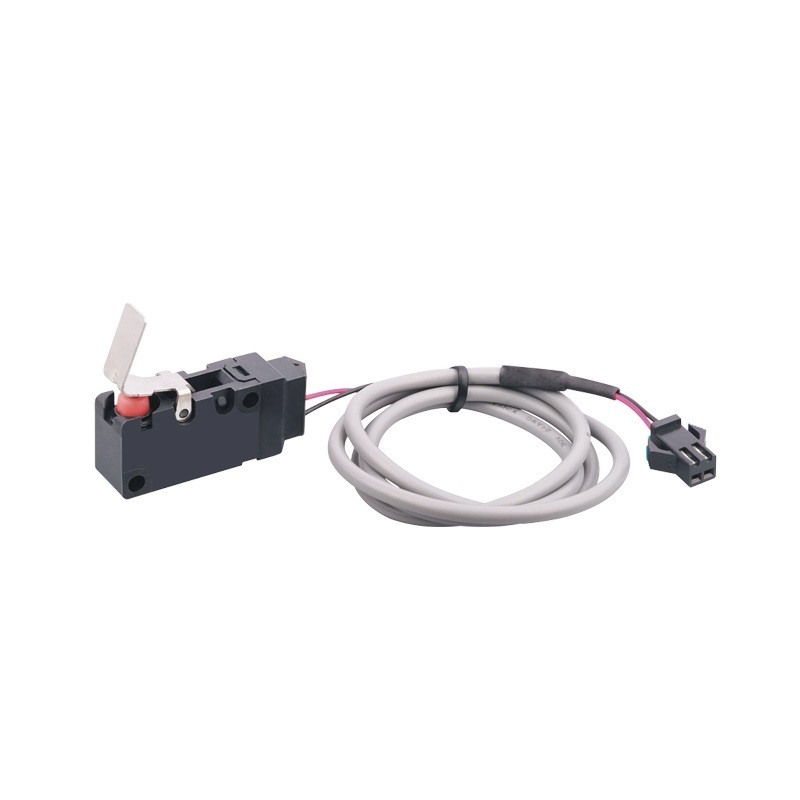

Waterproof Micro Switch IP67 Sealed Car Door Switch for Auto Electronics and Home Appliances

Waterproof Micro Switch IP67 Sealed Car Door Switch for Auto Electronics and Home Appliances

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $2.4

Free Inquiry

Customized Request

Explore More Products

Automotive Plastic Waterproof Isolator Modern Electronics Smart Home Light Switch

$ 4.1

Wholesale Price Home Office Waterproof Isolator Push Button Switch For Indoor

$ 4.1

China Wholesale Waterproof Hotel Brass Modern Electrical Switch For Home

$ 4.1

Eu Standard Home Use Electrical Light Remote Control Switch For Fan And Light

$ 4.1

Product Details

{{item.text}}

Quick Details

Model Number:: MAA Waterproof Series

Max. Current:: 10A

Operating Temperature:: -40~85°C

Protection Level:: IP67

IP level:: IP67

Rating Load:: 10A 125/250VAC 40T125 1E4&5E4 μ

Certification:: UL

Mechanical Life:: 100,000 times/Cycles Min

Material:: Brass

Lever:: Long

Initial Contact Resistance:: 100mΩ Max

Working Temperature:: 40T125

Electrical life:: 10000 Cycles

Operating Force (OF):: Optional ≥50gf Max

Electrical Life:: 10,000 times/Cycles Min

Quick Details

Max. Voltage:: 250VAC

Place of Origin:: Zhejiang, China

Brand Name:: IBAO

Model Number:: MAA Waterproof Series

Max. Current:: 10A

Operating Temperature:: -40~85°C

Protection Level:: IP67

IP level:: IP67

Rating Load:: 10A 125/250VAC 40T125 1E4&5E4 μ

Certification:: UL

Mechanical Life:: 100,000 times/Cycles Min

Material:: Brass

Lever:: Long

Initial Contact Resistance:: 100mΩ Max

Working Temperature:: 40T125

Electrical life:: 10000 Cycles

Operating Force (OF):: Optional ≥50gf Max

Electrical Life:: 10,000 times/Cycles Min

PARAMETERS
Rating		10(2)A 125/250VAC 40T125 μ 8(3)A 125/250VAC 40T125 5E4μ 5(3)A 125/250VAC 40T125 5E4 μ 10A 36VDC 40T125 5E4 μ
Contact Resistance		100mΩMAX(without wire type)
Operating Temperature		-40℃~+125℃
Service Life	Electrical	20,000(2E4) Cycles Min(Depend on Part NO)
	Mechanical	1,000,000 Cycles Min
