Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LLT
-
Model Number:
-
LLT-M25-35003F1051
-
Product name:
-

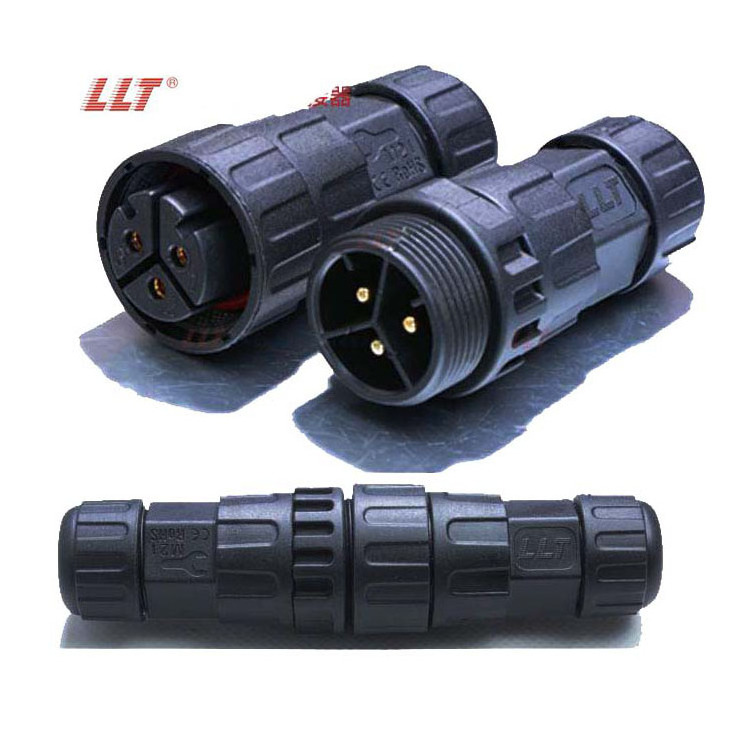

3 pin waterproof connector
-
Material (External)::
-
plastic NYLON PA66
-
Feature:
-
Assembly
-
Contactor Material:
-
brass with Gold Plated
-
Protector Level:
-
IP67 IP68 waterproof
-
Certifications:
-
CE ROHS SAA TUV
-
Connector type:
-
Circular Connector
-
Item:
-
soldering or screw fixed
-
Rated Voltage:
-
600V,35A
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Outdoor LED light, power and automotive
-
Gender:
-
Male female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LLT
-
Model Number:
-
LLT-M25-35003F1051
-
Product name:
-
3 pin waterproof connector
-
Material (External)::
-
plastic NYLON PA66
-
Feature:
-
Assembly
-
Contactor Material:
-
brass with Gold Plated
-
Protector Level:
-
IP67 IP68 waterproof
-
Certifications:
-
CE ROHS SAA TUV
-
Connector type:
-
Circular Connector
-
Item:
-
soldering or screw fixed
-
Rated Voltage:
-
600V,35A
Click below link you are interested in!
Related products
LLT IP67 Waterproof Plastic Nylon M25 3 Pin Assembly Thread Lock Solar Power Battery Charging Male Female Connector Plug
| 1 | Model No. | LLT-M25 3 pin power waterproof connector | |
| 2 | Material | Connector Body | Nylon(PA66)+GF 94V-0 1/16'' |
| 3 | Contact | Brass with Gold Plated | |
| 4 | Sealing | Silica Gel | |
| 5 | Property | Current Rating | 35AMP |
| 6 | Voltage Rating | 600V | |
| 7 | Contact Resistance | <10mΩ | |
| 8 | Insulation Resistance | 1000MΩ at DC 500V | |
| 9 | Breakdown Voltage | 1.5KV/1minute | |
| 10 | Temperature Rating | -45 °C~ +105 °C | |
| 11 | Durability(Plug/Unplug) | 3000 times | |
| 12 | Waterproof Rating | IP67 IP68 waterproof | |
| 13 | Cable Max. Diameter | 13mm(<=4mm2) | |
| 14 | Pins Range | 2, 3, 4, 5, 6, 7, 8, 9, 10,11,12,13,14,15,16,17,18,20,24 | |
| 15 | Certificate | CCC; CE; RoHS;SAA | |
