Quick Details
-
Brand Name:
-
JINYANGHU
-
Fork Length:
-
1150mm
-
Fork Width:
-
550MM
-
Overall Dimensions:
-
1150*550*1980MM
-
Core Components:
-
hydraulic oil cylinder
-
Type:
-
Manual Pallet Truck
-
After-sales Service Provided:
-
Overseas third-party support available, Online support
-
Color:
-
yellow
-
Loading Capacity:
-
1000-3000 (kg)
-
Model Number::
-
FD30
-
Fork size:
-
150/160x60 mm
-
Fork length:
-
900/1150
-
Fork width (adjustable/fixed:
-
330~740/550
-
Minimum height of mast:
-
1980 mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
CE
Quick Details
-
Min. Lifting Height:
-
85mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanxi, China, Shanxi, China (Mainland)
-
Brand Name:
-
JINYANGHU
-
Fork Length:
-
1150mm
-
Fork Width:
-
550MM
-
Overall Dimensions:
-
1150*550*1980MM
-
Core Components:
-
hydraulic oil cylinder
-
Type:
-
Manual Pallet Truck
-
After-sales Service Provided:
-
Overseas third-party support available, Online support
-
Color:
-
yellow
-
Loading Capacity:
-
1000-3000 (kg)
-
Model Number::
-
FD30
-
Fork size:
-
150/160x60 mm
-
Fork length:
-
900/1150
-
Fork width (adjustable/fixed:
-
330~740/550
-
Minimum height of mast:
-
1980 mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
CE

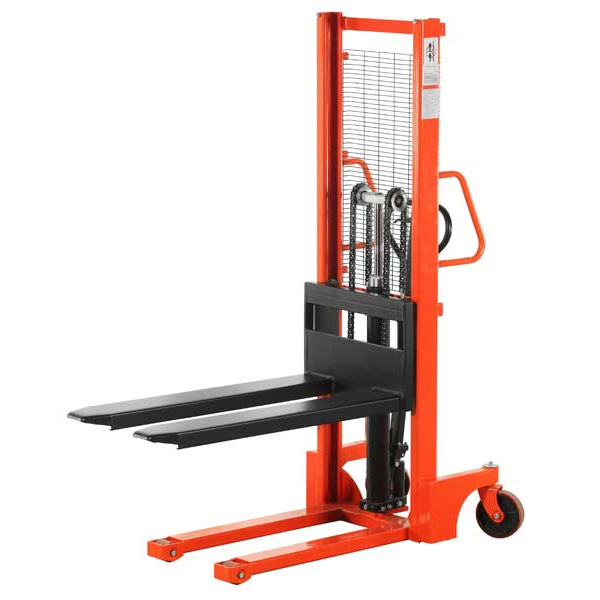

hydraulic hand pallet stacker 1 ton 1.5 ton 2 ton 2.5 ton 3 ton 3000mm lifting height
Hydraulic and Manual (winch type) Hand Pallet Stackers are ideal for raising and lowering loads up to 3000kg (3Tonne), most stackers are complete with forks and act in a similar way to forklifts, others feature load rated tables for positioning. Frequently utilised for lifting pallets, we also offer our 'straddle' leg models to enable picking of pallets right off the floor, stackers can also be used to lift other loads and we supply a variety of attachments from booms to cradles and lifting points.
| Model | YBL-1T | YBL-2T | YBL-3T |
| Rated carrying capacity | 1000 | 2000 | |
| Load center distance | 450 | 450 | |
| Minimum fork height | 90 | 90 | |
| Lifting height | 1600/2000/2500/3000 | 1600/2000/2500/3000/3500 | 1600/2000/2500 |
| Body length | 1470 | 1470 | 1480 |
| Body width | 700 | 700 | 700 |
| Body height | 1400/1600/1850/2100 | 1400/1600/1850/2100/2350 | 1400/1600/1850 |
| Fork size | 90*4.5 | 120*5.75 | 150*7.75 |
| Fork length | 900 | 900 | 900 |
| Fork adjustment width | 200-730 | 260-740 | 320-770 |
| Turning radius | 1040 | 1050 | 1085 |
Characteristic
1. The "C"-shaped steel door frame made by special rolling process is selected and connected by all-welding technology, which is sturdy and durable, and the overall structure will never be deformed.
2. The manual pedal can replace the lifting function of the operation, which is not easy to be fatigued and improves work efficiency
3. Masts and forks are available in a variety of styles, suitable for various venues and pallet stacking.
4. When the oil circuit is accidentally ruptured, the explosion-proof valve will block the hydraulic oil circuit, so that the fork stays at a fixed height and will not drop quickly, effectively ensuring the safety of goods and personnel
Customizable specifications: outer width and length of support leg; outer width and length of fork
Optional: Forged forks, covered forks, fixed forks
