Quick Details
-
Dimension(L*W*H):
-
1212*500*580
-
Year:
-
new
-
Power (kW):
-
6.3 kW
-
Weight (KG):
-
255 KG
-
Equipment Model:
-
QK-PD-255
-
Tape width:
-
650mm
-
Power:
-
3.15kw*2
-
Hot plate current:
-
4.8A
-
Vulcanising temperature:
-
145±5℃
-
Rising time:
-
≤30min
-
Vulcanising pressure:
-
1-2Mpa
-
Frame size:
-
1030*165mm
-
Dimension of the whole machine:
-
1212*500*580
Quick Details
-
Place of Origin:
-
Shandong,China
-
Brand Name:
-
QK
-
Voltage:
-
380v, 380v
-
Dimension(L*W*H):
-
1212*500*580
-
Year:
-
new
-
Power (kW):
-
6.3 kW
-
Weight (KG):
-
255 KG
-
Equipment Model:
-
QK-PD-255
-
Tape width:
-
650mm
-
Power:
-
3.15kw*2
-
Hot plate current:
-
4.8A
-
Vulcanising temperature:
-
145±5℃
-
Rising time:
-
≤30min
-
Vulcanising pressure:
-
1-2Mpa
-
Frame size:
-
1030*165mm
-
Dimension of the whole machine:
-
1212*500*580
Product Description

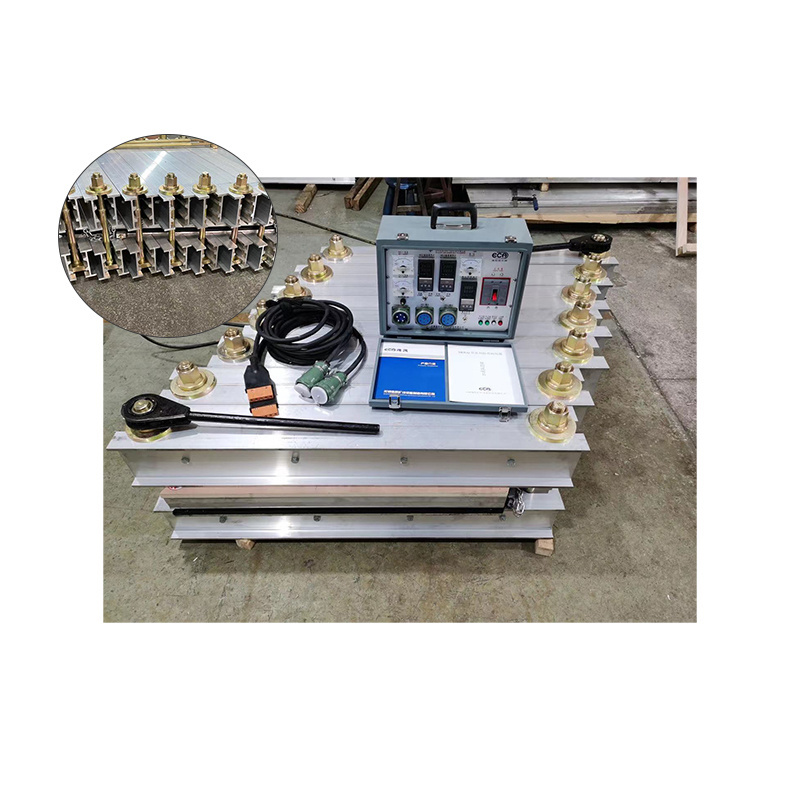

Electric tape vulcaniser for belt joints Conveyor belt Vulcanising equipment Film slurry vulcanising machine
Belt vulcanising machine, also known as electrically heated belt vulcanising machine, is the vulcanising equipment for conveyor belt. The machine is made of lightweight aluminium alloy material, which has the features of small volume, light weight of single piece, easy disassembling and assembling, and suitable for manpower moving. At the same time, it has the characteristics of fast heating, even temperature, high thermal efficiency, etc. It is a kind of rubber belt jointing equipment for rubber belt joints of conveyor machinery.
The vulcanising machine is small in size and light in weight, powered by ordinary three-phase power supply, with even temperature of hot plate, even pressure supplied by water pressure system (1-2mpa), equipped with light and fully-automatic electric control box, and the connection between the electric control box and the main machine is completed by integrated plug-in and multi-core cable, which is convenient in operation and reliable in work.
Our vulcanising machine is widely used in metallurgy, mining, power plant port, building materials, chemical industry and other non-explosive gases around and enough to corrode the metal of the harmful gas occasions of the canvas, nylon, steel rope core transport tape on-site vulcanising adhesive joints, but also for anti-corrosion and heat-resistant and other special properties of the tape vulcanisation joints. As long as there is an ordinary tap water source at the site, the equipment can be used to rapidly cool the heating plate with water after the vulcanisation is completed. Both can greatly improve the efficiency and can improve the quality of the tape joints, generally from the vulcanisation temperature cooling to 60 ℃, 20 minutes can be, cooling water pressure ≥ 0.2mpa.
Product Paramenters
|
Equipment Model
|
QK-PD-255
|
|
Tape width
|
650mm
|
|
Power
|
3.15kw*2
|
|
Voltage
|
380v
|
|
Hot plate current
|
4.8A
|
|
Vulcanising temperature
|
145±5℃
|
|
Rising time
|
≤30min
|
|
Vulcanising pressure
|
1-2Mpa
|
|
Frame size
|
1030*165mm
|
|
Dimension of the whole machine
|
1212*500*580
|
|
Weight
|
255kg
|
