Quick Details
-
Marketing Type:
-
New Product 2024
-
Core Components:
-
laser sources, laser heads, control systems
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JOBON
-
Dimension(L*W*H):
-
35*15*25cm
-
Year:
-
2024
-
Weight (KG):
-
12 KG
-
Product name:
-

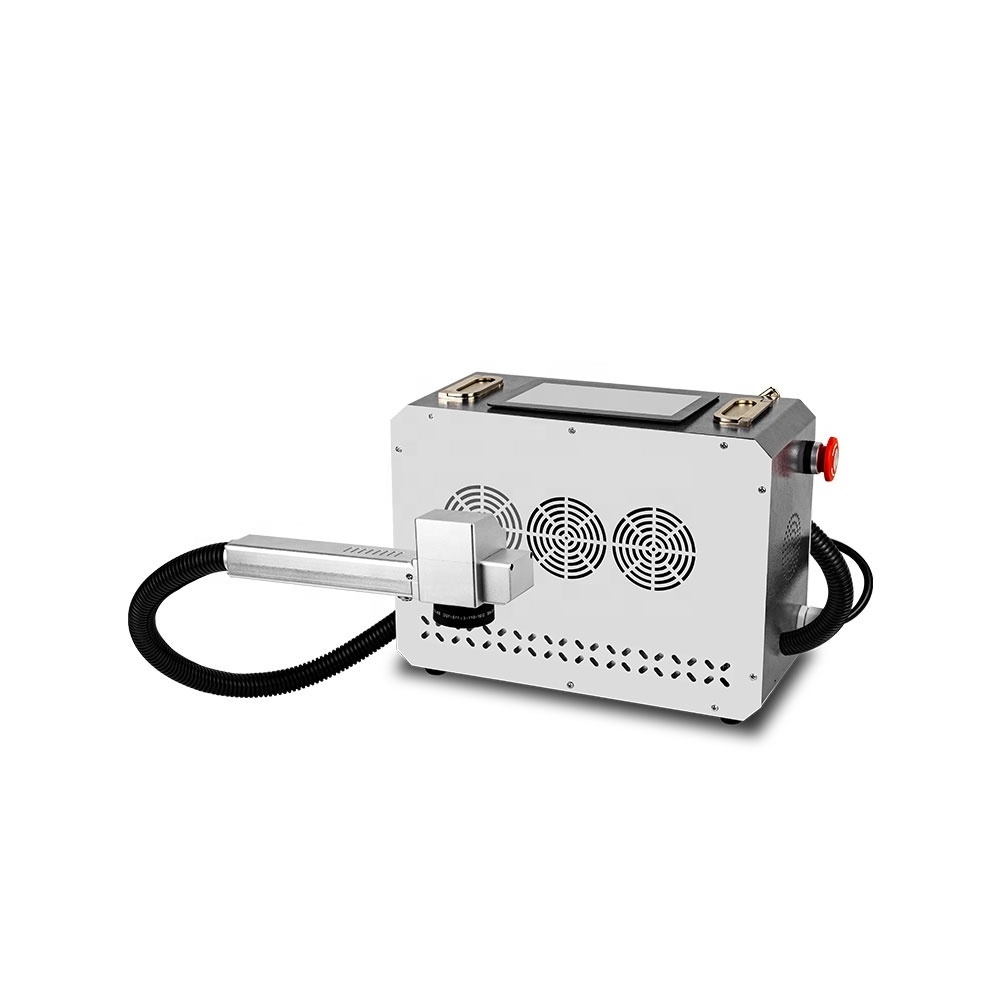

Pulse Laser Cleaning Machine
-
Laser power:
-
50w 100w 200w 300w 500w
-
Pulse frequency range:
-
20KHz-200KHz
-
Laser source:
-
MAX/JPT
-
Maximum pulse energy:
-
1.5mj
-
Laser wavelength:
-
1060-1070nm
-
Cooling Mode:
-
Air Cooling
-
Energy consumption:
-
<800W
-
Working environment:
-
10~40°C
-
Working voltage:
-
AC220V/110V; 50Hz/60Hz (option)
Quick Details
-
Power:
-
100W
-
Laser Type:
-
Pulse
-
Laser Source Brand:
-
MAX
-
Marketing Type:
-
New Product 2024
-
Core Components:
-
laser sources, laser heads, control systems
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JOBON
-
Dimension(L*W*H):
-
35*15*25cm
-
Year:
-
2024
-
Weight (KG):
-
12 KG
-
Product name:
-
Pulse Laser Cleaning Machine
-
Laser power:
-
50w 100w 200w 300w 500w
-
Pulse frequency range:
-
20KHz-200KHz
-
Laser source:
-
MAX/JPT
-
Maximum pulse energy:
-
1.5mj
-
Laser wavelength:
-
1060-1070nm
-
Cooling Mode:
-
Air Cooling
-
Energy consumption:
-
<800W
-
Working environment:
-
10~40°C
-
Working voltage:
-
AC220V/110V; 50Hz/60Hz (option)
|
Model
|
ZB-MC100W
|
ZB-MC200W
|
ZB-MC300W
|
|
Max average power(W)
|
100W
|
200W
|
300W
|
|
Laser wavelength
|
1064nm
|
1070nm
|
1070nm
|
|
Power Adjustment Range
|
10%- 100%
|
10%- 100%
|
10%- 100%
|
|
Frequency Adjustment Range
|
1-4000HZ
|
1-4000HZ
|
1-4000HZ
|
|
Bandwidth( nm)
|
5
|
5
|
5
|
|
Max pulse energy(mJ)
|
1.5
|
1.8
|
1.8
|
|
Pulse repetition rate(kHz)
|
20-200
|
20-200
|
20-200
|
|
Pulse width(ns)
|
0-500ns
|
0-500ns
|
0-500ns
|
|
Fiber Length
|
5Meters (Customized)
|
5Meters (Customized)
|
5Meters (Customized)
|
|
Cleaning focal length
|
F=200mm
|
F=200mm
|
F=200mm
|
|
Cleaning Mode
|
6
|
6
|
6
|
|
Beam quality(M2)
|
1.6
|
1.6
|
1.6
|
|
Output Power Instability
|
＜5%
|
＜5%
|
＜5%
|
|
Cooling Method
|
Air cooling
|
Air cooling
|
Air cooling
|
|
System power
|
110/220V
|
110/220V
|
110/220V
|
|
Power Consumption(W)
|
550
|
1300
|
|
|
Operating temperature( ℃)
|
10-40
|
10-40
|
10-40
|
|
Storage temperature( C)
|
-10-60
|
-10-60
|
-10-60
|
|
Relative humidity(%)
|
＜80
|
＜80
|
＜80
|
|
Support Languages
|
12 kinds languages
|
12 kinds languages
|
12 kinds languages
|
|
Package
|
67*51*92(cm)
|
67*51*92(cm)
|
67*51*92(cm)
|
|
Weight
|
65KG
|
65KG
|
65KG
|
|
Laser head weight
|
0.7KG
|
0.7KG
|
0.7KG
|
|
Laser head type
|
2D scanning
|
2D scanning
|
2D scanning
|
