Quick Details
-
Input frequency:
-
2500-2700MHZ(200typs can be selected)
-
Name:
-
1838MHZ MMDS Downconverter Transmitter and Receiver
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
BOTE
-
Model Number:
-
BT-281
-
Input frequency:
-
2500-2700MHZ(200typs can be selected)
-
Name:
-
1838MHZ MMDS Downconverter Transmitter and Receiver

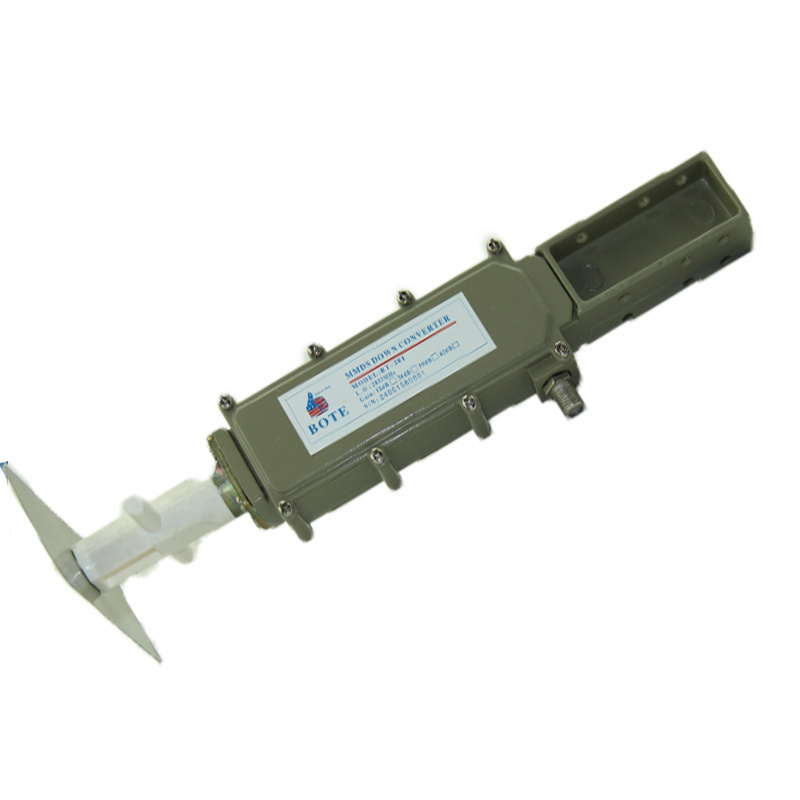

1838MHz MMDS downconverter for capturing 2.5-2.7GHz signals on RTL-SDR
|
Input Frequency |
2100-2300Mhz,2200-2400Mhz,2300-2500Mhz, 2 5 00 to 2 7 00MHz ,2700-2900Mhz (can choose) |
|
Noise Figure |
2.5dB@24dB , 1.8dB@32dB , 1.4dB@36dB
|
|
Image Rejection |
≥50dB |
|
VSWR |
1.5:1 |
|
If Rejection |
≥80dB |
|
PCS Rejection |
≥100dB |
|
WCS Rejection |
≥50dB |
|
3 order intermodulation |
≤-50dB |
|
Conversion Gain |
24dB±1.5dB,32dB±1.5dB,36dB±1.5dB . 3 9 dB±1.5dB |
|
L.O. Leakage Antenna Port |
≤-85dBm |
|
L.O. Leakage IF-Port |
≤-50dBm |
|
L.O. Phase Noise |
-80dBc@100Hz offset -92dBc@1kHz offset -93dBc@10kHz offset -95dBc@100kHz offset -120dBc@1MHz offset |
|
Output P1dB |
+14dBm(typical) |
|
Gain Flatness Over Entire Range |
≤±1.5dB |
|
Gain Flatness |
≤0.2dB/CHANNEL |
|
IF Output Impedance |
75ohms |
|
DC Current Consumption |
14v-24v |
|
DC Input voltage |
14v-24v |
|
Spurious in IF Band |
≤-100dBm |
|
L.O. Frequency |
1838,1998,,2030,2033,2278,
|
|
L.O. Stability |
≤±30KHz |
|
Operating Temperature |
-40 centigrade to +70 centigrade |
