Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Kaiyuan
-
Model Number:
-
XBD fire pump
-
Place of Origin:
-
Shanghai, China
-
Cable Length:
-
As customer request
-
Outlet Size:
-
As customer request
-
Power:
-
As customer request
-
motor:
-
As customer request
-
Standard or Nonstandard:
-
Standard
-
Category:
-
Water Pump
-
Pressure range:
-
0.1--1Mpa
-
Fitted Motor Power:
-
0.7---160KW
-
Inlet/Outlet caliber:
-
DN25--DN200mm
-
Medium:
-
fresh water or water similar liquids
-
National Standard:
-
GB6245-2006
-
Certificate:
-
ISO9001
-
Main usage:
-
fire fighting water boost, mining water drainage
Quick Details
-
Application:
-
Other, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Utilities, Irrigation and Agriculture, Raw Water Intake, Wastewater Transport and Flood Control
-
Pressure:
-
High Pressure
-
Voltage:
-
As customer request
-
Warranty:
-
1 year
-
Brand Name:
-
Kaiyuan
-
Model Number:
-
XBD fire pump
-
Place of Origin:
-
Shanghai, China
-
Cable Length:
-
As customer request
-
Outlet Size:
-
As customer request
-
Power:
-
As customer request
-
motor:
-
As customer request
-
Standard or Nonstandard:
-
Standard
-
Category:
-
Water Pump
-
Pressure range:
-
0.1--1Mpa
-
Fitted Motor Power:
-
0.7---160KW
-
Inlet/Outlet caliber:
-
DN25--DN200mm
-
Medium:
-
fresh water or water similar liquids
-
National Standard:
-
GB6245-2006
-
Certificate:
-
ISO9001
-
Main usage:
-
fire fighting water boost, mining water drainage

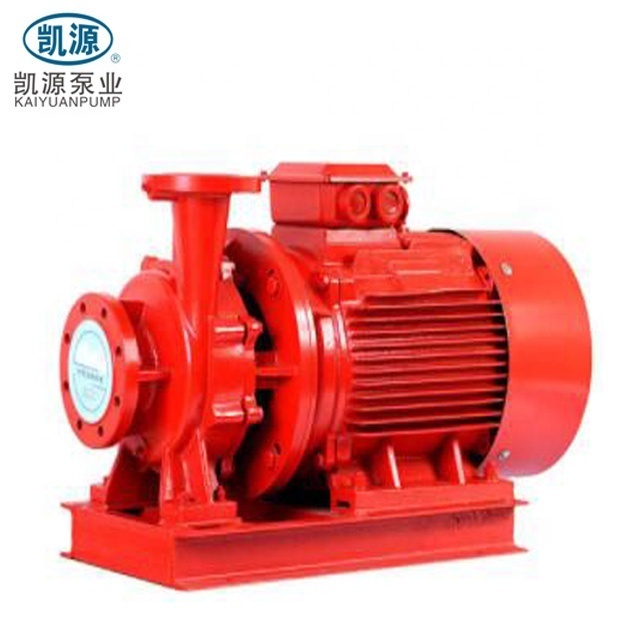

Shanghai Kaiyuan XBD Centrifugal Water pump, fire water pump, fire pump
♦ Centrifugal water pump
♦ Fire pump for fire system
♦ Single-stage / Multi-stage pump
♦ Electric motor driven pump
♦ Vertical / Horizontal fire pump
XBD-L: VERTICAL SINGLE-STAGE CENTRIFUGAL WATER PUMP
XBD-DL: VERTICAL MULTISTAGE CENTRIFUGAL WATER PUMP
XBD-I: VERTICAL MULTISTAGE CENTRIFUGAL WATER PUMP (STAINLESS STEEL)
XBD-HY: HORIZONTAL CONSTANT PRESSURE CENTRIFUGAL WATER PUMP
XBD-W: HORIZONTAL MULTISTAGE CENTRIFUGAL WATER PUMP
XBC: DIESEL ENGINECENTRIFUGAL WATER PUMP
***
XBD-L vertical single stage fire pump is used to deliver non-grain clean water and fluids similar with water in physiochemical property. It is mainly used for pressuring water supply in fire system; also it can be used for water drainage in factories and mines.
|
The flow range |
5~140L/S, |
|
pressure range |
0.31~1.5Mpa, |
|
motor power range |
0.75~160KW, |
|
inlet/outlet caliber |
DN25-DN200mm |
Features:
1, It is low cost with attractive outlook. Its vertical structure guarantees that it is less space demand, and the gravity point is in the center of the pump legs, which improves the performance more smooth and longer service life.
2, The suction inlet and the discharge opening are at the same level, which simplifies the installation of the pipelines.
3, The pump head range can be changed by cutting the pump impeller to meet the special needs. There is no need to change the installation area, as easier as the KYL.
***
XBD-W fire pump is of horizontal, single-suction, Single-stage and multi-sectional, which is a newly developed energy-saving pump. Its performance parameter and technique norms meet the national standard on the fire pump. This new pump can run more efficiently, with less noise, longer life.
XBD-W series are with 5 models of 40 specific types.
Rating flow: 5-40L/s
Pressure range: 0.18-2.0MPa
Fitted Motor Power: 2.2-180KW
Inlet/outlet caliber: DN50-DN150mm
***
XBD-DL Multi-stage fire pump is vertical, single suction, multistage centrifugal pump, used to deliver non-particles clean water and fluids similar with water in physiochemical property. It is mainly used for pressuring water supply in fire system, also it can be used for water drainage in factory and mines.
|
XBD-DL Vertical Multi-stage single-suction multi-sectional centrifugal Fire Pump |
|
|
Flow range |
5~80L/S |
|
Pressure range |
0.2~2.25Mpa |
|
Motor power Range |
1.5~200KW |
|
Inlet/outlet caliber |
DN50~DN200mm |
|
Structure |
Vertical Multistage Centrifugal Pump |
|
Usage |
Fire Water Pump |
|
Power Driven |
Electric Motor |
|
Pressure |
High/Low Pressure |
|
Application |
Fire systems of high building (office, Hotel, hospital etc.), Mining Area and other Industrial Fields. |
|
Packing |
Wooden Carton with steel belt. |
|
Brand Logo |
Kaiyuan Fire Pumps |
Application:
XBD-DL fire pump is mainly used for Fire system pressurizing to supply water. Also, It is suitable for water supply and drainage in city, high building, long distance water delivery, heating, bath room and hot-cold water cycle pressuring system in boiler.
