- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
kellen
-
Power:
-
7500
-
Dimension(L*W*H):
-
1.8*3.5*1.6m
-
Product name:
-
carpet drying automatic machine
-
Key word:
-
Washing Machine
-
Application:
-
Industrial
-
NO. of Brushes:
-
3
-
NO. of Cylindrical Brush:
-
1
-
Rinsing System:
-
2
-
Max. Carpet Width (Meters):
-
2500
-
Productivity:
-
55㎡/h
-
Electrical Part:
-
Schneider and Chinese Brand
-
Water Consumption:
-
30Kg/㎡
Quick Details
-
Applicable Industries:
-
Other
-
Weight (KG):
-
3000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
kellen
-
Power:
-
7500
-
Dimension(L*W*H):
-
1.8*3.5*1.6m
-
Product name:
-
carpet drying automatic machine
-
Key word:
-
Washing Machine
-
Application:
-
Industrial
-
NO. of Brushes:
-
3
-
NO. of Cylindrical Brush:
-
1
-
Rinsing System:
-
2
-
Max. Carpet Width (Meters):
-
2500
-
Productivity:
-
55㎡/h
-
Electrical Part:
-
Schneider and Chinese Brand
-
Water Consumption:
-
30Kg/㎡
Product Description
Carpet Washing Machine and Carpet Spin Dryer
Carpet Washing Machine
Description
:
1.Buttons,handle cooperation;
2.Easy to operate, require1-2 workers is enough;
3.Conveyer band with speed control. It could move front and back freely. During to all kinds of chemical.
4.Two rows of nozzles for ringsing, water and soap chemical included.
5.Three or four brushes. And the brushes could move left and right, clockwise or anticlockwise freely. 6.One cylindrical brush.
7. Flexibility adjust the height of brushes--according to the carpets thickness in every carpet. No need to adjust manually.

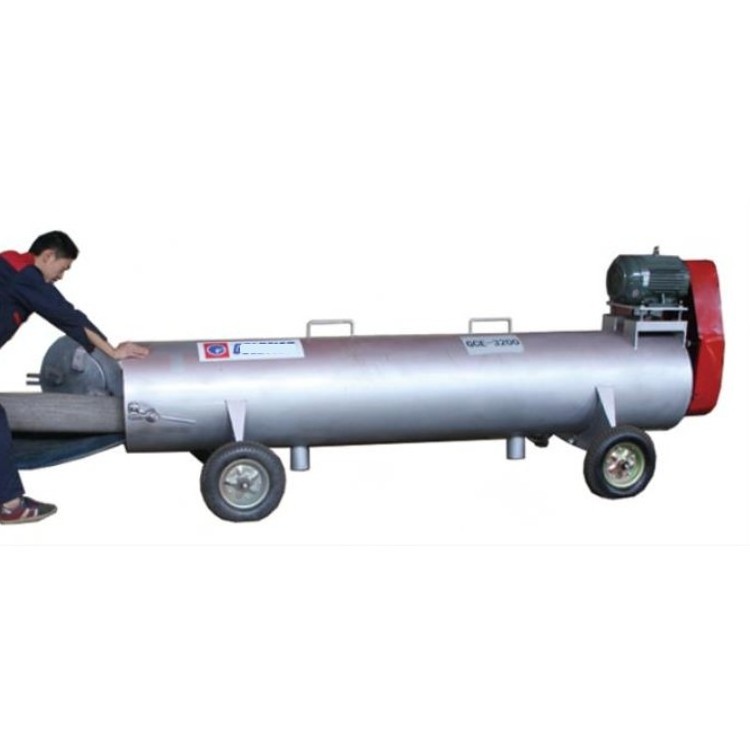

Carpet Spin Dryer
Description:
1. Stainless steel inner drum; And the thickness of steel is 5mm.
2. The centrifuge is designed for extraction carpet after washing, the use of a centrifuge accelerates the process is fully dry to several hours;
3. A special system of pneumatosis to prevent vibration, low vibration during the spin cycle;
4. High spin speed adjustment time;
5. Inverter control. Speed is adjustable.
6. Manual operation;
Specification
1.Carpet Washing Machine's specifications:
|
Model
|
Unit
|
|
CRF-3500
|
CRF-4200
|
CRF-5000
|
|||
|
NO. of Brushes
|
|
|
3
|
4
|
4
|
|||
|
NO. of Cylindrical Brush
|
|
|
1
|
1
|
1
|
|||
|
Rinsing System
|
Row
|
|
2
|
2
|
2
|
|||
|
Max. Carpet Width (Meters)
|
mm
|
|
2500
|
3200
|
4200
|
|||
|
Productivity
|
㎡/h
|
|
55
|
90
|
120
|
|||
|
Electrical Part
|
|
|
Schneider and Chinese Brand
|
Schneider and Chinese Brand
|
Schneider and Chinese Brand
|
|||
|
Water Consumption
|
Kg/㎡
|
|
30
|
30
|
30
|
|||
|
Electricity Consumption
|
Kg/㎡
|
|
0.075
|
0.075
|
0.075
|
|||
|
Motor Power
|
kw
|
|
7.5
|
11
|
15
|
|||
|
Brushes Speed
|
RPM
|
|
300 or adjustable
|
300 or adjustable
|
300 or adjustable
|
|||
|
NO. of Detergent Pump
|
|
|
1
|
1
|
1
|
|||
|
Touch Screen
|
|
|
0
|
0
|
0
|
|||
|
Input Voltage
|
V
|
|
110/220/380/415
|
110/220/380/415
|
110/220/380/415
|
|||
|
Dimension
|
M
|
|
1.8*3.5*1.6
|
1.8×4.2×1.6
|
1.8×5×1.6
|
|||
|
G.W.(kg)
|
KG
|
|
3000
|
3800
|
4200
|
|||
2.
Carpet Spin Dryer
's specifications:
|
Model
|
Unit
|
|
GCE-3500
|
GCE-4200
|
GCE-5000
|
|
|
Material Of Inner Drum
|
|
|
stainless steel
|
stainless steel
|
stainless steel
|
|
|
Material Of Outer Drum
|
|
|
Carbon Steel
|
Carbon Steel
|
Carbon Steel
|
|
|
Drum diameter
|
mm
|
|
400
|
400
|
400
|
|
|
Max. carpet width
|
mm
|
|
2500
|
3200
|
4200
|
|
|
Extract Speed
|
R/Min
|
|
800
|
600
|
500
|
|
|
Drying Time/Carpet
|
min
|
|
2
|
2.5
|
2.5
|
|
|
Power Rating
|
kw
|
|
5.5
|
7.5
|
7.5
|
|
|
Input voltage
|
v
|
|
110/220/380/415
|
110/220/380/415
|
110/220/380/415
|
|
|
Dimensioon
|
mm
|
|
3100x1000x960
|
3800x1000x960
|
4600x1000x960
|
|
|
N.W
|
kg
|
|
900
|
1000
|
1200
|
|
|
G.W.
|
kg
|
|
920
|
1020
|
1220
|
|
Machine display
