Quick Details
-
Productivity:
-
18M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOTRUK
-
Weight:
-
44000 kg
-
Dimension(L*W*H):
-
14160X2550X4000
-
Product name:
-
Concrete Pump Truck
-
Application:
-
Construction Engineering
-
Concrete pump type:
-
Reliable Concrete Pumping
-
Chassis model:
-
SINOTRUCK
-
Max. Theor. output:
-
66/111m3/h
-
Max. Theor. concrete output Pressure:
-
10/6MPa
-
Rated working pressure:
-
32MPa
-
Capacity:
-
6-8m3/h
-
Feature:
-
Competitive
-
Color:
-
Customers' Requirement
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
120M
-
Max. horizontal conveying distance:
-
150M
-
Productivity:
-
18M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOTRUK
-
Weight:
-
44000 kg
-
Dimension(L*W*H):
-
14160X2550X4000
-
Product name:
-
Concrete Pump Truck
-
Application:
-
Construction Engineering
-
Concrete pump type:
-
Reliable Concrete Pumping
-
Chassis model:
-
SINOTRUCK
-
Max. Theor. output:
-
66/111m3/h
-
Max. Theor. concrete output Pressure:
-
10/6MPa
-
Rated working pressure:
-
32MPa
-
Capacity:
-
6-8m3/h
-
Feature:
-
Competitive
-
Color:
-
Customers' Requirement

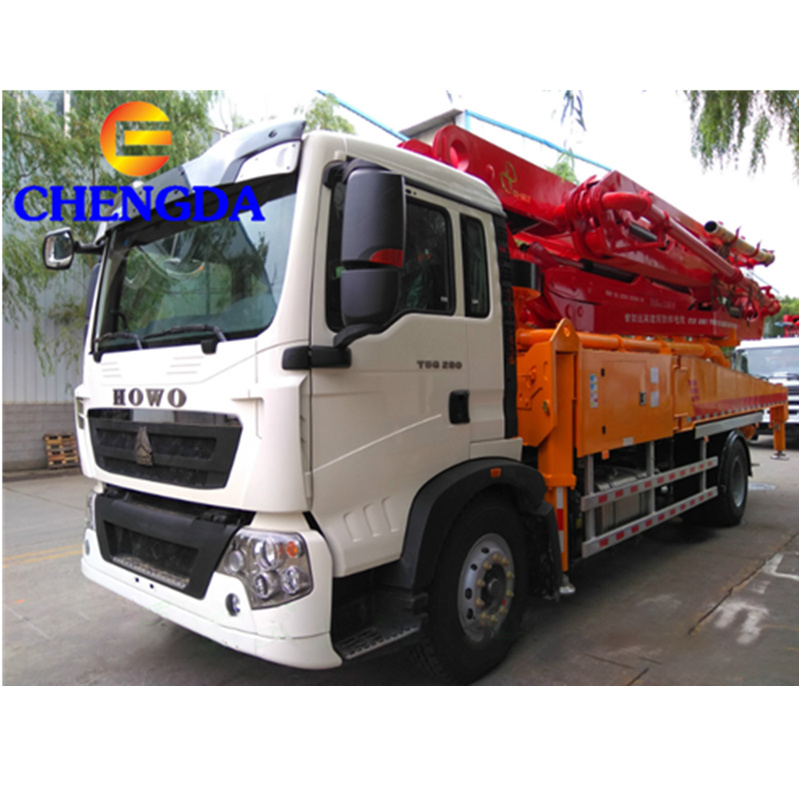

China Factory SINOTRUK HOWO 25 30 33 38 42 47 56 63m Concrete Pump Truck
Product Description
concrete pump truck, full range pumping capacity and boom length to meet different meet in concrete pumping projects.CE, ISO, CCC, BV, all authorized certificates, excellent quality with favorable price, welcome contact us for detailed infomration.
| specification | |||
| Pumping system | Max. Theor. output(high/low pressure) | m3/h | 66/111 |
| Max. Theor. concrete output Pressure(high/low pressure) | MPa | 10/6 | |
| Rated working pressure | MPa | 32 | |
| Pumping frequency(high/low pressure) | min-1 | 19/32 | |
| Hopper capacity | L | 600 | |
| Filling height | mm | 1200 | |
| Hydraulic system type | Open loop | ||
| Distribution valve | S valve | ||
| Oil cylinder dia.×stroke | mm | φ125×1400 | |
| Concrete cylinder dia.×stroke | mm | φ230×1400 | |
| Hydraulic oil cooling | Air cooling | ||
| Recommended concrete slump | cm | 12~23 | |
| Max. aggregate dimension | mm | 40 | |
| Placing boom | Structure type | 35-5RZ | |
| Placing depth | m | 35 | |
| Horizontal distance | m | 31 | |
| Placing depth | m | 26 | |
| Slewing angle | ±270° | ||
| Pipe diameter | mm | 125 | |
| End hose length | mm | 3000 | |
| Min. height of opening placing boom | mm | 9000 | |
| Outriggers span (front×rear×side) | mm | 6140×7606×8446 | |
| Chassis and the whole machine | Chassis model | ZZ5207M521GE1 | |
| Wheelbase | mm | 5200 | |
| Engine type | MC07.28-50 | ||
| Engine power | kW | 206kw | |
| Oil tank cubage | L | 400 | |
| Tail gas exhaust standard | EURO 2 | ||
| Overall dimensions | mm | 9900x2496x3700 | |
Detailed Images
Related Products
Packaging & Shipping
Our Services
- Reply your inquiry in 12 working hours;
- Experienced staffs answer all your questions;
- Customer’s design is available for certain products(OEM);
- Spare parts for all types of engine machinery with reasonable price;
- Different kinds of semi trailer can be provided with competitive price.
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers and nice quality to ensure the trucks and trailers being in good working conditions.
