Quick Details
-
Table Travel (Y) (mm):
-
320mm
-
Dimension(L*W*H):
-
1900X1620X2000mm
-
Weight (T):
-
2.4 T
-
Table Travel (Z) (mm):
-
450mm
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
3.7kw
-
Max. Table Load(kg):
-
300 kg
-
Feed Speed(mm/min):
-
1 - 8000 mm/min
-
Rapid Feed Speed(m/min):
-
15/15/15
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGDA
-
Voltage:
-
220V/380V
-
Name:
-

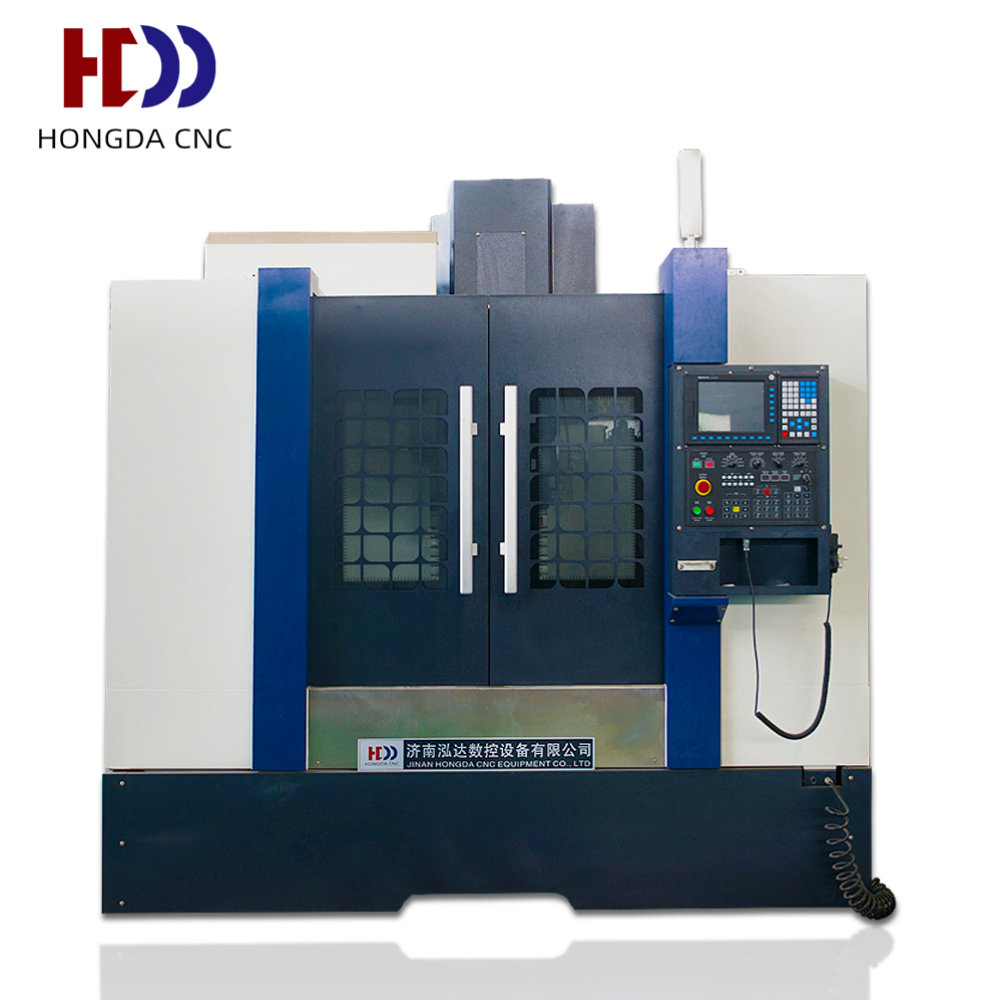

cnc milling machine small XH7124
-
Keywords:
-
Bt40 Spindle Taper Cnc Milling Machine
-
Control system:
-
fanuc Siemens GSK SYNTEC
-
Machine Type:
-
Vertical machining center
-
Controlling Mode:
-
CNC system
-
Application:
-
Manufacturing of General Machined Parts
-
Main motor power:
-
11kw
-
Tool magazine:
-
Arm 24
-
Spindle taper:
-
BT40
-
Max. spindle speed:
-
8000
Quick Details
-
Table Size (mm):
-
1000X240mm
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
500mm
-
Table Travel (Y) (mm):
-
320mm
-
Dimension(L*W*H):
-
1900X1620X2000mm
-
Weight (T):
-
2.4 T
-
Table Travel (Z) (mm):
-
450mm
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
3.7kw
-
Max. Table Load(kg):
-
300 kg
-
Feed Speed(mm/min):
-
1 - 8000 mm/min
-
Rapid Feed Speed(m/min):
-
15/15/15
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGDA
-
Voltage:
-
220V/380V
-
Name:
-
cnc milling machine small XH7124
-
Keywords:
-
Bt40 Spindle Taper Cnc Milling Machine
-
Control system:
-
fanuc Siemens GSK SYNTEC
-
Machine Type:
-
Vertical machining center
-
Controlling Mode:
-
CNC system
-
Application:
-
Manufacturing of General Machined Parts
-
Main motor power:
-
11kw
-
Tool magazine:
-
Arm 24
-
Spindle taper:
-
BT40
-
Max. spindle speed:
-
8000
Video Description
Product Description
Main technical parameters of the product:
|
Table size
|
1000X240mm
|
|
Max. table load
|
300kg
|
|
T slot qty-width*distance
|
3-14x75
|
|
spindle speed
|
8000r p m
|
|
spindle nose to table surface
|
90-470mm
|
|
Spindle center to Column surface
|
360mm
|
|
Spindle taper
|
BT40
|
|
Main motor power
|
2.2/3.7kw (servo)
|
|
X axis travel
|
450mm
|
|
Y axis travel
|
380mm
|
|
Z axis travel
|
400mm
|
|
X/Y/Z axis rapid feed
|
15/15/15m/min
|
|
Positioning accuracy
|
±0.01mm
|
|
Repeatabeility accuracy
|
±0.005mm
|
|
Net Weight
|
2400 kg
|
|
Overall Dimension
|
1900X1620X2000
|
