* Six different welding mode options. This includes circle, dot, line, triangle, double circle and double triangle. The frequency and width controls are very flexible. They can easily meet various requirements for multiple workpieces.
* This laser welder is compatible with auto wire feeder. The advantages include building a stronger and more resilient finish, stable welding effect and overall improvement in product quality, There are three wire diameters the feeder can work with including 1.2mm, 1.0mm and 0.8mm. When compared with a single wobble head, the double wobble is more adjustable and speeds are quicker (without the risk of undercut, deformation or burns).
* A total of four types of welding tips available can be used on the handheld laser welder machine. Wire-feed nozzle, external corner welding nozzle, internal or universal welding nozzle, and laser cutting tip.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SIEMELASER
-
Wavelength:
-
1080nm
-
Weight (KG):
-
200 KG
-
Core Components:
-
Fiber Laser source
-
Application material::
-
Metal Stainless Steel Aluminum
-
Laser Source:
-
Raycus
-
Application:
-
Steel below 6mm
-
Machine Net weight:
-
170KG
-
Gun optional:
-
Gefast,Qilin,Au3tech
-
Power optional:
-
1000w/1500w/2000w/3000w
-
Fiber source optional:
-
MAX,RAYCUS,JPT
-
Funtions optional:
-
Welding,Cleaning,Cutting
-
Color:
-
Red Blue
-
Wire Feeder:
-
included
Quick Details
-
Max. Output Power:
-
1500w
-
Usage:
-
welding
-
Laser Source Brand:
-
RAYCUS
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SIEMELASER
-
Wavelength:
-
1080nm
-
Weight (KG):
-
200 KG
-
Core Components:
-
Fiber Laser source
-
Application material::
-
Metal Stainless Steel Aluminum
-
Laser Source:
-
Raycus
-
Application:
-
Steel below 6mm
-
Machine Net weight:
-
170KG
-
Gun optional:
-
Gefast,Qilin,Au3tech
-
Power optional:
-
1000w/1500w/2000w/3000w
-
Fiber source optional:
-
MAX,RAYCUS,JPT
-
Funtions optional:
-
Welding,Cleaning,Cutting
-
Color:
-
Red Blue
-
Wire Feeder:
-
included
Product Description

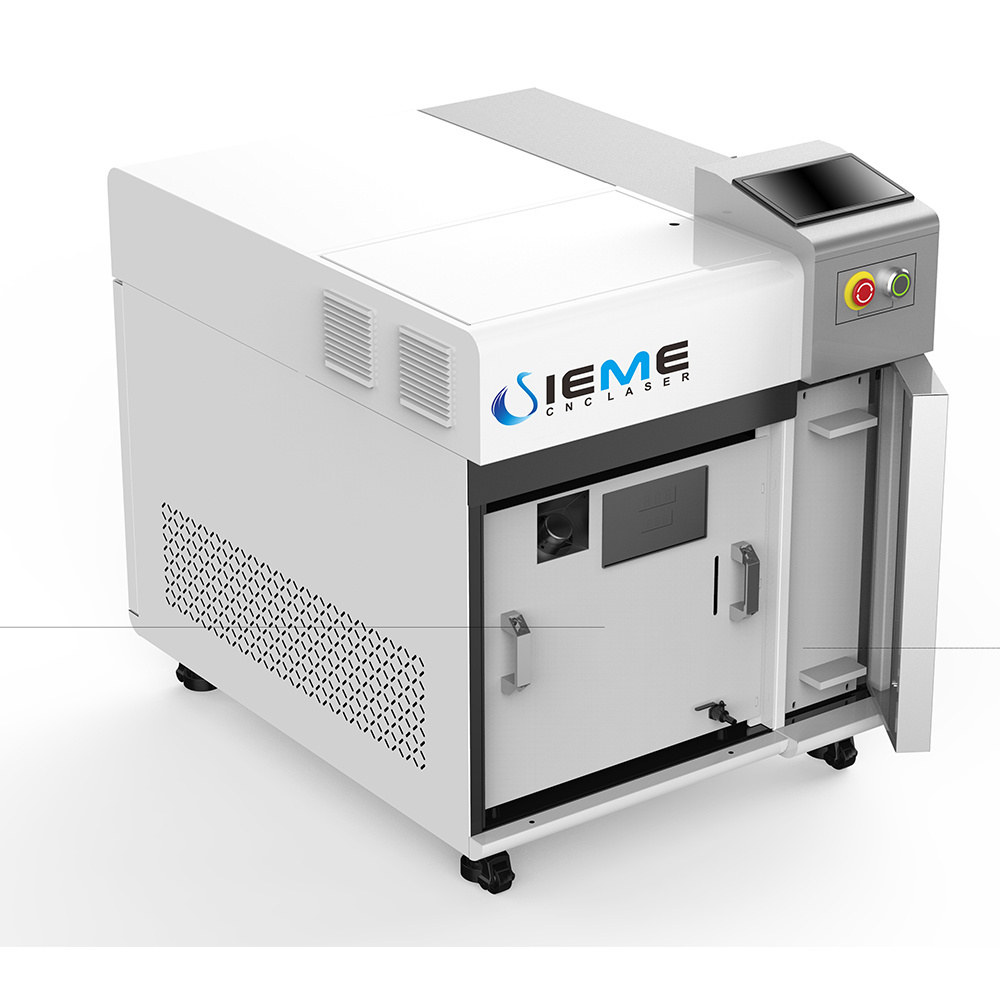

Introduction to Fiber Handheld Laser Welding Machine
The fiber handheld laser welding machine made by SIEMELASER is best-in-class. From high-power density to impeccable accuracy, this handheld fiber laser welding machine is ideal for all your production needs. The high-quality laser beam uses its optical systemto focus/aim at small areas. Most ideal for metal alloys, this machine is perfect for aluminum letters as well.
Furthermore, it is also portable and features a double wobble welding gun. By creating a solid welding point, the welds are
seamlessly joined together. A confined heated area is produced by the welded parts. High-speed energy is directed in a short timeperiod to a small area, therefore melting the fabrication material.
There are many benefits of this handheld welder machine. This includes an integrated design, sturdy structure, small footprint,
and high precision mode. The consistent performance of this machine is a product of exceptional parts and ongoing power. Rapid welding speeds, a wide range, and overall longevity are some of the best qualities this machine has to offer.
Furthermore, it is also portable and features a double wobble welding gun. By creating a solid welding point, the welds are
seamlessly joined together. A confined heated area is produced by the welded parts. High-speed energy is directed in a short timeperiod to a small area, therefore melting the fabrication material.
There are many benefits of this handheld welder machine. This includes an integrated design, sturdy structure, small footprint,
and high precision mode. The consistent performance of this machine is a product of exceptional parts and ongoing power. Rapid welding speeds, a wide range, and overall longevity are some of the best qualities this machine has to offer.
Specification
|
Model
|
SM-3000W
|
|
Laser type
|
Fiber laser, 1080nm
|
|
Laser power
|
1000W / 1500W / 2000W / 3000w
|
|
Laser Wavelength
|
1080NM FIBER LASER
|
|
Cable length
|
5 meter (10 meter is optional)
|
|
Welding speed
|
0-120mm/sec
|
|
Welding thickness
|
0.5-6mm
|
|
Welding spot diameter
|
0.2-5.0mm adjustable
|
|
Cooling method
|
Water cooling
|
|
Gas assist
|
Nitrogen
|
|
Visual positioning
|
Red dot
|
|
Flexible Worktable
|
Support co-work with robot arm
|
|
Machine dimension
|
105x60x90CM
|
|
Machine weight
|
180KG
|
|
Working voltage
|
220V/380V 50HZ/60HZ
|
|
Machine Packing size
|
115X75X155CM
|
Double Wobble with Auto Wire Feeder
Pros/Advantages of Double Wobble Head
Controller system
Touch Controller Screen
Easy to use and operate with pre-set parameters for different materials.
How Easy Is It to Get the Parameters Settings for Different Material Thickness?
Packing & Delivery
2. It can be used to weld various metallic materials, like carbon steel, stainless steel, titanium, aluminum, brass, etc.
