Quick Details
-
Brand Name:
-
ZETOP MEDICAL
-
Model Number:
-
ZT-DX-2D
-
Quality Certification:
-
ISO
-
Product name:
-
Dental X-ray
-
Type:
-
dental x-ray machine
-
Radiograph mode:
-
Panorama/Cephalometric
-
Anode Voltage:
-
60-90 kV
-
Anode Current:
-
2-10 mA
-
Exposure time:
-
panorama 17s/cephalometric 12s
-
Image height:
-
11cm
-
weight:
-
265kg
-
Feature:
-
panorama
-
Application:
-
Dental Area
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Free spare parts
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
ZETOP MEDICAL
-
Model Number:
-
ZT-DX-2D
-
Quality Certification:
-
ISO
-
Product name:
-
Dental X-ray
-
Type:
-
dental x-ray machine
-
Radiograph mode:
-
Panorama/Cephalometric
-
Anode Voltage:
-
60-90 kV
-
Anode Current:
-
2-10 mA
-
Exposure time:
-
panorama 17s/cephalometric 12s
-
Image height:
-
11cm
-
weight:
-
265kg
-
Feature:
-
panorama
-
Application:
-
Dental Area

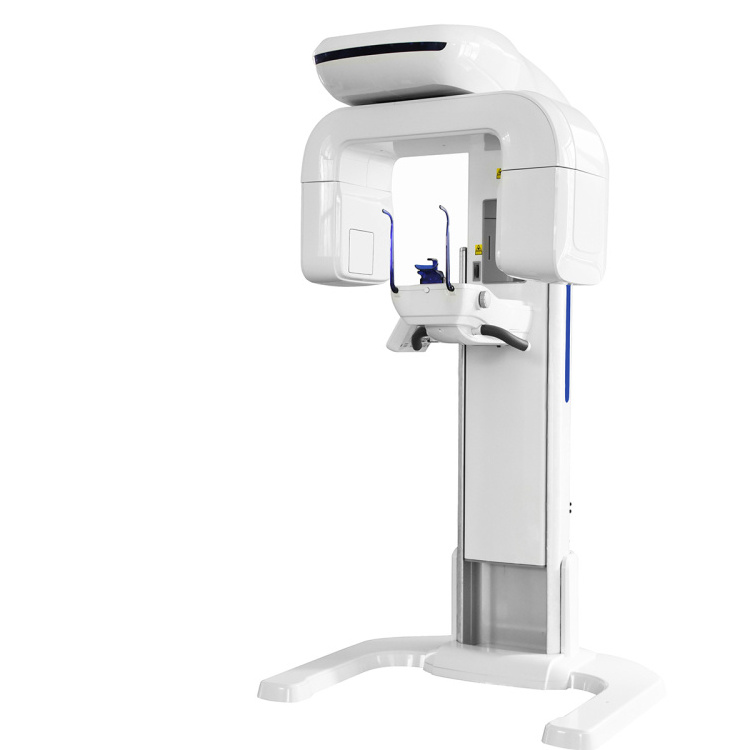

Tooth-pan Digital Dental Panoramic Imaging
Model: ZT-DX-2D
Max resolution panoramic images;
Laser beam alignment;
Easy to use 3D imaging up-gradable .
Technical Features- Panoramic X-ray system
| Compact control panel with intuitive symbols and display | |
| Remote X-ray controlled key pad | |
| Pulse X-ray generator | |
| Focal spot | 0.5 |
| Voltage | 60-90kV |
| Current | 2-10mA |
| Exposure time | 15-20s |
| Heat dissipation and load management for waiting time reduction | |
| Source image distance | 65cm |
| Dental arch vertical magnification | <30% |
| Vertical travel of occlusal plane reference point | 90-176cm |
Panoramic projections:
1.Adult standard with constant vertical magnification of the dental arch;
2.Child panoramic;
3.Front view of maxillary sinuses
Accessories for positioning:
-bite block
-chin rest
-optional temporo-mandibular adjustable resting bars
Carriage translation
-motorized for vertical movements
-free standing base unit (wheel chair accessible
Net weight: 400KG
Digital receiver
COMOS sensor
Spatial resolution >5 line pairs per mm
Acquisition dynamics on 12 levels, 16-bits internal processing Connection to computer via Gigabit network port
