Quick Details
-
Weight:
-
680 KG
-
Dimension(L*W*H):
-
280*212*122cm
-
Product Name:
-
plough machine
-
Dsic No.:
-
6-9
-
disc diameter:
-
610mm
-
Working depth:
-
20-30cm
-
Certification:
-
CE/ISO
-
Power:
-
80-100HP
-
Function:
-
Paddy filed plowing
-
Working Width:
-
2m
-
Product Type:
-
Mounted Plough
-
Work Speed:
-
0.8-1.2ha/h
Quick Details
-
Use:
-
Farm; Agricuture; Farm Machine
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CHENS-LIFT
-
Weight:
-
680 KG
-
Dimension(L*W*H):
-
280*212*122cm
-
Product Name:
-
plough machine
-
Dsic No.:
-
6-9
-
disc diameter:
-
610mm
-
Working depth:
-
20-30cm
-
Certification:
-
CE/ISO
-
Power:
-
80-100HP
-
Function:
-
Paddy filed plowing
-
Working Width:
-
2m
-
Product Type:
-
Mounted Plough
-
Work Speed:
-
0.8-1.2ha/h

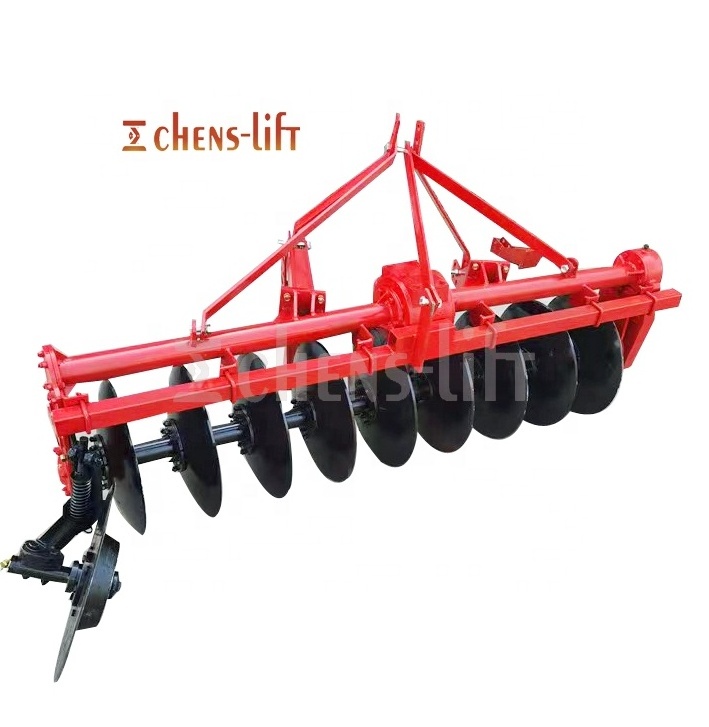

Agricultural small tiller disc ploughing plow price pflug aratro portable ridger tractor plough machine to plough the soil
Product Details
The disc plow is connected with the three-point suspension equipment at the rear of the tractor. During the operation project, the power of the implement is transmitted to the disc plow gearbox through the rear power output shaft of the tractor to drive the disc plow to rotate. The disc plow is mainly suitable for paddy field farming, and has the characteristics of not tangling grass, high operation quality, and high work efficiency.
The disc plow blades are made of boron steel with a hardness of 48-52HRC, which is stronger and more durable than manganese steel.
|
Iterm
|
CSL-DDP9-610
|
CSL-DDP6-610
|
|
Input speed(r/min)
|
540
|
540
|
|
Matching power(hp)
|
85-100
|
65-85
|
|
Blade shaft RPM(r/min)
|
91
|
91
|
|
Working efficiency(ha/h)
|
0.8-1.2
|
0.6-1.0
|
|
Working width(m)
|
2
|
1.36
|
|
Working deepth(mm)
|
200-260
|
200-260
|
|
No. of disc(pcs)
|
9
|
6
|
|
Dia of disc(mm)
|
610
|
610
|
|
Weight(kg)
|
160
|
190
|
|
Dimension(cm)
|
280*212*122
|
216*212*122
|
|
Weight(kg)
|
680
|
550
|
