Quick Details
-
Cooling capacity:
-
15.8 KW
-
suction line:
-
42mm
-
liquid line:
-
22mm
-
Voltage:
-
220V/380V
-
outiline size:
-
1435mm*1150mm*1430mm
-
After Warranty Service:
-
No service
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO9001
-
Brand Name:
-
XMK
-
Weight (KG):
-
600
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Refrigerant:
-
R404
-
Fan power:
-
240x4 KW
-
Cooling capacity:
-
15.8 KW
-
suction line:
-
42mm
-
liquid line:
-
22mm
-
Voltage:
-
220V/380V
-
outiline size:
-
1435mm*1150mm*1430mm
-
After Warranty Service:
-
No service
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO9001
-
Brand Name:
-
XMK
-
Weight (KG):
-
600

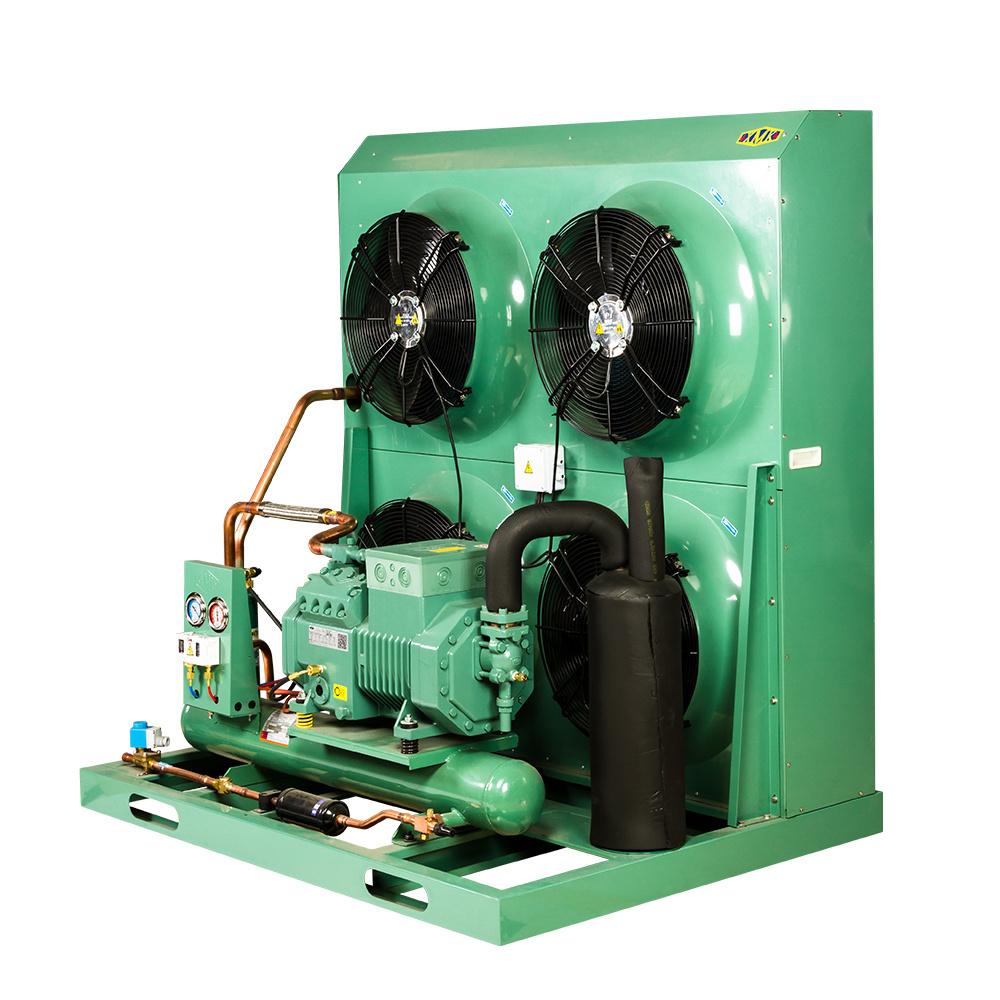

10HP 12HP 15HP Low Temperature Condensing Unit Refrigeration
This open type condenser unit is mainly assembled with semi-hermetic compressor, other brand compressors are also optional.
1.
Open-type style makes it easier for moving, installation and maintenance.
2.
High and low pressure controller are designed to protect the whole compressor system when the equipment breaks down or overloads.
3.
Main components are compressor, condenser, receiver tank, filter drier, solenoid valve, pressure controller, pressure gauge, connection box and electrical controller box etc.
| Model | HCU09LYB | HCU12LYB | HCU14LYB | HCU18LYB | HCU23LYB | |
| Power Supply | 380V/50Hz/3phase | |||||
| Applicable Temp | 5degree to -15degree | |||||
| Compressor | Model | 4TES-9Y | 4PES-12Y | 4NES-14Y | 4HE-18Y | 4GE-23Y |
| Max.current(A) | 19.9 | 22.7 | 26.6 | 36.7 | 43.9 | |
| Fans | Voltage(V) | 380V/50Hz/3phase | ||||
| Current(A) | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | |
| Power(W) | 240*4 | 240*4 | 240*4 | 240*4 | 240*4 | |
| Rev.(r/rin) | 1330 | 1330 | 1330 | 1330 | 1330 | |
|
Capacity
/Power(KW) |
Evap. -20degree | 10.8/7.4 | 12/8.1 | 14.7/10 | 20.7/13.8 | 24.2/16.4 |
| Evap. -25degree | 8.6/6.4 | 9.5/6.9 | 11.7/8.6 | 16.7/12 | 19.7/14.3 | |
| Evap. -30degree | 6.7/5.4 | 7.3/5.8 | 9.1/7.2 | 13.2/10.3 | 15.7/12.2 | |
| Evap. -35degree | 5.1/4.4 | 5.5/4.7 | 7.0/6 | 10.2/8.7 | 12.3/10.4 | |
| Evap. -40degree | 3.8/3.6 | 4/3.8 | 5.2/4.9 | 7.7/7.3 | 9.3/8.7 | |
| Suction Line(mm) | 35 | 35 | 35 | 42 | 54 | |
| Liquid Line(mm) | 16 | 16 | 16 | 22 | 22 | |
| Size | L (mm) | 1435 | 1435 | 1435 | 1435 | 1435 |
| W (mm) | 1000 | 1000 | 1000 | 1150 | 1150 | |
| H (mm) | 1430 | 1430 | 1430 | 1430 | 1430 | |
We are a manufacturer, we can customize products for you according to your requirements.
I
f
you don't know which model is suitable for you, you could send message to us
.
We have several professional engineers to make a customized solution for you.
