Quick Details
-
Motor:
-
3.5kw
-
Battery:
-
60V100AH Lead-acid battery Maintenance free
-
Weight:
-
550kgs
-
Controller:
-
60V Inbol intelligent controller
-
Max. Speed:
-
30km/h
-
range:
-
80-100km
-
Brand:
-
SUNYU
-
Color:
-
white,red,blue,green,yellow;accept customized colors
Quick Details
-
Dimension:
-
3500*1200*1800mm(L*W*H)
-
Product name:
-

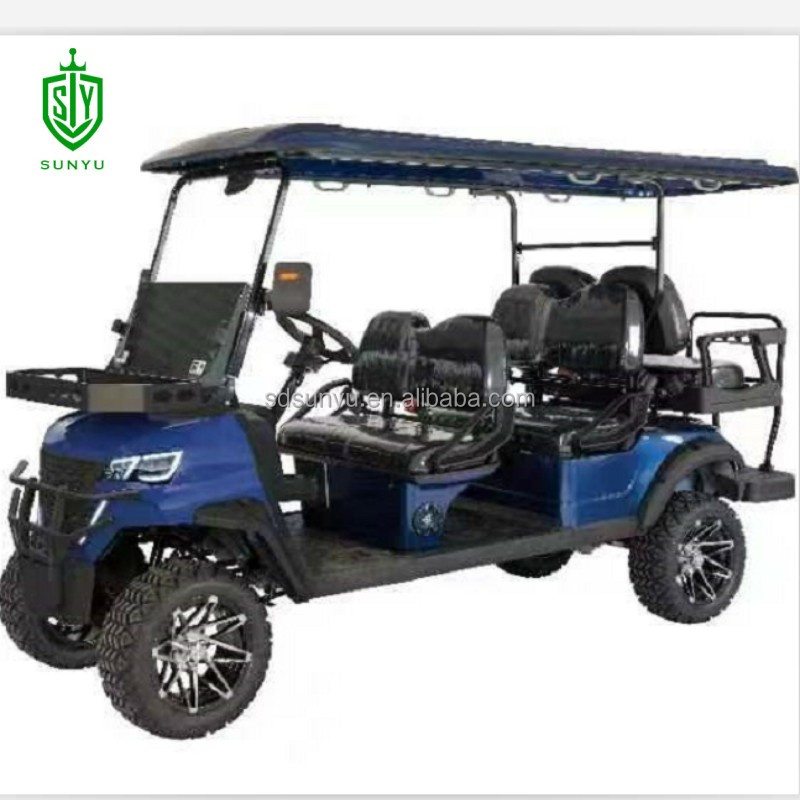

4+2 Seat golf cart
-
Size:
-
3500*1200*1800mm(L*W*H)
-
Motor:
-
3.5kw
-
Battery:
-
60V100AH Lead-acid battery Maintenance free
-
Weight:
-
550kgs
-
Controller:
-
60V Inbol intelligent controller
-
Max. Speed:
-
30km/h
-
range:
-
80-100km
-
Brand:
-
SUNYU
-
Color:
-
white,red,blue,green,yellow;accept customized colors
CE certificate long range 4 wheel club drive lithium electric golf scooter factory directly shipped golf buggy
Specification
|
Vehicle mode
|
SY-GF-F2
|
SY-GF-F22
|
SY-GF-F4
|
SY-GF-F42
|
SY-GF-F6
|
SY-GF-F62
|
SY-GF-F8
|
SY-GF-F82
|
||||||||
|
Size（L*W*H）
|
2400*1200*1850
|
2800*1200*1850
|
3100*1200*1850
|
3500*1200*1850
|
4000*1200*1850
|
4400*1200*1850
|
4900*1200*1850
|
5300*1200*1850
|
||||||||
|
Passenger/seats
|
2 people
|
2+2
|
4
|
4+2
|
6
|
6+2
|
8
|
8+2
|
||||||||
|
Max Speed
|
30Km/h
|
30Km/h
|
30Km/h
|
30Km/h
|
30Km/h
|
30Km/h
|
30Km/h
|
30Km/h
|
||||||||
|
Min.ground clearance
|
≥140
|
|
|
|
|
|
|
|
||||||||
|
Min. turning radius
|
≤4.5m
|
|
|
|
|
|
|
|
||||||||
|
Braking distance
|
≤4m
|
≤4m
|
≤4m
|
≤4m
|
≤5m
|
≤5m
|
≤5.5m
|
≤5.5m
|
||||||||
|
Driving Mileage
|
80-100KM
|
80-100KM
|
80-100KM
|
80-100KM
|
80-100KM
|
80-100KM
|
80-100KM
|
80-100KM
|
||||||||
|
Gradeability
|
30℃
|
30℃
|
25℃
|
25℃
|
25℃
|
25℃
|
25℃
|
25℃
|
||||||||
|
Curb weight
|
450kg
|
500kg
|
500kg
|
550kg
|
600kg
|
650kg
|
650kg
|
700kg
|
||||||||
|
Wheel track
|
870mm
|
870mm
|
870mm
|
870mm
|
870mm
|
870mm
|
870mm
|
870mm
|
||||||||
|
Wheel base
|
1700mm
|
1700mm
|
2400mm
|
2400mm
|
3200mm
|
3200mm
|
3960mm
|
3960mm
|
||||||||
|
battery charger
|
12V100AH Maintenance-free colloidal battery
|
|
|
|
|
|
|
|
||||||||
|
Motor
|
3.5KW AC asynchronous drive motor
|
|
|
|
|
|
4KW AC asynchronous drive motor
|
|
||||||||
|
battery charger
|
90-265V Car Built-in smart charger
|
|
|
|
|
|
|
|
||||||||
|
Controller
|
60V Low voltage AC controller
|
|
|
|
|
|
72V Low voltage AC controller
|
|
||||||||
|
Drive system
|
RWD (Rear Wheel Drive)
|
|
|
|
|
|
|
|
||||||||
|
Front Suspension
|
front suspension
|
|
|
|
|
|
|
|
||||||||
|
Rear Suspension
|
rear shock absorber
|
|
|
|
|
|
|
|
||||||||
|
Braking system
|
Combined foot brake accelerator
|
|
|
|
|
|
|
|
||||||||
|
Tyre
|
12 inch off-road Aluminum vacuum tires tires for golf carts
|
|
|
|
|
|
|
|
||||||||
|
Steering system
|
Rack and pinion type steering machine
|
|
|
|
|
|
|
|
||||||||
|
Light & Signal
|
Combined headlights, turn signals, combined rear lights, electric horn and reversing buzzer
|
|
|
|
|
|
|
|
||||||||
|
Seat
|
Foamed sponge + high rebound PU leather fabric with safe belts
|
|
|
|
|
|
|
|
||||||||
|
Instrument board
|
combination instrument
|
|
|
|
|
|
|
|
||||||||
|
Rear view camera
|
yes
|
|
|
|
|
|
|
|
||||||||
|
Body material
|
Steel frame +ABS engineering plastic molding parts；
|
|
|
|
|
|
|
|
||||||||
|
Body color
|
White/yellow/gold/green/support custom colors
|
|
|
|
|
|
|
|
||||||||
|
Pcs/40HQ(container)
|
27
|
18
|
18
|
18
|
12
|
12
|
12
|
12
|
||||||||
|
|
One 40GP/40HQ
|
|
|
|
|
|
|
|
||||||||
|
option
|
1. 4KW /5KW AC motor
|
|
|
2. Back foled seats
|
|
|
|
|
||||||||
|
|
3. Folded windshield
|
|
|
4. Front bumper /front luggage bucket/back luggage bucket
|
|
|
|
|
||||||||
|
|
5. Upgrade black injection molding roof
|
|
|
6. Rain curtain or Sunshine curtain
|
|
|
|
|
||||||||
|
7 . golf bag holder,refrigerator 8. closed box ,colors, logo etc
|
|
|
|
|
|
|
|
|
||||||||
|
Accept customized golf carts as cutomers' requirements
|
|
|
|
|
|
|
|
|
||||||||
Product Description
Some Option
We accept customized golf carts as customers' requirements
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
