Quick Details
-
Design Printing:
-
Offer Printing
-
Material:
-
ALUMINIUM FOIL
-
Feature:
-
Waterproof
-
Use:
-
MASKING
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Vaneter
-
Model Number:
-
VAF-320
-
Color:
-
Silver
-
Total thickness:
-
30-170 μm
-
Peel strength:
-
18 N/25mm
-
Tensile strength:
-
37.5 N/25mm
-
Elongation at break:
-
3.0 %
-
Temperature resistance:
-
-20~+120 ℃
-
Operation temperature:
-
+10~+40 ℃
-
Finished roll width:
-
38mm,48mm,50mm,60mm,72mm,75mm,96mm,100mm
-
Jumbo size:
-
1200mm*1000m,1200mm*1200m
-
Certificates:
-
ISO,BV
Quick Details
-
Adhesive:
-
Acrylic
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
Offer Printing
-
Material:
-
ALUMINIUM FOIL
-
Feature:
-
Waterproof
-
Use:
-
MASKING
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Vaneter
-
Model Number:
-
VAF-320
-
Color:
-
Silver
-
Total thickness:
-
30-170 μm
-
Peel strength:
-
18 N/25mm
-
Tensile strength:
-
37.5 N/25mm
-
Elongation at break:
-
3.0 %
-
Temperature resistance:
-
-20~+120 ℃
-
Operation temperature:
-
+10~+40 ℃
-
Finished roll width:
-
38mm,48mm,50mm,60mm,72mm,75mm,96mm,100mm
-
Jumbo size:
-
1200mm*1000m,1200mm*1200m
-
Certificates:
-
ISO,BV
Product Description
|
Material Descriptions
|
Glue type
|
|
Acrylic solvent
|
|
|||
|
|
Substrate
|
|
Aluminum foil
|
|
|||
|
33
|
Total thickness
|
|
76μm±4μm
|
|
|||
|
|
Substrate thickness
|
|
40μm±4μm
|
|
|||
|
|
Release material
|
|
Release paper
|
|
|||
|
General physical characteristics
|
Adhesion to steel sheet (peeling)
PSTC-1 / ASTM D3330
|
|
≥18N/25mm
|
|
|||
|
|
Static shear force (hold)
PSTC-31 / ASTM D3759
|
|
1000g, ≥24Hr
|
|
|||
|
|
Initial tack (Ball test)
PSTC-6 / ASTM D3121
|
|
≤20
|
|
|||
|
|
Temperature resistance
|
|
－30℃~120℃
|
|
|||
|
|
Tensile Strength
PSTC-31 / ASTM D3759
|
|
≥50N/25mm
|
|
|||
|
Shelf life
|
12 months from date of production. Tape Should be stored in a cool ( temperature between 21℃~25℃), dry (humidity between 45%-55%) environment.
|
|
|
|
|||

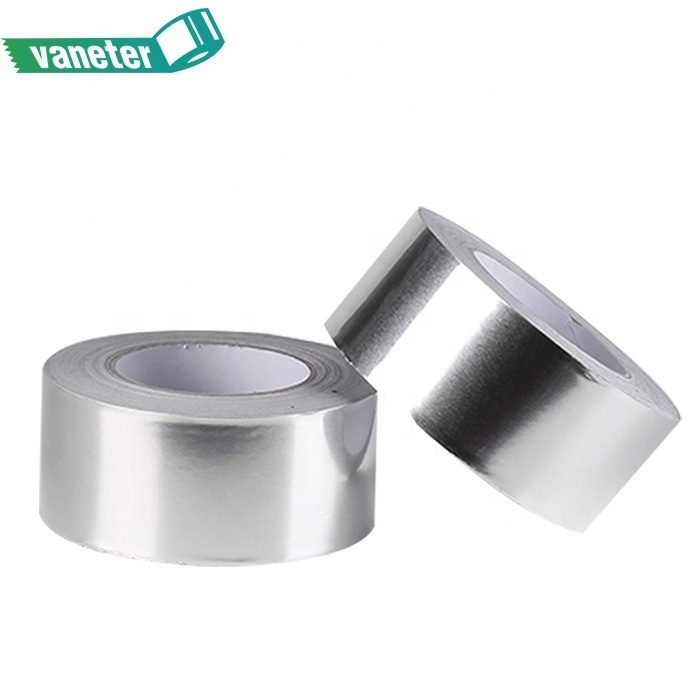

About The Aluminum Foil Tape
Aluminum Foil Tape combines the durable industrial repair properties of aluminum and the ease of use of duct tapes.
It has a butyl rubber acrylic adhesive that forms an airtight and water-resistant bond for both indoor and outdoor sealing, restoration, and HVAC applications.
It also conforms well to irregular surfaces due to its flexible material build and it can adhere well to various smooth, textured, or rough surfaces thanks to its strong adhesive backing.
PRODUCT FEATURES
•
Aluminum Foil Tape With/Without Liner makes
easy
application
.
•
Aluminum backing provides
excellent
reflection
of both heat and light.
•
High quality adhesive with strong adhesion and holding power offers permanent sealing and bonding on Foil-Scrim-Kraft Facing joints and seams in
HVAC
ductwork application.
•
Good
aging resistance
both indoors and outdoors.
•
Low moisture vapor transmission rate offers
excellent
sealing and patching performance
.
Wide applicability, generally used for sealing hot and cold air ducts (quality HVAC tape), insulating aluminum duct pipes, aluminum alloy seals, stainless steel and plastic joints/joints, temporary repair of metal surfaces, copper pipe fixing, etc. A wide range of applicability to meet your daily needs.
1.Sealing hot and chilly air ducts
2.Repairing metal seams
3.Insulating aluminum duct pipes
4.
Excellent Flame
5.Retardant & Vapor Barrier
