Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
KEXING IRRIPLAST OR OEM
-
Model Number:
-
D2001
-
COLOR:
-
Light Blue,Dark blue,black
-
Standard:
-
ISO17885 ISO14236
-
Application:
-
Irrigation
-
Pressure:
-
16bar
-
Thread:
-
BSP
-
MOQ:
-
5CTNS
-
Body material:
-
PPB
-
Medium:
-
WATER
-
Delivery time:
-
7-15 Days
Quick Details
-
Technics:
-
Injection
-
Shape:
-
Equal
-
Head Code:
-
Round
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
KEXING IRRIPLAST OR OEM
-
Model Number:
-
D2001
-
COLOR:
-
Light Blue,Dark blue,black
-
Standard:
-
ISO17885 ISO14236
-
Application:
-
Irrigation
-
Pressure:
-
16bar
-
Thread:
-
BSP
-
MOQ:
-
5CTNS
-
Body material:
-
PPB
-
Medium:
-
WATER
-
Delivery time:
-
7-15 Days

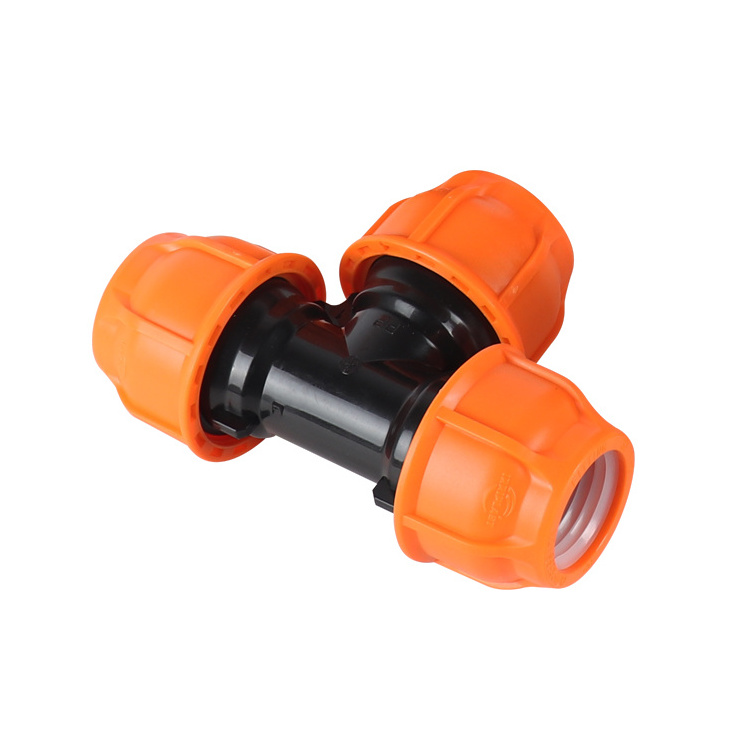

KEXING IRRIPLAST PN10 16BAR PLASTIC TEE MALE FEMALE ISO17885 14236 HDPE Irrigation Compression fittings PP
D2001 Specifications:
| Description | Code | Size | Weight (g/pc) | PCS/BAG | PCS/CTN | Carton size |
| TEE | D3001 | 20 | 69 | 15 | 195 | 48*38*38cm |
| 25 | 118 | 10 | 110 | 48*38*38cm | ||
| 32 | 196 | 4 | 72 | 48*38*38cm | ||
| 40 | 289 | 4 | 44 | 48*38*38cm | ||
| 50 | 496 | / | 27 | 48*38*38cm | ||
| 63 | 818 | / | 17 | 48*38*38cm |
KEXING PP compression fittings line has been designed for the conveyance of fluids at high pressures, for water conveyance, for potable water distribution and applications in the thermo-hydraulic sector. This product line is accordance with the most severe international standards in terms of mechanical properties and alimentary compatibilities.
Technical data
Materials
|
Part |
Material |
|
Body(A) |
Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature. |
|
Blocking bush(D) |
Polypropylene |
|
Nut(B) |
Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004) |
|
Clinching ring(C) |
Polyacetal resin(POM)with high mechanical resistance And hardness |
|
O Ring gasket(E) |
Special elastomeric acrylonitrile rubber(EPDM) for alimentary use |
|
Reinforcing ring |
AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1”to 4” |
Working Pressures
KEXING PP compression fittings allows the maximum working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature:
|
Dn |
PFA* |
PMA* |
PEA* |
|
16-63 |
16 |
20 |
24 |
|
75-110 |
10 |
12.5 |
15 |
|
Temperature( °C ) |
Da-10a25 |
Da+26a+35 |
Da+36a+45 |
|
16-63 |
16 |
20 |
24 |
|
75-110 |
10 |
12.5 |
15 |
Reference Standards
Dimensions: UNI 9561Working
Pressure: UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Polyethylene(PE)pipes: UNI 7990,DIN 8074,UNI EN 12201
Threads: UNI ISO7/1,UNI EN 10026-1,ANSI ASME B1-20.1
Flanges: DIN 2501-1,UNI EN 1452-3.IS 7005-2
Kexing has Five different styles for your selection
