Quick Details
-
Light Source:
-
LED
-
Color Rendering Index(Ra):
-
*
-
Product Weight（kg）:
-
1
-
Input Voltage(V):
-
7.6
-
Lamp Luminous Flux(lm):
-
12000
-
Lamp Luminous Efficiency(lm/w):
-
1200
-
CRI (Ra):
-
1100
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
HAN
-
Working Mode::
-
Flash and steady-on adjustable
-
Available Colors:
-
Five colors (R/B/G/Y/W)
-
Warranty Time:
-
5 years for light
-
Visual Range:
-
2.5-4.5nm
-
Flash Patterns:
-
Customized (256 code)
-
Bateery:
-
7.6V 3600mah
-
intensity:
-
up to 32cd (adjustable)
-
Waterproof:
-
IP68
-
Autonomy:
-
21days
Quick Details
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
COOL WHITE
-
Lamp Body Material:
-
PC
-
Light Source:
-
LED
-
Color Rendering Index(Ra):
-
*
-
Product Weight（kg）:
-
1
-
Input Voltage(V):
-
7.6
-
Lamp Luminous Flux(lm):
-
12000
-
Lamp Luminous Efficiency(lm/w):
-
1200
-
CRI (Ra):
-
1100
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
HAN
-
Working Mode::
-
Flash and steady-on adjustable
-
Available Colors:
-
Five colors (R/B/G/Y/W)
-
Warranty Time:
-
5 years for light
-
Visual Range:
-
2.5-4.5nm
-
Flash Patterns:
-
Customized (256 code)
-
Bateery:
-
7.6V 3600mah
-
intensity:
-
up to 32cd (adjustable)
-
Waterproof:
-
IP68
-
Autonomy:
-
21days
Specification

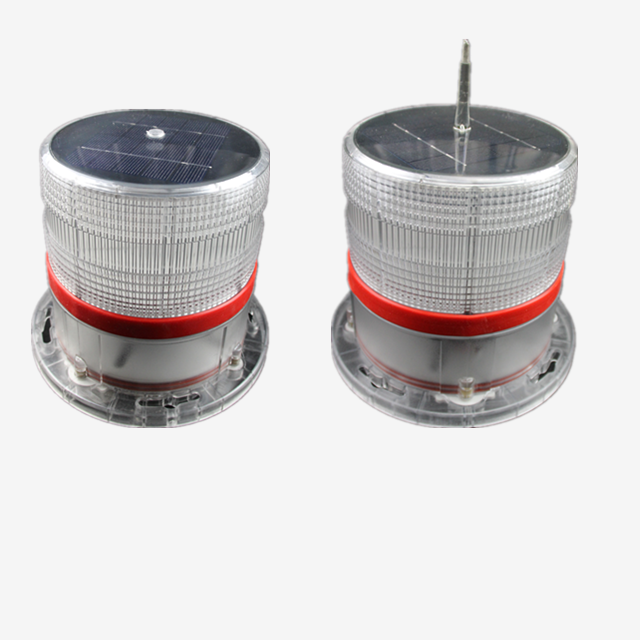

Lowest price led solar aviation obstruction light
The Spike Bird is optional
Dimensions: height: 8.353" (212mm) Width :8.944" (227mm)
Weight: 3.3 lb (1.5 kg)
Light Characteristics:
Working Mode: Steady on & Flashing Adjustable
Intensity Adjustable: 25% 50% 75% 100%
Horizontal Degree: 360°
Available Colors: Red Yellow Green White Blue
Visual Range:
4.5-8km
Waterproof: IP68
Flash Patterns: Customized (256 code)
Product Details
Body
1.Material : PC shell
2.Mounting options: 4 bolts
3.Configuration: Removing the rotary stopper end
There is steel wire to prevent stopper end falling during mounting and adjusting.
When you finish the configuration,
You must rotate the rotary stopper end tightly.
Solar panel & Battery
Solar panel Output Power: 8V 2.5watts
Battery Type： Ternary lithium battery
Battery Capacity: Output Voltage
Battery Output Voltage：7.6V
Autonomy： >21days (12hour darkness,12.5%duty cycle)
Light Source
Light Source：LED
Led Life： ≥100,000hours
Intensity： 26cd
Led number: Normally 16 pcs led , it could be customized.
Control Panel
1. Effective intensity adjustment
The effective intensity of HAN700 is a measure of its apparent brightness,we have 4 kinds of programmed intensity(O N 1 2). intensity can be adjusted from 25%, 50%, 75% and 100% of total intensity.
2. Flash / steady adjustment
adjust the switch to ON, then it's flashing mode,
adjust the switch to 1, then it's steady mode.
3. Toggle switch
Turn On or Off easily by your finger moving the toggle switch towards the ON or OFF side.
Applications
Airport runway light
Tower light
High-building light
1. Runway Edge & Threshold lighting
3. Elevated runway guard light
4. Tower light
5. Chimney light
6.High-building light
7. Crane / beacon light
8. Helipad light
9. Airfield barricade light
Installation Process
1. Runway Edge (white)
2. Threshold lighting (white)
3. Apron Taxiway light (blue)
4. Barricade lighting (red)
5. Helipad light (green)
6. Obstruction light
Packing & Delivery
1. Package:
1)Package Type
One unit in one inner carton 6 units in one outer carton Outer carton
2)size
73*49*27cm (with the bird spike) /
73*49*23cm (without the bird spike)
3)Gross Weight
25kgs/Carton (with the bird spike) /
23kgs/Carton (without the bird spike)
2.Delivery:
3-10 working days after payment
Certifications
Don't be scared, we have passed those certificates,to make you assured, to make you happy.
