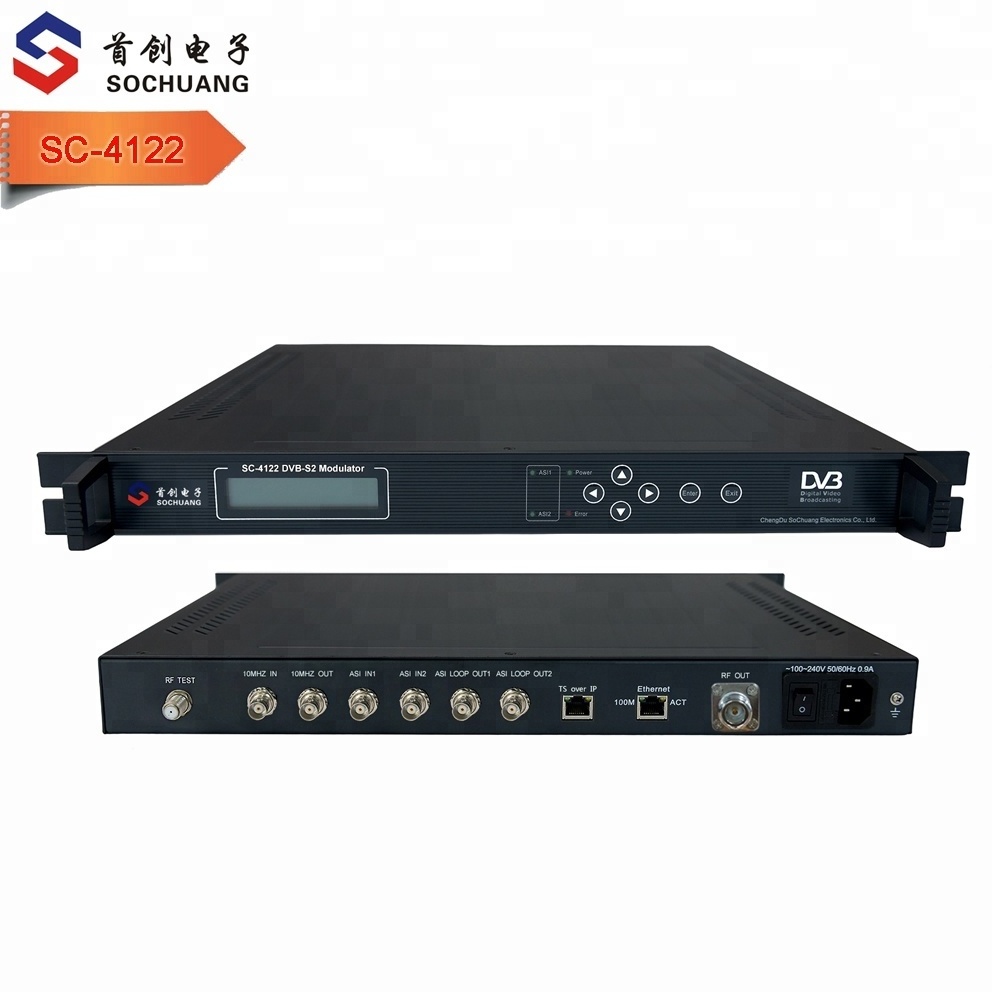

SC-4122 DVB-S2 Modulaor /ASI or IP to DVB-S2 RF modulator /Satellite uplink wireless TV modulator
8qpsk dvb s2 modulator for mmds mvds muds wireless digital tv system (ASI/IP IN,RF(F or N-head option) out)
Overview
DVB-S2 modulator supports 2×ASI and 100M IP input and outputs DVB-S2 RF signal by 8PSK/QPSK modulation. It uses advanced frame structure, channel coding modulation technology. Compared with DVB-S modulator, it increase 50% of the transmission capacity under same condition and it has stronger reception capacity under same spectral efficiency. This modulator complies with DVB-S2 EN302 307 and DVB-S (EN300 421) standard. It suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital wireless and satellite broadcasting distribution systems.
Features
1.Comply with DVB-S2(EN302 307) and DVB-S (EN300 421) standard
2.2×ASI and 100M IP input
3.Support input and output signal real time monitoring
4.LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
|
Input |
ASI |
ASI (DVB standard, BNC interface) |
|
IP |
100M IP, TS over UDP |
|
|
Package Format |
188/204bytes |
|
|
Output |
Modulation Mode |
|
|
Frequency Range |
950-2150MHz |
|
|
Symbol Rate |
||
|
Error-Correcting Codes |
DVB-S:1/2,2/3,3/4,5/6,7/8 DVB-S2: QPSK:1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10 8PSk : 3/5,2/3,3/4,5/6,8/9,9/10 |
|
|
Input Rate |
1.0-108Mbps |
|
|
Channel Data Rate |
1-56Mbps |
|
|
MER |
> 38dB |
|
|
BER |
0 |
|
|
Level Attenuation Range |
0-20dB ( 0.5dB step ) |
|
|
Impedance |
75Ω |
|
|
Control |
Ethernet Port |
10/100M RJ45 |
|
General Features |
Size |
482mm×280mm×44mm |
|
Temperature Range |
0~45°C (Operation); -20~80°C (Storage) |
|
|
Power |
100-240VAC, 50Hz, 25W |
Network Management
Device can be configured by Network Management Software. Below is an example of Video/Audio confirguration interface screenshot.
Network Management Software: http:// 211.149.232.3 /download/DvbManager.exe
Similar Products
Supporting Products
This product is mainly used for DVB-S2 wireless TV system. It's called as DVB-S2 QPSK/8PSK Modulator , Satellite uplink modulator, Wireless tv modulator, C Ku band modulator etc.
