Name: Flat die/ matrix/ mold
Brand: TOPS
Original: Shandong, China
This die made by alloy steel, the hole diameter you can choose from 2.5mm-10mm.
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
40Cr
-
Die diameter:
-
120mm
-
Life time:
-
300 hours
-
Package:
-
Carton or plywood box
-
Die thickness:
-
18mm
-
Die weight:
-
1.2kg
-
Roller weight:
-
2.5kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TOPS
-
Certificate:
-
CE, ISO
-
Material:
-
40Cr
-
Die diameter:
-
120mm
-
Life time:
-
300 hours
-
Package:
-
Carton or plywood box
-
Die thickness:
-
18mm
-
Die weight:
-
1.2kg
-
Roller weight:
-
2.5kg
Product Description

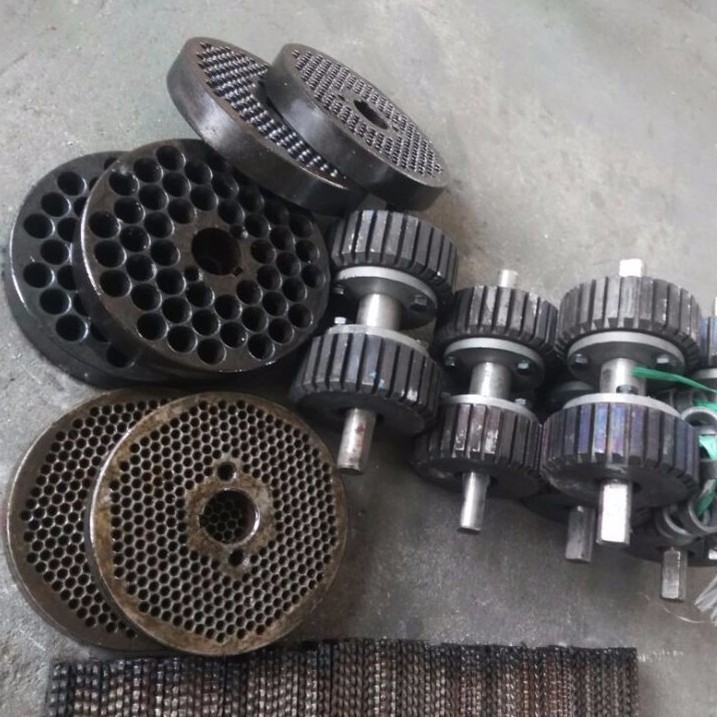

roller and die pellet machine parts
Product Application
Pellet machine spare part is used on feed pellet machine or wood pellet mill machine, they are the wearing parts or spare parts. This machine is widely used in farm for feed and woodworking machinery for fuel.
Roller, mainly is the roller wheels as the wearing parts. The shaft and bearings no need change oftenly, just grease the bearings.
Dies, it's a main part in a machine, it must resist abrasion, corrosion from chemical exposure and breakage caused by the physical stresses of pellet formation. The optimum die combines high resistance to abrasion, breakage and corrosion with maximum productivity. Our expertise enables us to precisely match the die specification to your required formulation, even if it means customizing a die pattern to meet your exact needs. The wide range of used dies with hole diameters from 2 mm to 12 mm guarantees the production of pellets with a required size.
Specification of roller and die pellet machine parts
|
Model
|
Die diameter
|
Die hole diameter
|
Die weight
|
Die thickness
|
Roller weight
|
|
TOPS120
|
120mm
|
2.5-10mm
|
1.2kg
|
18mm
|
2.4kg
|
|
TOPS150
|
150mm
|
2.5-10mm
|
2.4kg
|
24mm
|
2.6kg
|
|
TOPS200
|
200mm
|
2.5-10mm
|
4.5kg
|
26mm
|
5.5kg
|
|
TOPS230
|
230mm
|
2.5-10mm
|
4.8kg
|
26mm
|
6.5kg
|
|
TOPS260
|
260mm
|
2.5-10mm
|
8kg
|
26mm
|
11kg
|
|
TOPS300
|
300mm
|
2.5-10mm
|
10kg
|
26mm
|
13.5kg
|
|
TOPS360
|
335mm
|
2.5-12mm
|
14kg
|
28mm
|
19kg
|
|
TOPS400
|
395mm
|
2.5-12mm
|
23kg
|
28mm
|
42kg
|
Main Features
1. Used in various pellet mills made in China and overseas
2. Customized specifications are accepted
3. Sort of roller: corrugation roller
4. Materials: alloy steel
5. Technical parameters: open end, closed end, HCE, HOE, HTP, straight dimple, opening of dimple
Certifications
Detailed Images
Machine Parts
Main Features
Name:
Roller
Brand:
TOPS
Original:
Shandong, China
The roller contains the roller wheels, bearings and roller shaft. The wearing part is the roller wheels, just grease the bearigns .
Our Service
1. The TM is avaliable for 12 hours in a day and will reply you within 12 hours if you have any inquiry about our products.
2. We provide 1 year guarantee.
3. We provide english manual and video for installation and operation.
4. Our technicians is available to serve abroad.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
13 (L) * 13 (W) * 12 (D) cm
|
|
|
Weight
|
12 kg
|
|
|
Packaging Details
|
The normal package is carton or plywood box(Size: L*W*H). It can export directly, no need fumigate.
|
|
