Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZD MOTOR
-
Model Number:
-
Z2D/Z3D/Z4D
-
Torque:
-
10N.M
-
Flange Siza:
-
60MM 70MM 80MM 90MM 104MM
-
Application:
-
Automatic Product
-
Motor type:
-
Dc Brush Gear Motor
Quick Details
-
Speed(RPM):
-
3000 r/min
-
Continuous Current(A):
-
2.2 A
-
Efficiency:
-
IE 2
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZD MOTOR
-
Model Number:
-
Z2D/Z3D/Z4D
-
Torque:
-
10N.M
-
Flange Siza:
-
60MM 70MM 80MM 90MM 104MM
-
Application:
-
Automatic Product
-
Motor type:
-
Dc Brush Gear Motor
Model Selection
ZD Leader has a wide range of micro motor production lines in the industry, including DC Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Drum Motor, Planetary Gearbox, RV Reducer and Harmonic Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.
Product Description

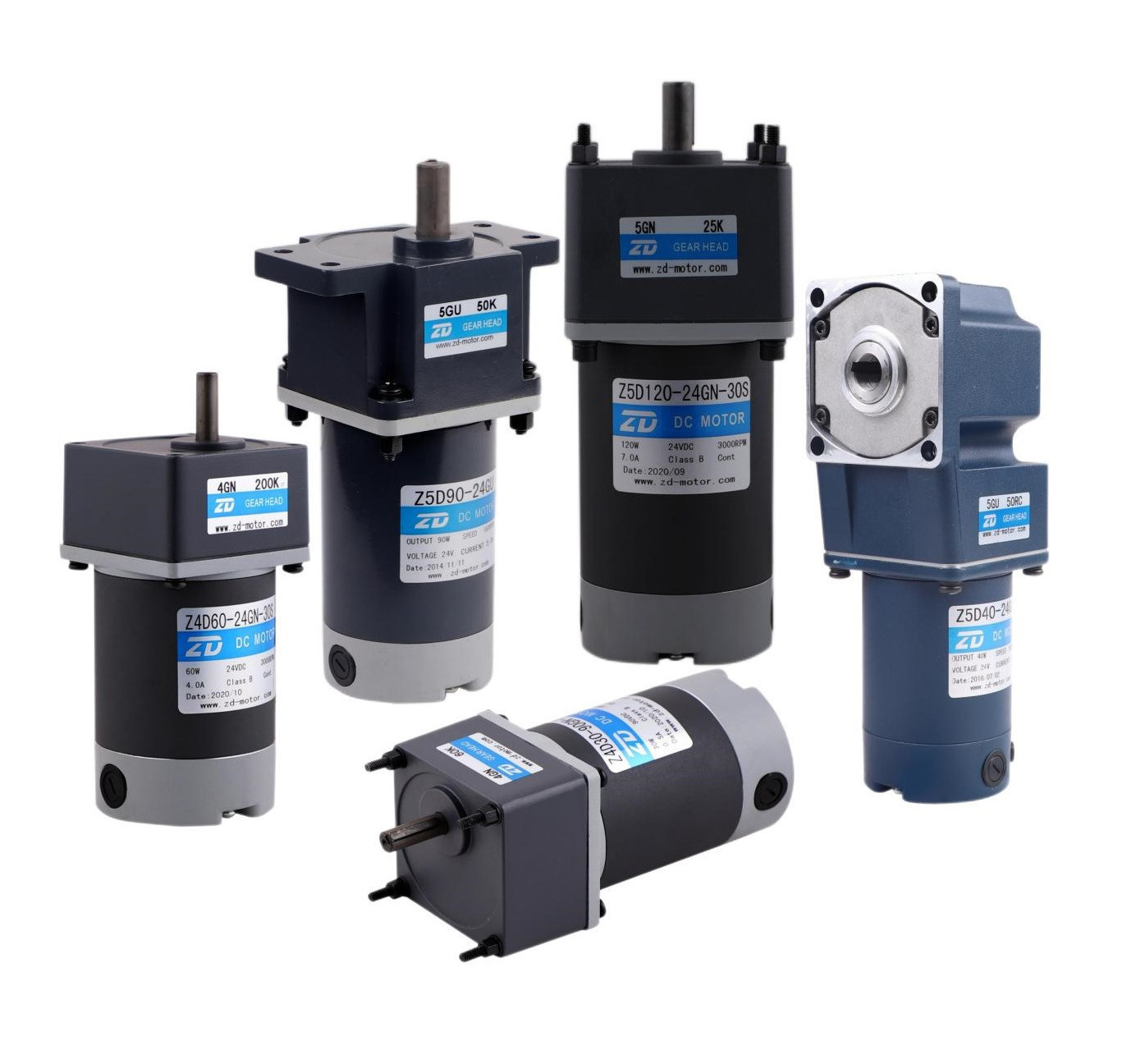

DC Gear Motor
* Motor Type: Brush
* Frame Size：60mm, 70mm, 80mm, 90mm, 104mm
* Power：6W-300W+
* Ratio Range：3-200K
* Voltage:12V-220V
* Application：Barrier Gate System, Electronic Equipment ...
* Motor Type: Brush
* Frame Size：60mm, 70mm, 80mm, 90mm, 104mm
* Power：6W-300W+
* Ratio Range：3-200K
* Voltage:12V-220V
* Application：Barrier Gate System, Electronic Equipment ...
Product Parameters
|
MOTOR FRAME SIZE
|
|
60 mm / 70mm / 80mm / 90mm / 104mm
|
|
|
MOTOR TYPE
|
|
Brushed
|
|
|
OUTPUT POWER
|
|
10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W / 300W(Can Be Customized)
|
|
|
OUTPUT SHAFT
|
|
8mm / 10mm / 12mm / 15mm ; Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized)
|
|
|
Voltage type
|
|
12V,24V,90V,110V,220V
|
|
|
Accessories
|
|
Electric Brake
|
|
|
GEARBOX FRAME SIZE
|
|
60 mm / 70mm / 80mm / 90mm / 104mm
|
|
|
Gear Ratio
|
|
3K-200K
|
|
|
Type Of Pinion
|
|
GN Type / GU Type
|
|
|
Gearbox Type
|
|
Regular Square Case gearbox / Right Angle Gearbox / L Type Gearbox
|
|
