Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Genuine EZCAD software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV Laser
-
Marking Head Brand:
-
Sino Galvo 2D/ 3D, OV Laser 2D/3D, Feeltek 3D, JCZ 3D
-
Weight (KG):
-
52 KG
-
Marking Area:
-
110mm*110mm-300*300mm
-
Core Components:
-
laser source
-
Laser source lifespan:
-
100000hours
-
Laser source power:
-
20w 30w 50w 60w 80w 100w
-
keyword:
-
laser engraving machine silver
-
Laser head:
-
2D or 3D
-
Marking Speed:
-
7000mm/s
-
Marking area:
-
110*110mm to 150*150mm
-
Power Supply:
-
AC110V /220V +10% / 50HZ or 60HZ
-
Support computer/laptop:
-
win 7, win 8, win 10 (32 bit , 64 bit)
-
Max marking depth:
-
1mm or more.
-
Application material:
-
metal and some nonmetal
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Genuine EZCAD software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV Laser
-
Marking Head Brand:
-
Sino Galvo 2D/ 3D, OV Laser 2D/3D, Feeltek 3D, JCZ 3D
-
Weight (KG):
-
52 KG
-
Marking Area:
-
110mm*110mm-300*300mm
-
Core Components:
-
laser source
-
Laser source lifespan:
-
100000hours
-
Laser source power:
-
20w 30w 50w 60w 80w 100w
-
keyword:
-
laser engraving machine silver
-
Laser head:
-
2D or 3D
-
Marking Speed:
-
7000mm/s
-
Marking area:
-
110*110mm to 150*150mm
-
Power Supply:
-
AC110V /220V +10% / 50HZ or 60HZ
-
Support computer/laptop:
-
win 7, win 8, win 10 (32 bit , 64 bit)
-
Max marking depth:
-
1mm or more.
-
Application material:
-
metal and some nonmetal
Description

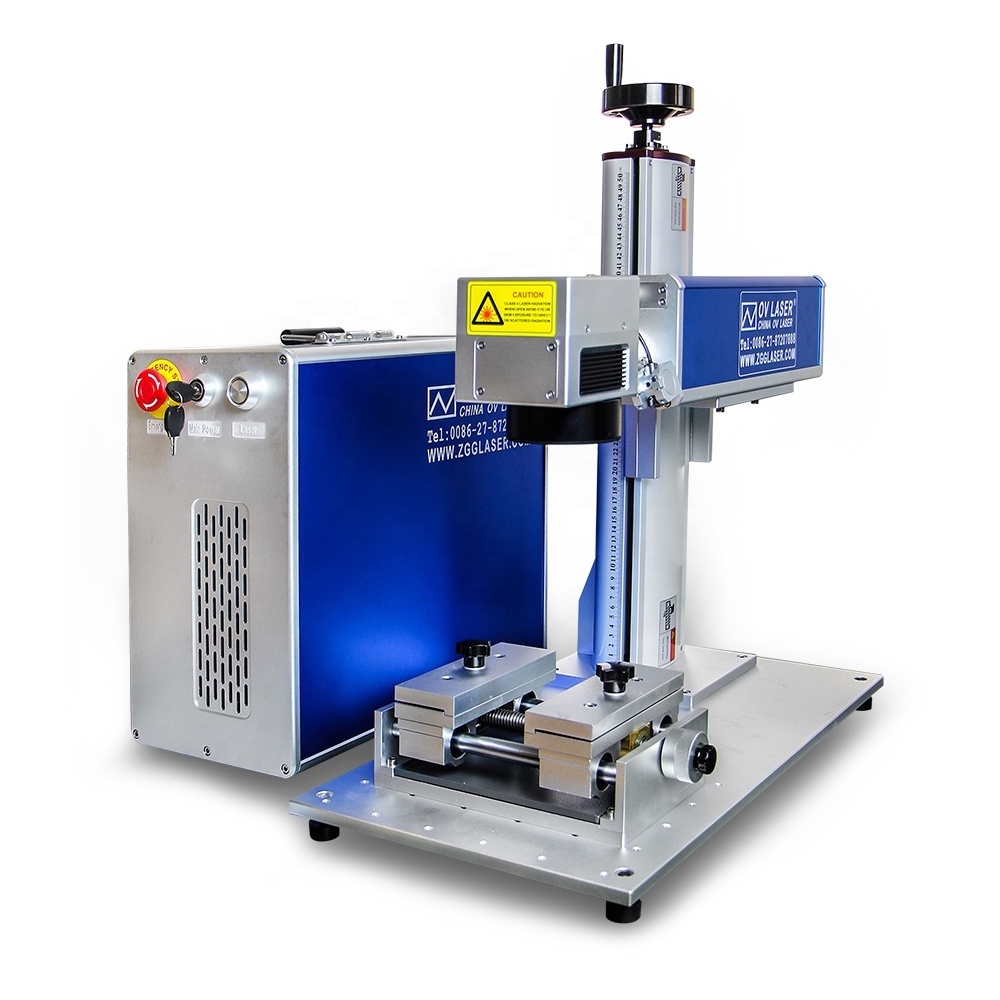

3d fiber laser engraving machine stainless steel engraving zippo lighter metal marking machine
Please contact US for inquiries and technical support.
WhatsApp/Skype/Phone Number: +86 13307109231
Email: sales25@86ovlaser.com
What Can Fiber Laser Engraving Machine do?
One fiber laser marking machine
with 4 functions:
1.Fast marking on materials surface。
2.deep engraving metal。
3.cutting jewelry names。
4.3D relief engraving metal.
Suits for engraving logo, text, time, serial, part number, QR code, barcode, 2D code, bitmap, pictures and images on almost all
metal and part of nonmetal mateirals. Appicable for engraving gold silver jewelry, firearm guns, gift items, tumbler cups mugs,
pens, auto parts, knives, metal tools and machinery parts etc.Flexible to work with electric xy moving table to get large format
engraving area, work with rotary fixture to mark cylinder objects.
1.Fast marking on materials surface。
2.deep engraving metal。
3.cutting jewelry names。
4.3D relief engraving metal.
Suits for engraving logo, text, time, serial, part number, QR code, barcode, 2D code, bitmap, pictures and images on almost all
metal and part of nonmetal mateirals. Appicable for engraving gold silver jewelry, firearm guns, gift items, tumbler cups mugs,
pens, auto parts, knives, metal tools and machinery parts etc.Flexible to work with electric xy moving table to get large format
engraving area, work with rotary fixture to mark cylinder objects.
We can customize the machine depending on your special needs.
Configurations
|
Fiber Laser Marking Engraving and Cutting Machine Specifications
|
|
|
|
|
||||
|
Products Name
|
Fiber Laser Marking Machine
|
Types & Model
|
OV LM-Series, Mini Closed Type
|
|
||||
|
Laser Source Brand
|
Raycus, JPT, IPG, Max
|
Laser Power
|
20W, 30W, 50W, 60W, 80W, 100W
|
|
||||
|
Frequency Rate for Normal Fiber
|
30KHZ to 100KHZ ( Raycus)
1KHZ to 600KHZ (JPT
)
|
Frequency Rate for Mopa Fiber
|
30KHZ to 1000KHZ (Raycus)
1KHZ to 4000KHZ (JPT)
|
|
||||
|
Max Pulse Energy
|
1mj (Raycus)
1.5mj (JPT)
|
Pulse Width
|
10 - 350ns (Raycus)
2 - 500ns (JPT)
|
2 - 500ns (JPT)
|
||||
|
Laser Wavelength
|
1064um
|
Speed
|
7000mm/s
|
|
||||
|
Control Card
|
Original EZCAD from JCZ brand
|
Filed Lens Brans
|
Wavelength/ Ronar Smith
|
|
||||
|
2D Galvo Head
|
Sino Galvo 2206 / OV8810
|
3D Galvo Head
|
Feeltek, JCZ, Sino Galvo, OV Laser
|
|
||||
|
Field Lens Brand
|
Wavelength/ Ronard Smith
|
Marking Area
|
110*110mm to 300*300mm
|
|
||||
|
Mininum Line Width
|
0.015mm
|
Mininum Character
|
0.1mm
|
|
||||
|
Operation System
|
Win XP / 7 / 8 / 10 (32 bit , 64 bit)
|
Power Supply
|
AC110V /220V +10%, 50HZ/60HZ
|
|
||||
|
Operation Environment
|
Working temperature: 0°-40°,
Storage temperature: -10°-60°. Humidity: 30% - 85%. |
|
|
|
||||
Application & Samples
|
Jewelry & Acessories:
|
Rings, Pendant, Bracelet, Necklace, Sunglasses, Watches etc.
|
|
|
|
|||
|
Electronic Components:
|
Phone, IPAD, Resistors, Capacitors, Chips, Printed Circuit Boards, etc.
|
|
|
|
|||
|
Mechanical Parts:
|
Bearings, Gears, Standard Parts, Motor, etc.
|
|
|
|
|||
|
Electronics:
|
Iphone, IPAD, Ipod, Keyboard and more standard parts.
|
|
|
|
|||
|
Instrument:
|
Panel Board, Nameplates, Precision equipment, etc.
|
|
|
|
|||
|
Hardware Tools:
|
Knives, Tools, Measuring Tools, Cutting Tools, etc.
|
|
|
|
|||
|
Automobile Parts:
|
Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights
|
|
|
|
|||
|
Handicrafts:
|
Zipper, Lighter, Key Holder, Souvenir,etc.
|
|
|
|
|||
Mopa laser marking colors
Mopa fiber laser machine can mark colors on stainless steel and titanium
Laser marking curve surface
2D and 3D fiber laser mark curve surface on brass gold silver spoons
Laser marking steel knife
Fiber laser mark white black and also deep engraving logo on knives.
Fiber laser mark black white logo on large size steel aluminum copper.
Engrave bitmap, images, names on tungstan name tag, rings, bracelets.
Fiber laser marker can both engrave and cut gold silver jewelry 1mm thick.
Fiber laser marking security seal lock with 300x300mm printing size. Conveyor table can be customized.
Fiber laser marking metal tumblers, cups, bottles.
Fiber laser mark both metal and plastic pen, straw or similar pipes.
More Models
Buyers' Feedback
About OV Laser
10 Reasons to Choose OV Laser:
* Top 10 Laser Marking Machine Manufacturer.
* Customized about 200 Laser Marking Solutions.
* More than 3000 Clients from 100 countries.
* Verified Golden Supplier on Alibaba.
* With Certifications.
* Customized about 200 Laser Marking Solutions.
* More than 3000 Clients from 100 countries.
* Verified Golden Supplier on Alibaba.
* With Certifications.
* 100% Original Parts.
* 100% Free Training Service.
* Free Lifelong After-sale Service.
* Factory Price Be Negotiable.
* Welcome OEM & Global Distributors.
* 100% Free Training Service.
* Free Lifelong After-sale Service.
* Factory Price Be Negotiable.
* Welcome OEM & Global Distributors.
Package & Delivery
|
HS Code
|
8456110090
|
|
Gross Weight
|
60KGS
|
|
Package Size
|
77*47*58cm
|
|
Lead Time
|
Within 7 working days
|
|
Transportation
|
DHL/Fedex/Sea/Air
|
