Quick Details
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Voltage:
-
AC380V/50HZ or optional
-
Dimension(L*W*H):
-
according to your order
-
Weight (KG):
-
1800
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Inverter:
-
Fuling inverter 2.2kw*8
-
Control system:
-
DSP B18 control system
-
Working area:
-
1300*2500*300mm
-
Spindle:
-
2.2kw*8 water cooling spindle
-
Motor and drive:
-
FL118 motor and YAKO driver
-
Transmission:
-
Taiwan TBI Ball Screw and Sweden ABBA linear guide rail
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Table:
-
removable t-slot table
-
Application:
-
4d 3d cylinder, screen, 4d wood moulder, statue
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Voltage:
-
AC380V/50HZ or optional
-
Dimension(L*W*H):
-
according to your order
-
Weight (KG):
-
1800
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Inverter:
-
Fuling inverter 2.2kw*8
-
Control system:
-
DSP B18 control system
-
Working area:
-
1300*2500*300mm
-
Spindle:
-
2.2kw*8 water cooling spindle
-
Motor and drive:
-
FL118 motor and YAKO driver
-
Transmission:
-
Taiwan TBI Ball Screw and Sweden ABBA linear guide rail
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Table:
-
removable t-slot table
-
Application:
-
4d 3d cylinder, screen, 4d wood moulder, statue

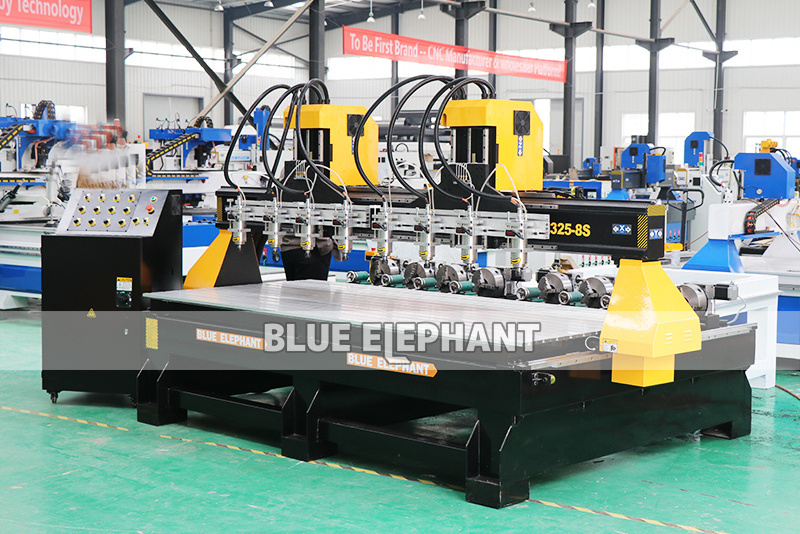

1325 multi head drilling machine cnc rotary table
Advantages
1. 8 spindles work in same time, greatly saved time to change tool manually, high efficiency
2. Removable t-slot table, process 2d sculpture with table, 8 spindles and rotary axis work together to mill and engrave cylinder 3d 4d wood moulder/statue etc artworks after removing table, multi function
3. Economic cost, standard popular configuration, worthy to buy, very suitable for furniture and woodworking, artwork industry
Technical parameters
|
Descriptions |
Parameters |
|
Product name |
ELE1325-8s |
|
Model |
1325-8s+8r |
|
Working area |
1300*2500*300mm |
|
Control system |
DSP B18 control system |
|
Spindle |
2.2kw*8 water cooling spindle |
|
Spindle speed |
0-24000RPM |
|
Inverter |
2.2kw*8 fuling inverter |
|
Motor and driver |
8 piece*FL 118 stepper motor and YAKO 2811 bigger and stronger driver |
|
Voltage |
380V, 3ph, 50Hz |
|
Linear rail |
Sweden ABBA #20 linear guide for all axis |
|
Table structure |
New type thicker and bigger heavy duty welded frame and gantry |
|
Table surface |
Removable T-slot work table |
|
X,Y axis transmission |
Helical rack and pinion drive for X,Y axis |
|
Z axis transmission |
Taiwan TBI ball screw for z axis |
|
lubrication system |
Manual lubrication system |
|
Rotary device |
Rotary device with 200mm diameter |
PS: All the working area and specifications can be customized according to your requests.
Detail Image
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
Guarantee and After-sale service:
1.
12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
