mini machine plastic injection

FOB Reference Price: Get Latest Price

≥1 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Injection Weight:: 32-1033g

Injection Rate:: 25-350cc/s

Opening Stroke:: 215-400mm

Power:: 3.7-37.3KW

Certification:: 1

Color:: Customized

Quick Details

Clamping Force:: 45-50tf

Place of Origin:: Guangdong, China

Brand Name:: TaiWang

Injection Weight:: 32-1033g

Injection Rate:: 25-350cc/s

Opening Stroke:: 215-400mm

Power:: 3.7-37.3KW

Certification:: 1

Color:: Customized

Product Description

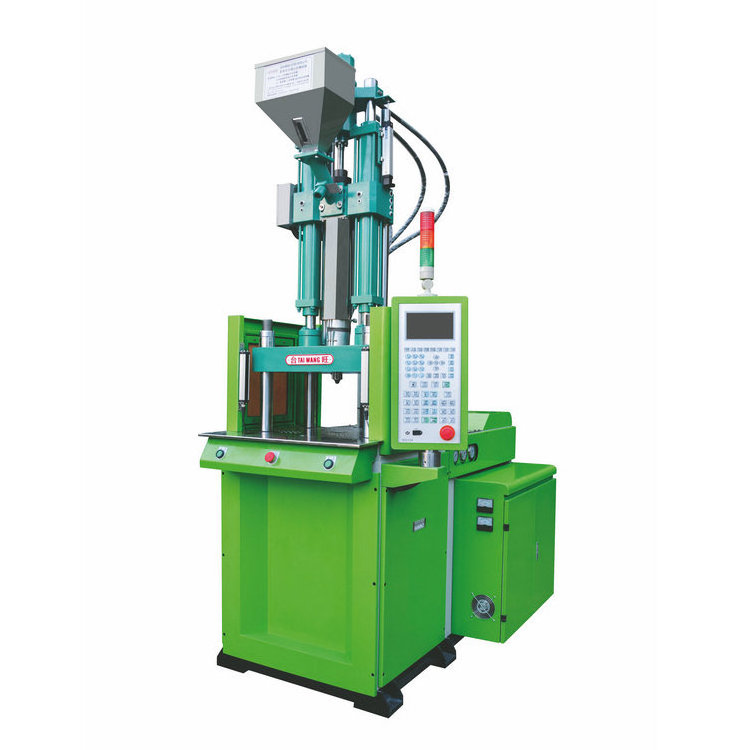

Strandard Machine Series

TW-25V ~ TW-350V

Feature:

1 .Clamping Force:25T-350T
2 .Injection Capacity:2089cm³ - 1294cm³
3 ..Vertical clamping and injection design, especially suitable for the insert molding production.

4 .Spac e-saving comp act design,more convenient to take product out.
5 .Adopts the international brand component for keeping machine running stable, reliable and accurately.
6 .Multistage precision molding heaters.
7.The temperature control is steady for per section.

8 .High-power motor ensures plasticizing capacity during working time.
9 .User-friendly LCD display which owns diverse languages system indicates various functions and working situation.
10 .TaiWang vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time.

TW-V
INJECTION UNIT	Item	Unit	TW-V
	Screw Diameter	mm	22~75
	Injection Pressure	kgf/c㎡	2089~1294
	Injection Capacity	cm³	36~ 1148
	Injection Weight(P.S)	gr	32~ 1033
		oz	1~36.5
	Injection Rate	cc/s	33~331
	Screw Speed	r.p.m	0~180
	Screw Stroke	mm	95~260
	Nozzle Stroke	mm	150~200
	Nozzle Contact Force	tf	2.4~3.5
CLAMPING UNIT	Clamping System	......	Hydraulic
	Clamping Force	tf	25~350
	Clamping Stroke	mm	215~400
	Max.Mould Space	mm	360~750
	Min.Mould Height	mm	145~350
	Hydraulic Ejector Force	tf	1.7~2.7
	Ejector Stroke	mm	40~50
OTHERS	Drive Motor	KW	3.7(5HP)~37.3(40HP)
	Heater	KW	4.1~19.8
	Dimension of Machine(L×W×H)	m	1.31.12.8~3.32.15.4
	Weight Of Machine	t	1.15~23
	Shipping Size(L×W×H)	m	1.51.32.2~3.734.8
	Shipping Weight	t	1.75~13
	Oil Tank Capacity	l	130~650
	Cooling Water	l/hr	500~2600

Detailed Images

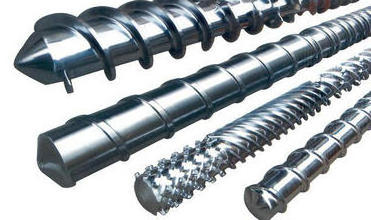

Multi-type Screw

1. Make sure most of plastic materical can be mold by our machine.

2. Stable performance and quailty product.

Electric Unit

1. Top brands electric parts supporting.
2. High class color screen controller.
3. Three color tower light with alarm.
4. Euro standard safety standard.

User-friendly Design

1. Equiping infrared sensors and double start button to prevent occupational injury.

2. Patented machine shell make sure easily check out and maintain.

Injection Unit

1. Quick response checking valve.
2. Dual alloy 39CrMoAl screw and barrel.
3. High response and double cylinder injection system with automatic conversion function.
4. Screw back pressure control.

Application

Packing & Delivery

Packaging Details:

♦. Standard Packing: Plastic film is wrapped on the machine;

♦. Outside wooden Package

Delivery Time: 15 days only
