Quick Details
-
Dimension(Long * Breadth * High):
-
8535*3200*3455mm
-
Machine Weight:
-
20000 kg
-
Bucket capacity:
-
3.5m³
-
Marketing Type:
-
New Product 2023
-
Rated Load:
-
6300kg
-
Dumping height:
-
3180mm
-
Dumping distance:
-
1185mm
-
Engine model:
-
WD10G240E201
-
Engine type:
-
Inline, four-stroke, water-cooled, turbocharged, direct injection
-
Gearbox type:
-
Electro-hydraulic fixed shaft shift
-
Gears:
-
Forward 4 / reverse 4
-
Tyre size:
-
23.5-25PR
-
Air conditioner:
-
Cooling and heating
-
Operation mode:
-
FNR pilot control
Quick Details
-
Engine Brand:
-
WEICHAI
-
Power:
-
178kW
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
8535*3200*3455mm
-
Machine Weight:
-
20000 kg
-
Bucket capacity:
-
3.5m³
-
Marketing Type:
-
New Product 2023
-
Rated Load:
-
6300kg
-
Dumping height:
-
3180mm
-
Dumping distance:
-
1185mm
-
Engine model:
-
WD10G240E201
-
Engine type:
-
Inline, four-stroke, water-cooled, turbocharged, direct injection
-
Gearbox type:
-
Electro-hydraulic fixed shaft shift
-
Gears:
-
Forward 4 / reverse 4
-
Tyre size:
-
23.5-25PR
-
Air conditioner:
-
Cooling and heating
-
Operation mode:
-
FNR pilot control
Contact
Jasmine Lin / Sales Manager
Email:
jasmine@evangelchina.com
Wechat/Mobile/Whatsapp: 008617863007233
Evangel Industrial (Shanghai) Co., Ltd.
Evangel International Machinery Ltd.
Add: Suite 2806, Super Ocean Finance Center, 2067 West Yan'an Road, Shanghai 200336, China
Web: www.evangelchina.com
Wechat/Mobile/Whatsapp: 008617863007233
Evangel Industrial (Shanghai) Co., Ltd.
Evangel International Machinery Ltd.
Add: Suite 2806, Super Ocean Finance Center, 2067 West Yan'an Road, Shanghai 200336, China
Web: www.evangelchina.com
Details Images
Product Features
01.
Advanced:
High-power electronically-controlled engine with high-pressure common rail, featuring a large torque reserve coefficient and excellent power performance.
MYF220AT heavy-duty electronically-controlled transmission, incorporated with world-class technology and independent intellectual property rights, including 7 proprietary technologies and 2 invention patents.
Advanced full-flow control mode, enable simple, comfortable and efficient control; integrated with independent hydraulic buffer to ensure excellent gear buffering effect.
Electronically-controlled fixed & shaft power shift transmission with high reliability and long service life;
02.
Energy-saving:
Equipped with a turbocharged engine for environmental protection, energy conservation, and strong power.
Electronically-controlled fixed & shaft power shift transmission, highly efficient and energy-saving;
Electronically-controlled fixed & shaft power shift transmission, highly efficient and energy-saving;
Dual-pump confluence and equivalent unloading technology with steering priority valve, plus load-sensing full hydraulic steering system with coaxial flow amplification, energy-saving and efficient.
03.
Reliable:
Hydraulic pipeline sealing structure comprehensively upgraded to reduce pipeline connection leakage and improve hydraulic system reliability;
Articulation joint of the frame adopts a joint bearing to ensure reliable articulation of the front and rear frames;
Articulation joint of the frame adopts a joint bearing to ensure reliable articulation of the front and rear frames;
04.
High efficiency:
Dual-pump confluence and equivalent unloading technology with steering priority valve, plus load-sensing full hydraulic steering system with coaxial flow amplification, increasing the tractive force of the machine in combined operating conditions and improving the operation efficiency.
Optimized operating tools designed with Z-type reverse six-linkage structure integrated with single rocker arm, short tie rod and horizontal boom cylinder, featuring superior operating performance and efficiency, and enabling full use of engine power;
Product Paramenters
|

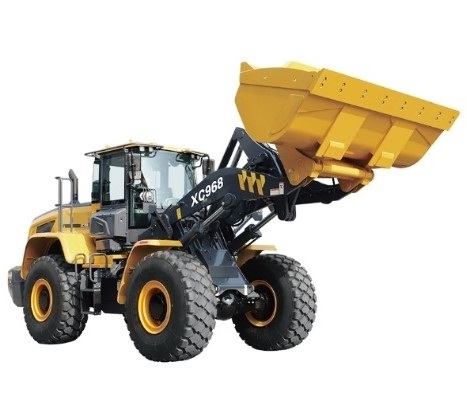

Top Brand 6Ton Wheel Loader XC968
|
|
|
||
|
Description
|
Unit
|
Parameter value
|
||
|
Rated operating load
|
kg
|
6300
|
||
|
Bucket capacity
|
m³
|
3.5
|
||
|
Machine weight
|
kg
|
20000±300
|
||
|
Dumping height
|
mm
|
3180
|
||
|
Dumping distance
|
mm
|
1185
|
||
|
Wheel base
|
mm
|
3450
|
||
|
Wheel track
|
mm
|
2265
|
||
|
Boom lifting time
|
S
|
≤5.6
|
||
|
Max.breakout force
|
kN
|
175±5
|
||
|
Max.horse power
|
kN
|
≥200
|
||
|
Total hydraulic cycle time
|
s
|
≤10
|
||
|
Min. turning radius over tyres
|
mm
|
6193
|
||
|
Articulation angle
|
°
|
40
|
||
|
Gradeability
|
°
|
29
|
||
|
Tyre size
|
|
23.5-25PR
|
||
|
Overall machine dimension L×W×H
|
mm
|
8535×3200×3455
|
||
|
Model
|
|
WD10G240E201
|
||
|
Emission standards
|
|
Emission 2
|
||
|
Rated Power/Speed
|
kW/rpm
|
178/2200
|
||
|
Travel Speed
|
Ⅰ-gear(F/R)
|
6.0/6.0 km/h
|
||
|
|
Ⅱ-gear(F/R)
|
11.0/11.0 km/h
|
||
|
|
III-gear(F/R)
|
20.0/20.0 km/h
|
||
|
|
IV-gear(F/R)
|
34.0/34.0 km/h
|
||
