- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
SR
-
Single Pulse Energy:
-
55J
-
Pulse Width:
-
0.1-15.0ms
-
Wavelength:
-
1064nm
-
Focal Spot Diameter:
-
0.1-1.5mm
-
Weight (KG):
-
64 KG
-
Core Components:
-
Other
-
Suitable for welding:
-
Gold/silver/titanium/platinum jewelries
-
The laser wavelength:
-
1064nm
-
Power consumption of the host:
-
≤2.8KW
-
Power demand:
-
220V±5% 50HZ
-
Cooling method:
-
Water Cooling
-
Main machine dimensions:
-
720*420*590mm
-
Ambient temperature:
-
≤30 ° C
-
Weight after packing:
-
64KG
-
Product name:
-

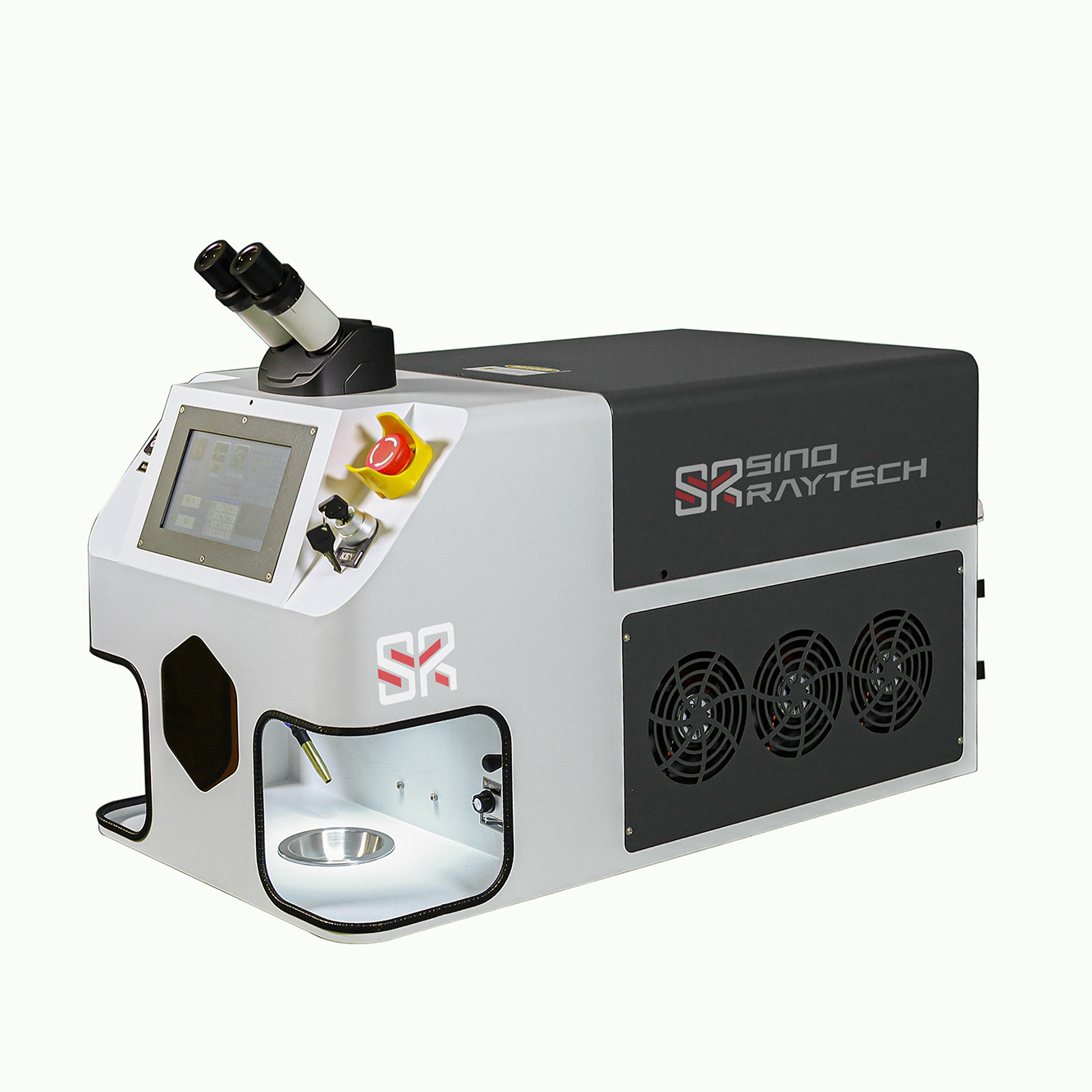

Desktop jewelry laser welding machine
-
Laser type:
-
Nd:YAG
Quick Details
-
Max. Output Power:
-
150W
-
Use:
-
Matel Welding
-
Laser Source Brand:
-
INDEPENDENT RESEARCH
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
SR
-
Single Pulse Energy:
-
55J
-
Pulse Width:
-
0.1-15.0ms
-
Wavelength:
-
1064nm
-
Focal Spot Diameter:
-
0.1-1.5mm
-
Weight (KG):
-
64 KG
-
Core Components:
-
Other
-
Suitable for welding:
-
Gold/silver/titanium/platinum jewelries
-
The laser wavelength:
-
1064nm
-
Power consumption of the host:
-
≤2.8KW
-
Power demand:
-
220V±5% 50HZ
-
Cooling method:
-
Water Cooling
-
Main machine dimensions:
-
720*420*590mm
-
Ambient temperature:
-
≤30 ° C
-
Weight after packing:
-
64KG
-
Product name:
-
Desktop jewelry laser welding machine
-
Laser type:
-
Nd:YAG
Product Description
Specification
|
Laser wavelength
|
1064nm
|
|
Maximum laser power
|
150W
|
|
Maximum laser pulse energy
|
45J
|
|
Pulse width
|
0.1-15.0ms
|
|
Pulse frequency
|
1.0-15.0Hz graded adjustable
|
|
Aiming and positioning
|
Microscope + CCD camera system
|
|
Adaptable to welding
|
All kinds of metal jewelry welding, repairing
|
|
Host power consumption
|
≤2.8KW
|
|
Power demand
|
220V±5% ，50HZ
|
|
Cooling method
|
Water circulation air-cooled
|
|
Dimensions of the host (L*W*H)
|
720×420×590mm
|
|
Machine weight
|
50 kg
|
|
Ambient temperature
|
≤30℃
|
|
Weight after packing
|
80KG
|
