Quick Details
-
Dimension(L*W*H):
-
140*800*150 cm
-
Weight:
-
1300Kg
-
Power (kW):
-
2.2
-
Total Pressure:
-
25T~250T
-
Plate Size:
-
350*350
-
Plate Distance(mm):
-
125
-
Piston Stroke (mm):
-
LED display,time range 0.1S~99min~9.9hr
-
Working Layer No:
-
2
-
Pressure plate size:
-
250
-
Main Motor Power:
-
2.2KW
-
Product name:
-
Rubber Plate Vulcanizing Press Machine
-
Keyword:
-
Plate Vulcanizing
-
Power supply:
-
380V
-
Marketing Type:
-
Ordinary Product
-
After Warranty Service:
-
Online support, Spare parts, Video technical support
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NEWGOER
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
140*800*150 cm
-
Weight:
-
1300Kg
-
Power (kW):
-
2.2
-
Total Pressure:
-
25T~250T
-
Plate Size:
-
350*350
-
Plate Distance(mm):
-
125
-
Piston Stroke (mm):
-
LED display,time range 0.1S~99min~9.9hr
-
Working Layer No:
-
2
-
Pressure plate size:
-
250
-
Main Motor Power:
-
2.2KW
-
Product name:
-
Rubber Plate Vulcanizing Press Machine
-
Keyword:
-
Plate Vulcanizing
-
Power supply:
-
380V
-
Marketing Type:
-
Ordinary Product
-
After Warranty Service:
-
Online support, Spare parts, Video technical support
-
Local Service Location:
-
None

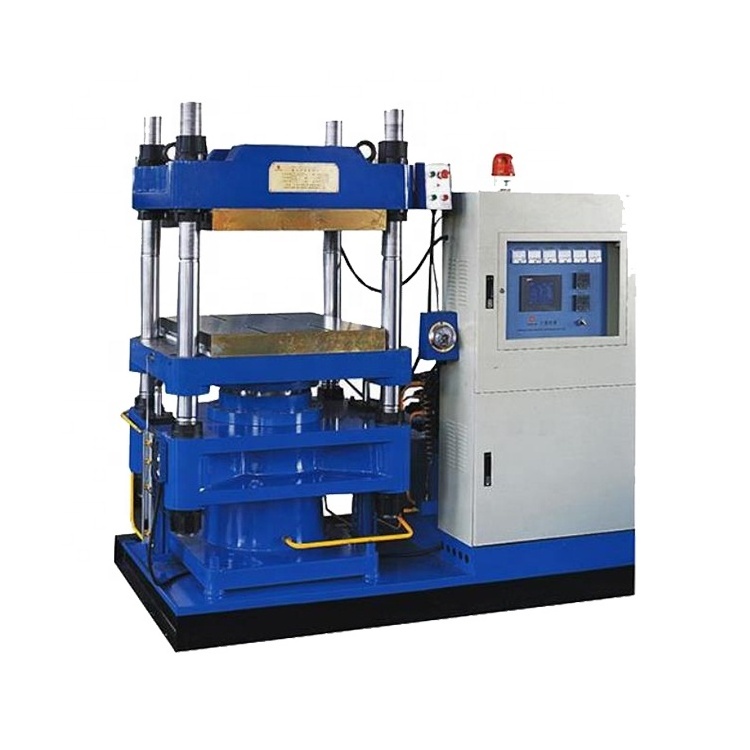

Rubber Plate Vulcanizing Press Machine,
Lab Rubber Making Machine Molding Machine Factory
Summary:
Rubber Vulcanizer is mainly used for all kinds of suitable model, rubber products, plastic products, is also available for laboratory and research institutions for suppressing specimens. Vulcanizing machine structure is column type structure, form for the downstroke. The machine adopts tubular electricity heating element, do not need to boiler, reduce air pollution and keep the workshop clean, easy to operate, safe and reliable. It can use single, convenient for the user. Rubber Vulcanizer is mainly used for rubber vulcanization, thermosetting plastics and insulation products of pression, This test machine has device of pressure, time, temperature automatic control device, can be realized clamping, regular work cycle, and can automatically pressure compensating.
Speficiations:
|
Model |
DZ-PB25 |
DZ-PB50 |
DZ-PB100 |
DZ-PB250 |
|
Total Pressure (mn) |
0.25 (25T) |
0.50 (50T) |
1.00 (100T) |
2.50 (250T) |
|
Plate Size (mm) |
350X350 |
400X400 |
600X600 |
900X900 |
|
Plate Distance(mm) |
125 |
125 |
125 |
125 |
|
Working Layer No |
2 |
2 |
2 |
2(4) |
|
Piston Stroke (mm) |
250 |
250 |
250 |
400 |
|
Unit Area Pressure (kg/cm2) |
20 |
31 |
28 |
31 |
|
Main Motor Power (Kw) |
2.2 |
2.2 |
2.2 |
5.5 |
|
Overall Dimension (mm) |
1300X800X1500 |
1500X600X1500 |
1600X750X1550 |
138X1320X2450 |
|
Weight(Kg) |
1150 |
2100 |
3000 |
8500 |
Features:
1. Mainly consists of three parts: the host, hydraulic systems, electrical control system.
2. It has device of pressure, time, automatic temperature control device can be realized clamping boost, the timing of the work cycle, and can automatically pressure compensating.
3. High production efficiency,high quality and stability.
4. The material is uniformly.
5. Wear-resistant and anti-corrosion.
