Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WINSCOLOR
-
Voltage:
-
220v
-
Dimensions(L*W*H):
-
5.3*4.1*1.65m
-
Weight:
-
2500 KG
-
Marketing Type:
-
Hot Product 2024
-
Working Table:
-
Vacuum Sucking
-
Life of printed image:
-
3 years(outdoor),10years(indoor)
-
Ink Characteristics:
-
UV Curing Ink
-
Product name:
-
UV Flatbed Printer
-
Printhead Cleaning System:
-
Automatic Cleaning System
-
Application:
-
Indoor Outdoor Advertisement
-
Printing material:
-
Flatbed Material
-
Print head:
-
I3200
-
Ink:
-
Sublimation Ink
-
Key words:
-
Inkject Printer
Quick Details
-
Print Dimension:
-
2-12.7mm, 3300mm*2100mm*
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WINSCOLOR
-
Voltage:
-
220v
-
Dimensions(L*W*H):
-
5.3*4.1*1.65m
-
Weight:
-
2500 KG
-
Marketing Type:
-
Hot Product 2024
-
Working Table:
-
Vacuum Sucking
-
Life of printed image:
-
3 years(outdoor),10years(indoor)
-
Ink Characteristics:
-
UV Curing Ink
-
Product name:
-
UV Flatbed Printer
-
Printhead Cleaning System:
-
Automatic Cleaning System
-
Application:
-
Indoor Outdoor Advertisement
-
Printing material:
-
Flatbed Material
-
Print head:
-
I3200
-
Ink:
-
Sublimation Ink
-
Key words:
-
Inkject Printer
Products Description
Printhead
RICOH GEN5/GEN6
Printhead 2-8 units
Printing Areas
Glass/Ceramic/Decoration/Advertising&Sign industry
Print Effect
Color, white,varnish and 3D
embossing effect optional
Product Paramenters

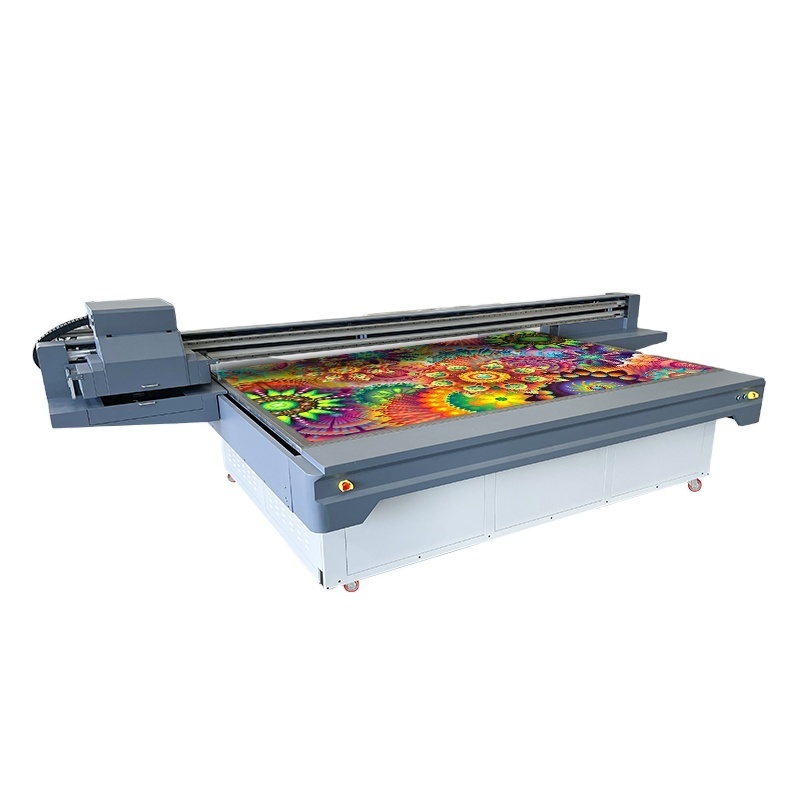

YC3321L UV Flatbed Printer
①UV LED Lamp
④
Industrial print head
②Anti-static, Anti-crash
⑤Universal wheel
③TAIWAN HIWIN guide rai
⑥
Switch and power switch area
|
Specifications
|
|
|
|
|
||||
|
Product Model
|
YC3321L
|
|
|
|
||||
|
Printhead Type
|
RICOH GEN5/GEN6/KM1024I/SPT1024GS
|
|
|
|
||||
|
Printhead Number
|
2-8 heads
|
|
|
|
||||
|
Ink Characteristics
|
UV Curing Ink (VOC Free)
|
|
|
|
||||
|
Ink reservoirs
|
Refillable on the fly while printing/2500ml per color
|
|
|
|
||||
|
LED UV Lamp
|
more than 30000-hours life made in Korea
|
|
|
|
||||
|
Printhead arrangement
|
CMYK LC LM W V Optional
|
|
|
|
||||
|
Printhead Cleaning System
|
Automatic Cleaning System
|
|
|
|
||||
|
Guide Rail
|
TAIWAN HIWIN/THK Optional
|
|
|
|
||||
|
Working Table
|
Vacuum Sucking
|
|
|
|
||||
|
Printing Size
|
3300*2100mm
|
|
|
|
||||
|
Print Interface
|
USB2.0/USB3.0/Ethernet Interface
|
|
|
|
||||
|
Media Thickness
|
0-100mm
|
|
|
|
||||
|
Print Resolution& Speed
|
720X600dpi
|
4PASS
|
15-33sqm/h
|
(GEN6 40% faster than this speed)
|
||||
|
|
720X900dpi
|
6PASS
|
10-22sqm/h
|
|
||||
|
|
720X1200dpi
|
8PASS
|
8-18sqm/h
|
|
||||
|
Life of printed image
|
3 years(outdoor),10years(indoor)
|
|
|
|
||||
|
File Format
|
TIFF,JPEG,Postscript,EPS,PDF etc.
|
|
|
|
||||
|
RIP Software
|
Photoprint/RIP
|
|
|
|
||||
|
Power Supply
|
220V 50/60Hz(10%)
|
|
|
|
||||
|
Power
|
5000W
|
|
|
|
||||
|
Operation Environment
|
Temperature 20 to 30 ℃,Humidity 40% to 60%
|
|
|
|
||||
|
Machine Dimension
|
5.3*4.1*1.65m
|
|
|
|
||||
|
Packing Dimension
|
5.52*2.25*1.55m
4.3*0.85*1.1m |
|
|
|
||||
|
Weight
|
2500kg
|
|
|
|
||||
|
Warranty
|
12 months exclude the consumables
|
|
|
|
||||
|
Above specification subject to change without notice beforehand
|
|
|
|
|
||||
Machine Details
Ricoh Print Head
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution.It is suitable for long-time working, 24 hours running.
Vacuum Adsorption Platforem
Hard oxidized honeycomb hole sectiona-lized adsorption platform,strong adsorp
tion capacity,low motor consumption, customers can adjust the adsorption a
rea according to the side of the printing material,the platform surface hardness is high,scratch resistance,corrosion resistance.
German IGUS Energy Chain
Germany IGUS Mute Drag ChainUtilize
Germany IGUS mute drag chain on X axis,ideal for protection of cable and tubes under high speed motion.With high performance,low noise,make the working environment more comfortable.
High Precision Aluminum Beam
Equipped with self-researched cold draw and high-strength aerial
Aluminium
mate-rial,it ensures printing precision and stability,guarantee the perfect output.
Panasonic Servo Motors And Drives
Using Panasonic servo motor and driver,effectively overcome the step loss problem of step motor.High speed printing performance is good,low speed running is stable,dynamic response is timely,running stable.
Universal wheel
Large capacity ink tank and ink shortage alarm system
Korea UV LED LAMP
Temperature
Control System
Negative Pressure Display
Secondary Ink Cartridge
Ricoh Piezoelectric Nozzle
Adopt Ricoh piezoelectric nozzle, one nozzle 384/1280 nozzles, the accuracy can reach 1440dpi, the new variable ink drop technology, provide 7/14/21pl ink dot size, can achieve high speed or low reso-lution cases can also easily achieve high quality picture, to achieve no point printing effect.
CMYK+W+V ALL three colors at once
The use of gloss oil makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect the coating, make the product more durable.
Printing Samples
Wood
PVC
Glass Photo
Mouse Pad
Car Sticker
Wall Background
Acrylic
Plastic
Fiber
Decoration
Lamp-box Fabric
Advertising Cloth
