Quick Details
-
Productivity:
-
12m3/h- 55m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaodetec
-
Weight:
-
2500 kg
-
Dimension(L*W*H):
-
4300*1670*1680mm
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
diesel concrete pump
-
Delivery capacity:
-
12m3/h- 55m3/h
-
Max. aggregate size:
-
30/25mm
-
Distribution valve form:
-
S valve
-
Expansion slump:
-
100-230mm
-
Power:
-
Diesel power, 4-cylinder
-
Loading volume:
-
0.4m3
-
Loading height:
-
1100mm
-
Delivery pressure:
-
4MPa-7MPa
-
Application:
-
Construction Projects
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
120M-150M
-
Max. horizontal conveying distance:
-
350M-400M
-
Productivity:
-
12m3/h- 55m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaodetec
-
Weight:
-
2500 kg
-
Dimension(L*W*H):
-
4300*1670*1680mm
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
diesel concrete pump
-
Delivery capacity:
-
12m3/h- 55m3/h
-
Max. aggregate size:
-
30/25mm
-
Distribution valve form:
-
S valve
-
Expansion slump:
-
100-230mm
-
Power:
-
Diesel power, 4-cylinder
-
Loading volume:
-
0.4m3
-
Loading height:
-
1100mm
-
Delivery pressure:
-
4MPa-7MPa
-
Application:
-
Construction Projects
Products Description

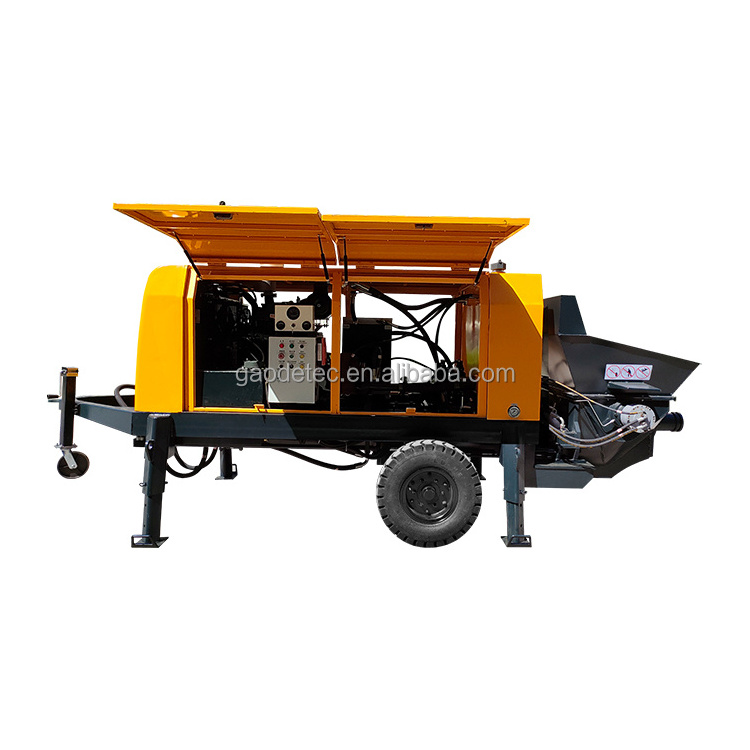

Diesel concrete pump description
A concrete pump is a machine used for transferring liquid concrete to a specific place on a large jobsite in a precise manner.
1. It is commonly used in construction projects to efficiently and accurately place concrete.
2. They work by using steel or flexible concrete placing hoses to transfer the concrete from one area to another.
3. Concrete Pumps come in a variety of sizes to accommodate the rate of output per hour and dumping distance.
4. We have
7.5m3/h-80m3/h
electric or diesel engine
concrete pump for option. We also have concrete mixer with pump.
5. We can also
customize
according to customer requirements.
Technical Data
|
Model
|
|
HBT20D
|
HBT30D
|
HBT40D
|
HBT60D
|
||||
|
Theoretical delivery capacity
|
high pressure
|
12m3/h
|
16m3/h
|
23m3/h
|
27m3/h
|
||||
|
|
low pressure
|
21m3/h
|
30m3/h
|
48m3/h
|
55m3/h
|
||||
|
Theoretical delivery pressure
|
high pressure
|
7MPa
|
8MPa
|
11MPa
|
13MPa
|
||||
|
|
low pressure
|
4MPa
|
4MPa
|
5.3MPa
|
6.2MPa
|
||||
|
Horizontal conveying height
|
|
350m
|
400m
|
400m
|
400m
|
||||
|
Vertical conveying height
|
|
120m
|
120m
|
150m
|
150m
|
||||
|
Rated power of main power system
|
|
40Kw
|
46Kw
|
66Kw
|
129Kw
|
||||
|
Distribution valve form
|
|
S valve
|
S valve
|
S valve
|
S valve
|
||||
|
The maximum aggregate content of gravel/ pebbles
|
|
30/25mm
|
30mm
|
35/40mm
|
40/45mm
|
||||
|
Expansion slump
|
|
100-230mm
|
100-230mm
|
100-230mm
|
100-230mm
|
||||
|
Power
|
|
Diesel power, 4-cylinder
|
Diesel power, 4-cylinder
|
Diesel power, 4-cylinder
|
Diesel power, 4-cylinder
|
||||
|
Loading volume
|
|
0.4m3
|
0.4m3
|
0.5m3
|
0.5m3
|
||||
|
Loading height
|
|
1100mm
|
1100mm
|
1100mm
|
1100mm
|
||||
|
Host mass
|
|
2500kg
|
3100kg
|
3360kg
|
6000kg
|
||||
|
Overall dimensions L* W * H
|
|
4300*1670*1680mm
|
4300*1670*1680mm
|
4850*1670*2070mm
|
6500*2160*2600mm
|
||||
Product Details
Concrete pump advantage
1.
Air-cooled heat dissipation
, no water source required.
2.
Wireless remote control
.
3. Increase the capacity of the hydraulic oil tank.
4. Can be towed in close distance.
5.
Fully automatic PLC control
: the whole machine is controlled by PLC computer, with more functions and simplified operation.
6.
Carefully selected accessories
from world-renowned brands.
7.
Vibrating screen
, digital analysis of force, not easy to deform and store materials.
8.
New type of constant pressure reversing S-pipe valve
: stable reversal, reduced backflow, and continuous and stable material transportation.
9.
Anti-pump function
: automatic overflow protection to prevent pipeline blockage.
10. High pressure pumping:
vertical pumping 110~180 meters, horizontal pumping 300~800 meters
.
Application
|
Concrete pumps are widely used in the following scenarios
|
|
|
|
1. Construction sites
|
Concrete pumps are often used in large construction sites, such as
high-rise buildings, bridges, tunnels
, etc. It can quickly and efficiently transport concrete to the location where construction is required, improving construction efficiency.
|
|
|
2. Foundation engineering
|
In foundation engineering, concrete pumps can transport concrete to deeper underground locations, such as
basements, underground pipes
, etc. It can solve the problems of difficulty and inefficiency of traditional manual handling of concrete.
|
|
|
3. Hard-to-reach construction sites
|
Some construction sites cannot use traditional mixer trucks to directly deliver concrete due to
terrain, narrow passages, or other restrictions. In this case, the concrete pump can transport concrete to the target location through a delivery pipeline that is tens of meters long.
|
|
|
4. Long-distance transportation
|
For projects that require long-distance transportation of concrete, such as
large-scale water
conservancy projects, tunnel projects
, etc., the concrete pump can transport concrete to a distance of hundreds of meters or even thousands of meters through its high-pressure delivery system.
|
|
