Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FRED
-
Product name:
-
front end loader small with mower attachements
-
Match HP:
-
25-80HP
-
Color:
-
Red,Blue,Black,other
-
certificate:
-
ce
-
Wheel drive:
-
4WD
-
Usage:
-
Farm Tractor
-
Fitted Power:
-
18-100hp
-
After Warranty Service:
-
Spare parts
-
Service:
-
Video technical support
-
After-sales Service Provided:
-
Overseas third-party support available
Quick Details
-
Weight (KG):
-
500
-
Type:
-
Backhoe Loader
-
Use:
-
Farm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FRED
-
Product name:
-
front end loader small with mower attachements
-
Match HP:
-
25-80HP
-
Color:
-
Red,Blue,Black,other
-
certificate:
-
ce
-
Wheel drive:
-
4WD
-
Usage:
-
Farm Tractor
-
Fitted Power:
-
18-100hp
-
After Warranty Service:
-
Spare parts
-
Service:
-
Video technical support
-
After-sales Service Provided:
-
Overseas third-party support available

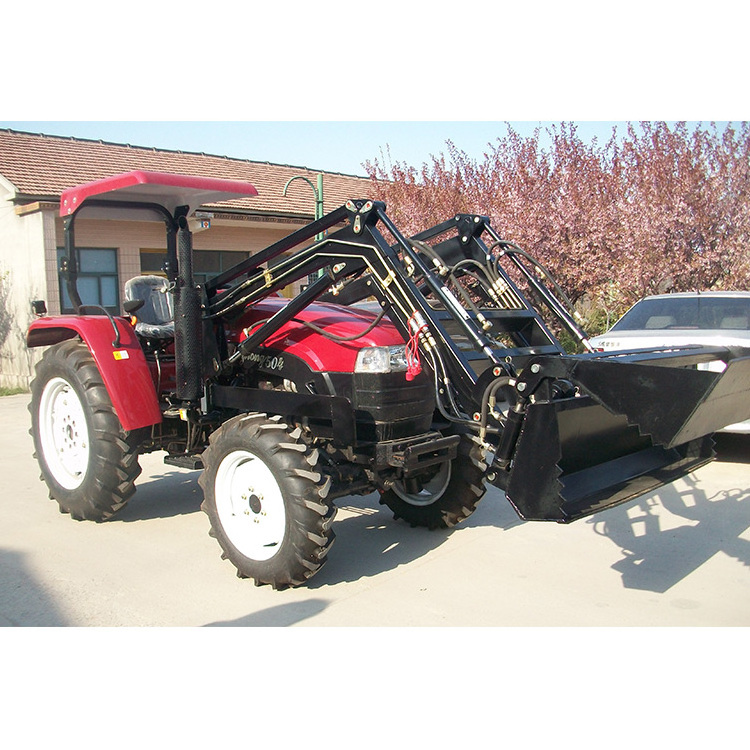

China Factory Best Selling Backhoe Attachment Mini Wheel Farm Loader Farm Front End Loader For Mini 4wd 25hp Tractor
Main Features
1.Front end loader farm tractor with 4 in 1 bucket
2.Quick connect coupling
3.Blance pole
4.CE certifica
5.Front end loader farm tractor
2.Quick connect coupling
3.Blance pole
4.CE certifica
5.Front end loader farm tractor
|
Type
|
TZ03
|
TZ04
|
TZ06
|
TZ08
|
TZ10
|
|
Fitted Power (hp)
|
18-30
|
30/35/40/45/50
|
60/70
|
70-90
|
80-100
|
|
Rated Capacity (cbm)
|
0.2
|
0.23
|
0.43
|
0.6
|
0.65
|
|
Rated load (kg)
|
300
|
400
|
800
|
1000
|
1200
|
|
Uninstall Height Max. (mm)
|
1800
|
2000
|
2200
|
2400
|
2400
|
|
Unload angle
|
45°
|
45°
|
45°
|
45°
|
45°
|
|
Uninstall Distance Max. (mm)
|
650
|
900
|
960
|
1000
|
1000
|
|
Time for bucket lifting (Seconds)
|
6
|
7
|
8
|
8
|
8
|
|
Max. Digging depth (mm)
|
100
|
140
|
160
|
160
|
170
|
|
Swing angle (°)
|
160°
|
160°
|
160°
|
160°
|
160°
|
|
Valve standard press
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
16 Mpa
|
|
Bucket width
|
260 mm
|
300 mm
|
400 mm
|
450 mm
|
480 mm
|
|
Bucket volume
|
0.028 m3
|
0.03 m3
|
0.036 m3
|
0.048 m3
|
0.054 m3
|
|
Weight
|
340 kgs
|
520 kgs
|
550 kgs
|
610 kgs
|
720 kgs
|
