Quick Details
-
Bending Precision (Deg):
-
1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HG
-
Year:
-
2024
-
Power (kW):
-
3
-
Weight (KG):
-
300
-
Marketing Type:
-
Hot Product 2024
-
Name:
-
Square Pipe Bending Machine digital Steel Bending Machine
-
Application:
-
Furniture pipe industry
-
Model:
-
HG-51
-
Voltage:
-
380V
-
Bending diameter:
-
10-76mm
-
Maximum tube thickness:
-
4mm
-
Spindle speed:
-
3200RPM
-
Motor power:
-
4kw
-
Supporting frame length:
-
can be customized
-
Weight:
-
300kg
Quick Details
-
Machine Type:
-
bending machine
-
Bending Radius (mm):
-
30 - 300
-
Max. Bending Angle (Deg):
-
300
-
Bending Precision (Deg):
-
1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HG
-
Year:
-
2024
-
Power (kW):
-
3
-
Weight (KG):
-
300
-
Marketing Type:
-
Hot Product 2024
-
Name:
-
Square Pipe Bending Machine digital Steel Bending Machine
-
Application:
-
Furniture pipe industry
-
Model:
-
HG-51
-
Voltage:
-
380V
-
Bending diameter:
-
10-76mm
-
Maximum tube thickness:
-
4mm
-
Spindle speed:
-
3200RPM
-
Motor power:
-
4kw
-
Supporting frame length:
-
can be customized
-
Weight:
-
300kg
Product Description

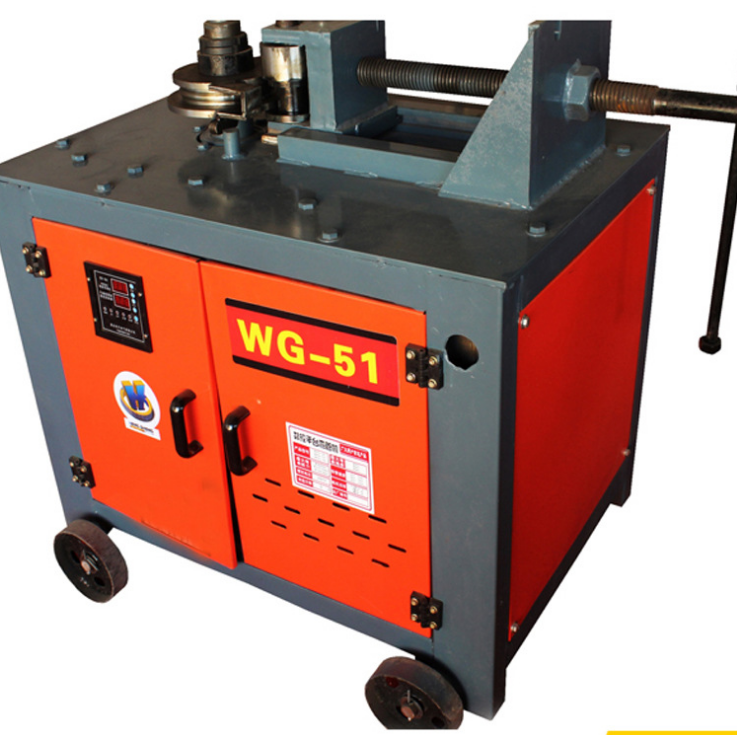

Hot selling small Square tube ninety degree right angle pipe bending machine CNC platform pipe bending machine
1: Mechanical transmission part: It adopts a self-developed and designed gearbox transmission, which is durable and strong. The wheel mold rotates during the bending process, and is matched with high-strength beading to shape the bent pipe in one go.
2: Circuit control part: It is controlled by an advanced embedded microcomputer intelligent control system, and the angle input is digitalized, making it easy to get started.
3: Product advantages reflected:
①: Made by experienced technical personnel, stable performance
②: Intelligent chip control, fast response, high sensitivity, and intelligent control system can be set up.
③: The encoder is used to control the angle, with accurate running angle, high repeatability and minimal error.
④: Solve the root causes of many problems such as large angle deviation, low repeatability, and inconvenient use due to the inability of "mechanical" control to stop the machine accurately.
Specification
|
Name
|
Square Pipe Bending Machine digital Steel Bending Machine for pipe and tube
|
|
|
|
|||
|
Model
|
JS-26
|
JS-38
|
JS-51
|
JS-76
|
|||
|
Bending diameter
|
≤26mm
|
≤38mm
|
≤51mm
|
≤76mm
|
|||
|
Thickness Scope
|
≤2mm
|
≤3mm
|
≤3mm
|
≤3mm
|
|||
|
High bending speed
|
10-20r/min
|
10-20r/min
|
4-6r/min
|
3-5r/min
|
|||
|
Bending Angles Quantity
|
9
|
9
|
9
|
9
|
|||
|
Max bending angle
|
180°
|
180°
|
180°
|
180°
|
|||
|
Min bending angle
|
5°
|
5°
|
5°
|
5°
|
|||
|
Motor Power
|
2.2kw
|
3kw
|
3kw
|
4kw
|
|||
|
Foot switch voltage
|
DC 5V
|
DC 5V
|
DC 5V
|
DC 5V
|
|||
|
Dimensions(mm)
|
850*600*850
|
920*650*850
|
930*680*850
|
940*750*850
|
|||
|
Weight
|
220KG
|
300kg
|
320kg
|
350kg
|
|||
Packing & Delivery
Standard export wooden case for
