Restrictive limit values necessitate the use of a portable flue/exhaust gas analyzer to reliably determine the exhaust gas
parameters in front of and after the after treatment system. In addition to the regular inspections for mechanical damage and
contamination, the flue gas measurement provides information about the efficiency and functional reliability of a system. The bus
function of the flue gas analyzer testo 350 allows flue/exhaust gas to be measured simultaneously in front of and after an exhaust
after treatment system;
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TESTO
-
Model Number:
-
350
-
Operating temperature:
-
-5 to +45 °C
-
Weight:
-
4800 g
-
Size:
-
330 x 128 x 438 mm
-
Product-/housing material:
-
ABS
-
Product colour:
-
Black
-
Protection class:
-
IP40
Quick Details
-
Type:
-
detector
-
Warranty:
-
1 year
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
TESTO
-
Model Number:
-
350
-
Operating temperature:
-
-5 to +45 °C
-
Weight:
-
4800 g
-
Size:
-
330 x 128 x 438 mm
-
Product-/housing material:
-
ABS
-
Product colour:
-
Black
-
Protection class:
-
IP40
Product Description

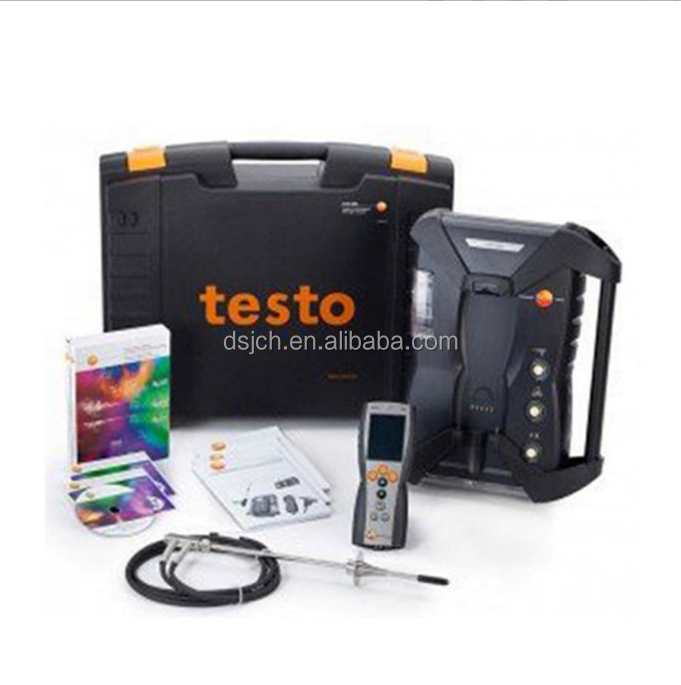

Testo 350 - Analysis Box for exhaust gas analysis systems
Ideal for professional flue gas analysis and industrial emissions measurement on industrial engines, burners, gas turbines and in thermal processes: the testo 350 flue gas analyzer performs a variety of measuring and analysis tasks, impresses over the long term thanks to its heavy-duty industrial design and is also suitable for complex data acquisition.
Increased measurement range for unlimited measurements even when gas concentrations are higher Easy-to-change gas sensors and easy access to wearing parts Sealed housing with built-in impact protection for use in harsh conditions Easy operation of the analyzer unit via Control Unit or easyEmission software (both products available separately) 。The testo 350 is a rugged, easy-to-use exhaust gas analyzer designed to meet the highest demands when it comes to carrying out precise industrial emission measurements and providing proper data administration. The Analysis Box can be operated with up to 6 gas sensors, 5 of which are optional. This allows you to select freely from sensors for CO, NO, NO2, SO2, H2S, CxHy and CO2.
* Using the testo 350 analyzer unit
The analyzer unit can be operated with the Control Unit and it can also be used in direct combination with a PC/notebook and the easyEmission software (via USB, Bluetooth® 2.0 or CANCase). After programming, the analyzer unit can carry out measurements and save the results autonomously. It is also possible to display or transmit the measurement data from the analyzer unit to the Control Unit or software. To send the measurement report straight away, you can also use our free App which turns your Android smartphone or tablet into a display device for the analyzer unit.
Delivery Scope
testo 350 analyzer unit, equipped with O2, including differential pressure sensor, temperature probe input type K NiCr-Ni and type S, Pt10Rh-Pt, Testo data bus connection, rechargeable battery, integrated combustion air probe (NTC), trigger input, measurement data memory, USB interface, carrying strap kit and calibration protocol.
Please note: The testo 350 analyzer unit can only be used in combination with the testo 350 Control Unit or the "easyEmission" software. These items are available separately.
The analyzer unit can be operated with the Control Unit and it can also be used in direct combination with a PC/notebook and the easyEmission software (via USB, Bluetooth® 2.0 or CANCase). After programming, the analyzer unit can carry out measurements and save the results autonomously. It is also possible to display or transmit the measurement data from the analyzer unit to the Control Unit or software. To send the measurement report straight away, you can also use our free App which turns your Android smartphone or tablet into a display device for the analyzer unit.
Delivery Scope
testo 350 analyzer unit, equipped with O2, including differential pressure sensor, temperature probe input type K NiCr-Ni and type S, Pt10Rh-Pt, Testo data bus connection, rechargeable battery, integrated combustion air probe (NTC), trigger input, measurement data memory, USB interface, carrying strap kit and calibration protocol.
Please note: The testo 350 analyzer unit can only be used in combination with the testo 350 Control Unit or the "easyEmission" software. These items are available separately.
Specification
|
Protection class
|
IP40
|
|
|
Connectable probes
|
1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x differential pressure
|
|
|
Product colour
|
Black
|
|
|
Battery type
|
lithium batteries
|
|
|
Battery life
|
5 h
|
|
|
Power supply
|
AC mains unit 100V to 240V (50 to 60 Hz)
|
|
|
DC electric tension input
|
11V to 40V
|
|
|
Pump flow
|
1 l/min. with through-flow monitoring
|
|
|
Hose length
|
16.2 m (corresponds to 5 probe hose extensions)
|
|
|
Max. pos. press./flue gas
|
0.725 psi / 50 mbar
|
|
|
Max. neg. press./flue gas
|
-4,351 psi / -300 mbar
|
|
|
Max. dust load
|
20 g/m³ dust in flue gas
|
|
|
Dewpoint calculation
|
0 °Ctd; 99 °Ctd
|
|
|
Max. humidity load
|
70 °C dewpoint temperature
|
|
|
Trigger input
|
Voltage 5 to 12 Volt (rising or trailing edge) pulse width > 1 sec load: 5 V/max, 5 mA, 12 V/max. 40 mA
|
|
|
Maximum
|
250,000 readings
|
|
|
Interface
|
data bus; Bluetooth®; USB; IR/IRDA interface; Mains connection; trigger input; Differential Pressure; probe input/ probe inputs;
DC-voltage input; dilution gas inlet for measurement range extension |
|
|
Storage temperature
|
-4.0° to 122.0 °F / -20 to +50 °C
|
|
|
Flue gas COlow (with H₂-compensation)
|
|
|
|
Measuring range
|
0 to 500 ppm
|
|
|
Accuracy
|
±5 % of mv (+40 to +500 ppm)
±2 ppm (0 to +39.9 ppm) |
|
|
Resolution
|
0.1 ppm (0 to +500 ppm)
|
|
|
Reaction time t₉₀
|
40 s
|
|
Application Scenes
Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis, air treatment and all other occasions that need to detect and analyze gas concentration.
Service measurement on after treatment systems
Official emissions measurement (compliance testing)
In most countries, operation of all types of industrial plants (e.g. large power stations, steelworks. cement works, glass works, and chemical plants), and local authority facilities, right through to small production sites is subject to strict regulations governing exhaust gas emissions into the atmosphere. Suitable measures are be taken to ensure and regularly verify that the components defined as pollutants do not exceed certain limit values in the flue gas.
Service measurement on industrial engines
The flue (exhaust) gas analyzer testo 350 is an important tool for adjusting a gas or diesel engine to optimum effect. The testo 350 is used, for example, during commissioning, at regular maintenance intervals, or for troubleshooting unstable operational
processes. Exhaust gas measurement is necessary to adjust the engine to optimum operating parameters while complying with the limit value regulations in force - this often entails measurements being taken over several hours.
processes. Exhaust gas measurement is necessary to adjust the engine to optimum operating parameters while complying with the limit value regulations in force - this often entails measurements being taken over several hours.
