Quick Details
-
Brand Name:
-
Cheery
-
Model Number:
-
ZZC-GK201
-
Oil Tank Capacity:
-
12L
-
Maximum Speed:
-
70km/h
-
Displacement:
-
200cc
-
Brake Type:
-
Hydraulic Brake
-
Name:
-
Sport go karts
-
Passenger:
-
2 seats
-
Engine:
-
200cc engine, 4 stroke
-
Start-Up:
-
Electric start / pull start
-
Color:
-
Customized
-
Product size:
-
2600*1600*1480mm
-
Package size:
-
2350*1420*880mm
-
Max Speed:
-
70km/h
-
Break:
-
Hydraulic disc type
-
Loading weight:
-
200kg
Quick Details
-
Type:
-
Pedal Go Karts
-
Engine Capacity:
-
200CC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Cheery
-
Model Number:
-
ZZC-GK201
-
Oil Tank Capacity:
-
12L
-
Maximum Speed:
-
70km/h
-
Displacement:
-
200cc
-
Brake Type:
-
Hydraulic Brake
-
Name:
-
Sport go karts
-
Passenger:
-
2 seats
-
Engine:
-
200cc engine, 4 stroke
-
Start-Up:
-
Electric start / pull start
-
Color:
-
Customized
-
Product size:
-
2600*1600*1480mm
-
Package size:
-
2350*1420*880mm
-
Max Speed:
-
70km/h
-
Break:
-
Hydraulic disc type
-
Loading weight:
-
200kg
Verified Supplier Zhengzhou Cheery Amusement Equipment Co., Ltd
Product Overview

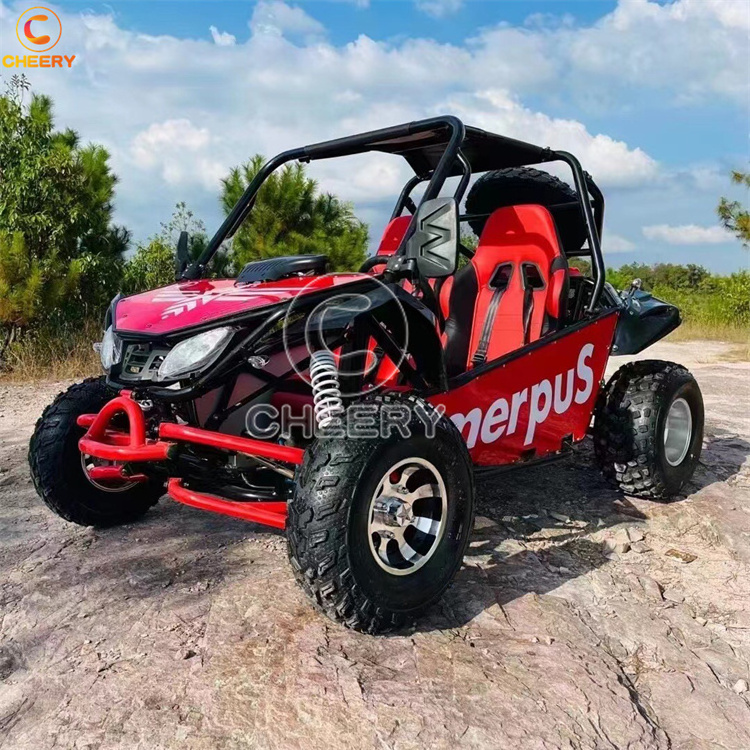

The latest four-wheel suspension sports kart
Amusement park rides go kart, also called go karting or racing go karts. It is a kind of racing games in the amusement park, funfair, playground, shopping mall, fitness and entertainment center,etc.
They can be divided into electric go karts and gas powered go karts according to the power type. Generally speaking, go karts can seat 1 or 2 passengers and they have advantages of long time stable performance, low cost maintenance fees. Gas powered go karting is equipped with 80cc, 200cc or 270cc gasoline engine, easy to operate. Electric go karting is equipped with lead-acid or lithium batteries. We can design the racing track according to your needs.
Hot selling go karts for amusement park is becoming more and more popular in amusement park all over the world and really welcomed by amusement park business owners.
Production Specifications
|
Item
|
Sport go kart
|
|
Engine
|
Single cylinder, oil-cooled, four-stroke,200CC
|
|
Fuel tank
|
15L
|
|
Economic fuel consumption
|
4.2L/100km
|
|
Max Speed
|
70KM/H
|
|
Product size
|
2630*1650*1480mm
|
|
Packing Size
|
2350*1420*880mm
|
|
Weight
|
260kg
|
|
Maximum load
|
200kg
|
|
Wheelbase
|
1760mm
|
|
Cushion height
|
450mm
|
|
Ground clearance
|
260mm
|
|
Transmission system
|
Shaft transmission
|
|
Brake
|
Hydraulic disc type
|
|
Start mode
|
Electric start / pull start
|
|
Shock absorption
|
Airbag shock absorption
|
|
Tire specification
|
10 inch aluminum wheel / tubeless tire
|
|
Control system
|
Left brake and right throttle just like a car
|
|
Clutch form
|
Dry automatic centrifugal type
|
|
Transmission form
|
Continuously variable D-N-R
|
|
Lubrication method
|
Pressure splash
|
|
Configuration
|
Windshield. Rain cloth (Optional:spare tire, 12-inch tires, 230cc engine)
|
Details Images
The advantages of four-wheel independent suspension:
1: Reduce the impact on the body and improve the adhesion of the wheels on the ground.
2: The front and rear airbags with moderate softness and rigidity are shock-absorbing to improve the comfort of the car.
3: Balance shaft oil-cooled engine, almost zero vibration of the whole vehicle.
4: The engine position is raised to better pass water on the road.
5: The left and right wheels jump separately, and the knife arm independent suspension does not interfere with each other, which can effectively reduce body tilt and vibration, absorb the vibration of the pothole road surface, improve driving comfort, and most importantly, improve the balance and stability of cornering.
