Quick Details
-
Engine Brand:
-
top brand
-
Travel Speed:
-
0~20km/h
-
Place of Origin:
-
China
-
Brand Name:
-
SHANTUI
-
Drum:
-
Tyre
-
Product name:
-
Road roller
-
Electrical system:
-
24V
-
Drive system:
-
Hydraulic pressure
Quick Details
-
Type:
-
Tire Roller
-
Power:
-
110 kw
-
Weight:
-
2.6T
-
Engine Brand:
-
top brand
-
Travel Speed:
-
0~20km/h
-
Place of Origin:
-
China
-
Brand Name:
-
SHANTUI
-
Drum:
-
Tyre
-
Product name:
-
Road roller
-
Electrical system:
-
24V
-
Drive system:
-
Hydraulic pressure
Road rollers belong to the category of road equipment in construction machinery, and are widely used in filling compaction operations of large-scale engineering projects such as high-grade highways, railways, airport runways, DAMS, stadiums, etc.
The drive system adopts the hydraulic torque converter with automatic stepless speed change performance and power shift transmission for transmission of power,featuring steady startup, flexible gearshift operations, and great reduction of operator’s labor strength.
The front four-tire and rear five-tire arrangement is adopted to achieve overlapped compacting effect in width-base plane, with the ground pressure up to 480KPa.
The compacting effect can be effectively controlled by adding/removing the counterweights to improve the working efficiency.
The oscillating mechanism is adopted for the front wheels to effectively and uniformly compacting the uneven working face and improve the working efficiency.
The independent control system with two steering wheels and two seats and the electric gearshift joystick feature flexible reversing operations and high convenience and reliability.
The design of streamline hood works with two-sided operation and wide-angle rearview mirrors to provide the operator with a broad visual field.
The front four-tire and rear five-tire arrangement is adopted to achieve overlapped compacting effect in width-base plane, with the ground pressure up to 480KPa.
The compacting effect can be effectively controlled by adding/removing the counterweights to improve the working efficiency.
The oscillating mechanism is adopted for the front wheels to effectively and uniformly compacting the uneven working face and improve the working efficiency.
The independent control system with two steering wheels and two seats and the electric gearshift joystick feature flexible reversing operations and high convenience and reliability.
The design of streamline hood works with two-sided operation and wide-angle rearview mirrors to provide the operator with a broad visual field.
Product features

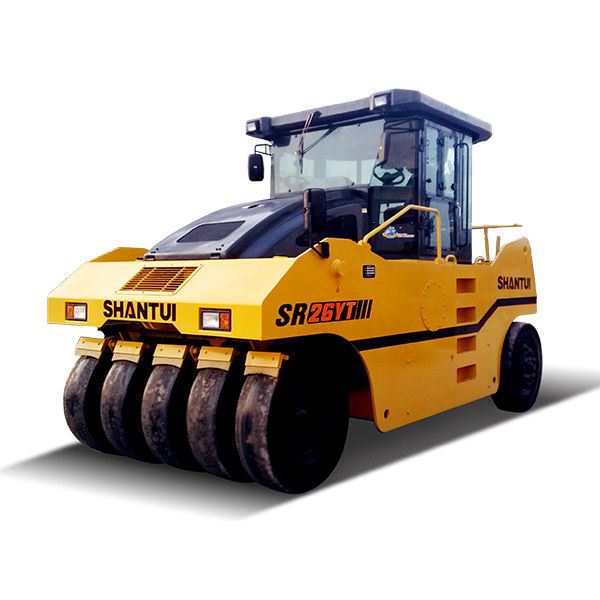

With electrohydraulic transmission control, torque converter, smooth, non-impact drive system for decreased shearing, double ground friction breaking torque, the Shantui SR26T is ready to hit the road and get the job done. Dual safety systems plus left and right directional foot accelerators, foot brake and electronic gauges help keep the SR26T productive. Powered by an in-line, water-cooled, four-cylinder turbo-charged direct-injection ShangchaiSC8D156G2B1 engine.
|
Length × width × height (mm)
|
5060×2592×3338
|
Minimum operating weight (kg)
|
16500
|
|
Maximum operating weight (kg)
|
30000
|
Weight of counterweight blocks (kg)
|
7400/11400
|
|
Weight of water counterweights (kg)
|
2150
|
Compacting width (mm)
|
2365
|
|
Ground pressure (KPa)
|
270-480
|
Front/rear tire overlap (mm)
|
70
|
|
Front wheel oscillation (mm)
|
±50
|
Gradeability (%)
|
20
|
|
Engine model
|
Shangchai SC8D156G2B1/
Shangchai SC8D180G2B1 |
Rated power/speed(kW/rpm)
|
115/2000 132/2000
|
|
Number of tires
|
4 front/5 rear
|
|
|
