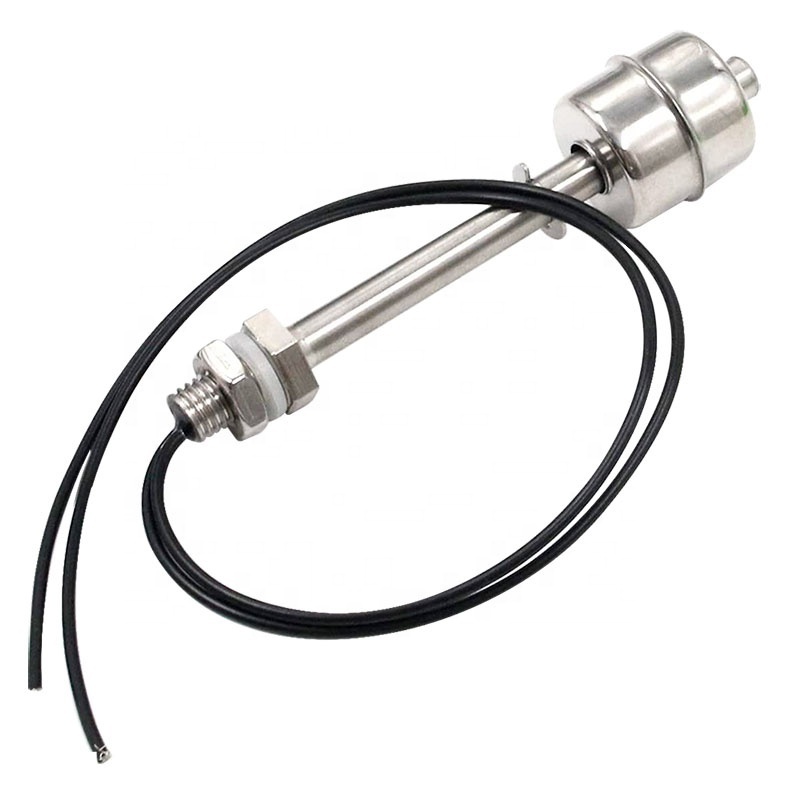

100mm Mini Liquid Water Level Sensor Stainless Steel Float Switch

100mm Mini Liquid Water Level Sensor Stainless Steel Float Switch

Specification:

Data Details for 1A1
Max Contact Rating:10W
Max Switch Voltage:110VDC
Max Switch Current:0.5A
Min Break Voltage:220VDC
Max Load Current:1.0A
Max Contact Resistance(do not include the wire):100mΩ
Temperature Rating:-30-125 °C
Float Ball Material:SUS304
Float Body Material:SUS304
Screw Nut Material:SUS304
E-Ring Material:SUS304
O-Ring Material:Silicon

Total Length: approx. 115mm

Body Length: approx. 100mm

Thread Size: approx. 10mm

Cable Length: approx. 350mm

Float Ball Size: approx. 28x28mm

Data Details for 2A1
Max Contact Rating: 50W
Max Switch Voltage: 220VDC
Max Switch Current: 1.5A
Min Break Voltage:300VDC
Max Carry Current: 3.0A
Max Contact Resistance(do not include the wire): 100 m Ω
Temperature Rating:-30~+125°C
Float Ball Material:SUS304
Float Body Material:SUS304
Screw Nut Material :SUS304
E-Ring Material:SUS304
O-Ring Material:Silicon

Thread Size: approx. 10mm

Cable Length: approx. 350mm

Float Ball Size: approx. 28x28mm

Features:
Float switch is a device used to sense the level of liquid in a tank. The switch may actuate a pump, an indicator, an alarm, or other device.

Use it with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks,

filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach, reef aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation line, in relays,or what ever your project may be,contains no mercury.

It can be easily converted from normally open to normally close by invertin the float. Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
