Quick Details
-
Elongation (≥ %):
-
NA
-
Place of Origin:
-
Fujian, China
-
Application:
-
Battery Cathode Materials
-
Grade:
-
Nickle
-
Ni (Min):
-
Customized
-
Model Number:
-
LITH-Nickel Foam2
-
Brand Name:
-
Lith
-
Thickness:
-
0.2-10mm
-
Purity:
-
≥99.8%
-
PPI:
-
110(50-130PPI can be customized)
-
Areal density:
-
350±20g/m²
Quick Details
-
Resistance (μΩ.m):
-
NA
-
Powder Or Not:
-
Not Powder
-
Ultimate Strength (≥ MPa):
-
NA
-
Elongation (≥ %):
-
NA
-
Place of Origin:
-
Fujian, China
-
Application:
-
Battery Cathode Materials
-
Grade:
-
Nickle
-
Ni (Min):
-
Customized
-
Model Number:
-
LITH-Nickel Foam2
-
Brand Name:
-
Lith
-
Thickness:
-
0.2-10mm
-
Purity:
-
≥99.8%
-
PPI:
-
110(50-130PPI can be customized)
-
Areal density:
-
350±20g/m²
5ppi-300ppi Custom Nickel Foam Nickel Metal Foam Open Cell Ni Foam Can Be Cut For Free
Quantity Discount is Available: >5pcs, 15% OFF
Quantity Discount is Available: >10pcs, 25% OFF and Free Shipping
Introduction
Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness.
Usefulness: (Various shapes can be produced)
1. Used as the base plate/substrate of positive electrode in Ni-MH / Ni-Cd battery, Supercapacitor.
2. Filtration materials of air / oil / smoke etc.
3. Porous electrode in Galvano-Chemistry Engineering.
4. Elimination of heat.
5. Amortization materials.
6. Noise-Absorbing and Vibration-Absorbing materials.
7. Electromagnetic shielding materials.
8. Catalyst carrier.
9. Precious metal recovery.
Specifications
|
Type |
Open cell |
|
Purity |
> 99% |
|
Form |
Sheet or Roll, depending on size & thickness |
|
Cell Size (PPI) |
10-150PPI, as per request |
|
Thickness |
Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request |
|
Size & Shape |
Standard: 500*500mm/ 200*300mm; can be made in different shape as per request |
|
Porosity |
95%-98% |
|
Open Cell Rate |
≥98 % |
|
Volume Density |
>0.1g/cm³, as per request |
|
Surface Density |
200-2500 g/m ^2, as per request |
|
Thermal Conductivity (Theoretical) |
>3W/M.K |
|
Mechanical Strength (Theoretical) |
≥2~7MPa |
|
Tensile Strength (Theoretical) |
8~50MPa |
|
Temperature Resistance (Theoretical) |
≥500℃ |
|
0.1mm*200mm*300mm |
0.2mm*200mm*300mm |
0.3mm*200mm*300mm |
|
0.5mm to 1.7mm*200mm*300mm |
2mm*200mm*300mm |
3 to 4mm*200mm*300mm |
|
5mm*200mm*300mm |
6mm*200mm*300mm |
8mm*200mm*300mm |
|
10mm*200mm*300mm |
10 to 20mm*200mm*300mm |
The size can be customized |
Application Field
Exhaust gas purifier carrier materials, battery electrode materials, all kinds of catalyst carrier, especially for high temperature resistance and acid and alkali corrosion filtering material, the surface of the infrared burner materials, all kinds of industrial and civil heating material drying equipment, etc.

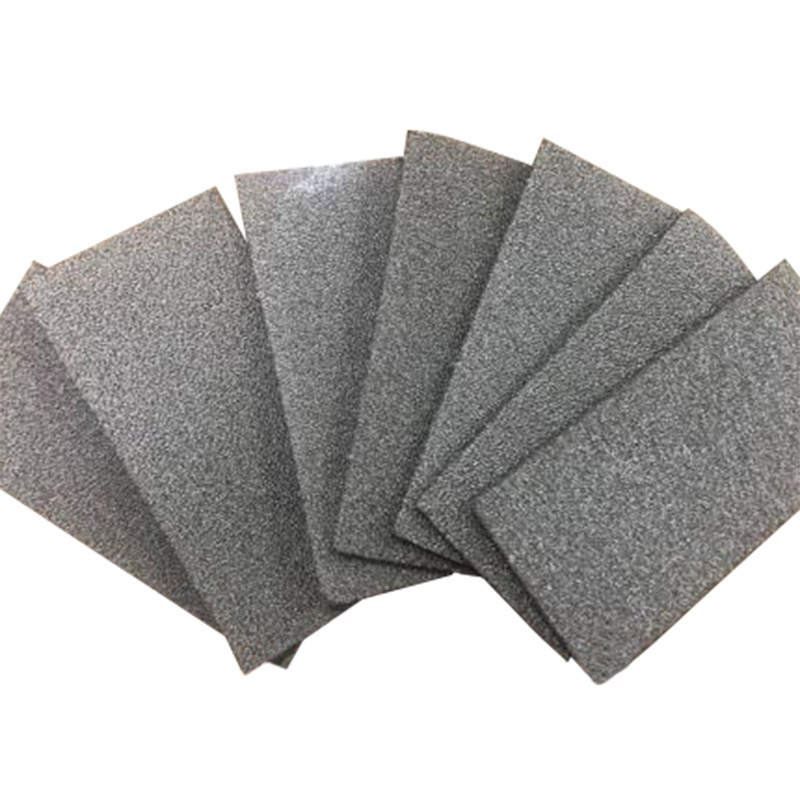

Product Image
