CNC tenon groove machine used for mortising slot of the wood funiture, including chair, table, bed.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SHUSHI
-
Dimension(L*W*H):
-
2600*2050*2000mm
-
Weight (KG):
-
1450
-
Name:
-
CNC TENON GROOVE MACHINE
-
Size:
-
Appcept customized
-
Sample:
-
Offered
-
Package:
-
Waterproof film
-
MOQ:
-
1 set
-
After-sales Service Provided:
-
On-live video
-
CNC or Not:
-
CNC
Quick Details
-
Application:
-
funiture making, Solid wood furniture production
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SHUSHI
-
Dimension(L*W*H):
-
2600*2050*2000mm
-
Weight (KG):
-
1450
-
Name:
-
CNC TENON GROOVE MACHINE
-
Size:
-
Appcept customized
-
Sample:
-
Offered
-
Package:
-
Waterproof film
-
MOQ:
-
1 set
-
After-sales Service Provided:
-
On-live video
-
CNC or Not:
-
CNC
Product Overview

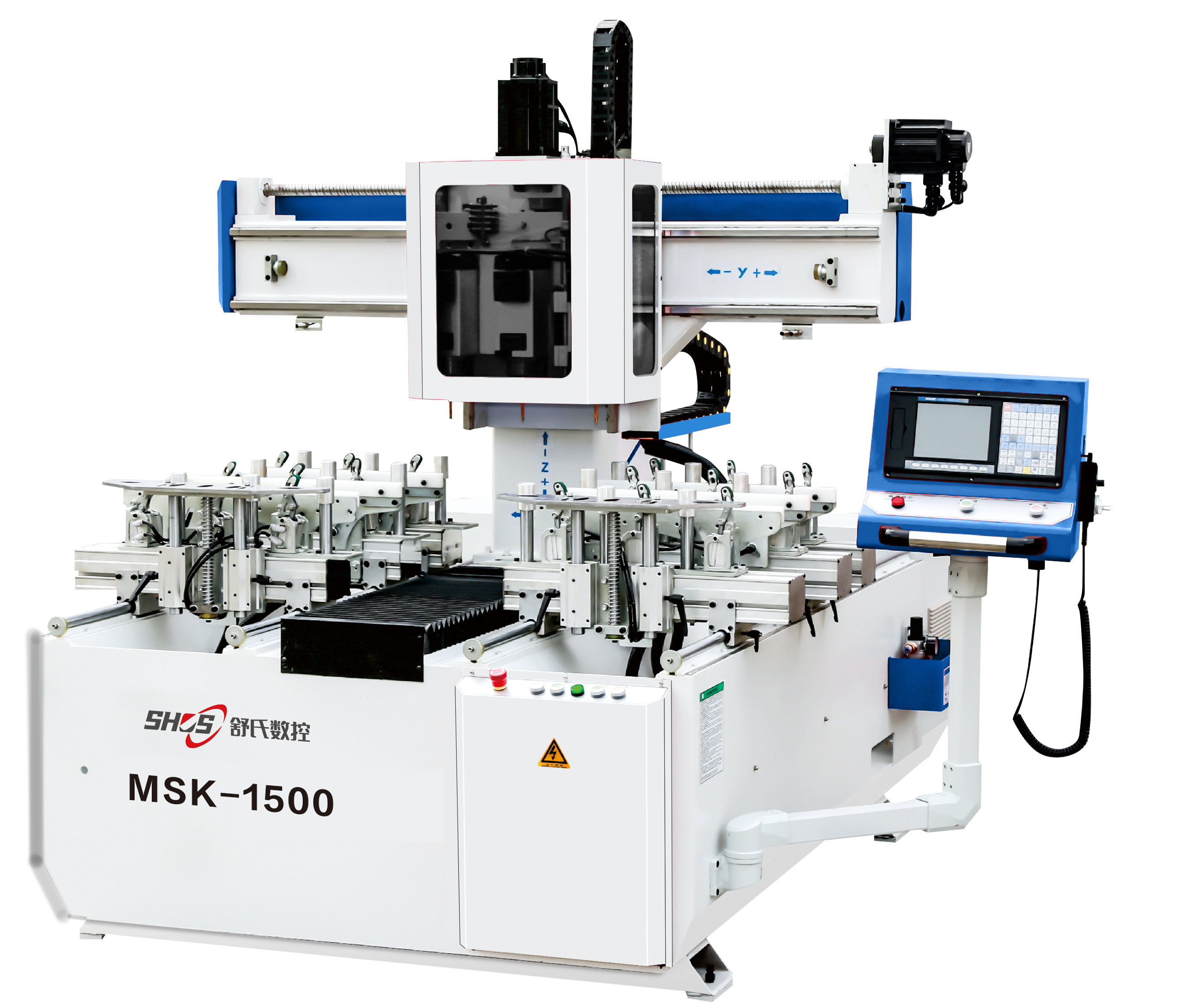

CNC TENON GROOVE MACHINE
This machine is suitable for grooving, chamfering, punching, milling grooves and other processes. It can achieve most processing needs of solid wood industry.
FEATURES AT A GLANCE
JIGS
Adopt upper pressure and side pressure to ensure the strength and stability of the pressed material.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
X-axis Maximum stroke
|
1400mm
|
|
2
|
Y-axis Maximum stroke
|
1400mm
|
|
3
|
Z-axis Maximum stroke
|
200mm
|
|
4
|
Maximum return speed
|
40m/min
|
|
5
|
Maximum material width
|
120mm
|
|
6
|
Spindle speed
|
18000r/min
|
|
7
|
Spindle power
|
2.2kW*3
|
|
8
|
Spindle base
|
200mm
|
|
9
|
Servo motor
|
2.3kW*1/1.5kW*2
|
|
10
|
Dimensions
|
2600*2050*2000mm
|
|
11
|
Weight
|
1450kg
|
PRODUCT CONFIGURATION
System: Huazhong Converter: Simphoenix
Spindle motor: Tianyi Screw: Taiwan TBI
Electrical: Schneider Guide rail: HTPM
