Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
kingOne
-
Model Number:
-
THS-10/WR
-
Product name:
-
Hydraulic Winch
-
Material:
-
Stainless Steel
-
Usage:
-
Trailer
-
Motor:
-
Hydraulic Motor
-
Type:
-
Hydraulic Pullers
-
Brake:
-
Auto Brake
-
Packing:
-
Color Box
-
MOQ:
-
10 Pcs
Quick Details
-
Power Source:
-
Hydraulic
-
Application:
-
AUTO
-
Capacity:
-
4535kgs/10000lbs
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
kingOne
-
Model Number:
-
THS-10/WR
-
Product name:
-
Hydraulic Winch
-
Material:
-
Stainless Steel
-
Usage:
-
Trailer
-
Motor:
-
Hydraulic Motor
-
Type:
-
Hydraulic Pullers
-
Brake:
-
Auto Brake
-
Packing:
-
Color Box
-
MOQ:
-
10 Pcs

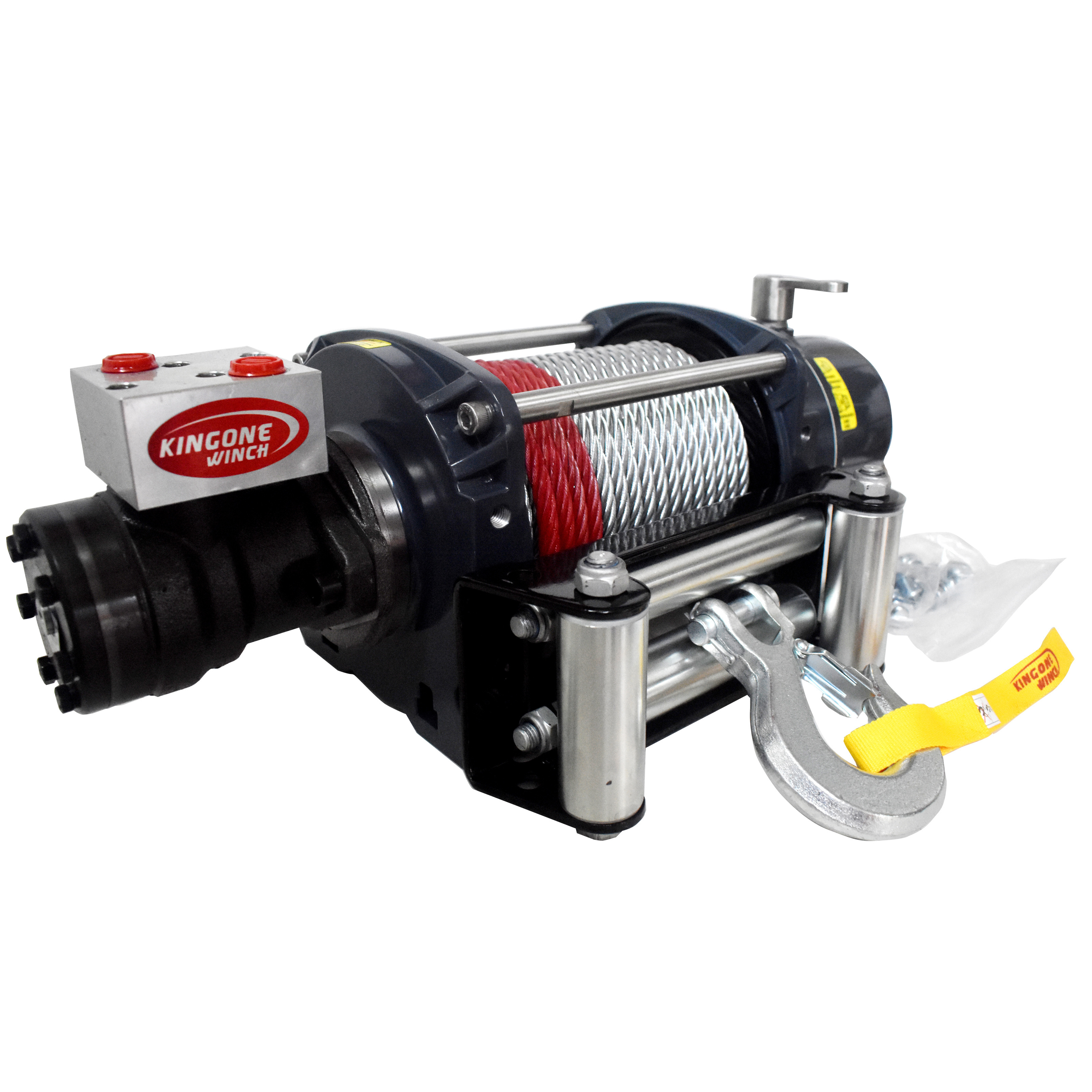

THS-10 hydraulic winch:
· Smooth running over the entire speed range.
· Highly efficient, constant operating torque motor.
· Rotating ring gear frees pooling clutch is a pull and turn design for rapid wire rope payout.
· Freespooling. Power in/out. Mechanical lock. Stainless steel tie bars . Reversible mounting.
· Variable speed hydraulic winch.
· Highly efficient, constant operating torque motor.
· Rotating ring gear frees pooling clutch is a pull and turn design for rapid wire rope payout.
· Freespooling. Power in/out. Mechanical lock. Stainless steel tie bars . Reversible mounting.
· Variable speed hydraulic winch.
SPECIFICATION
Line pull: 4,535kgs/10,000lbs
Operation Pressure: 175bar/2,537psi
Max Oil Flow: 15.9g/min(60l/min)
Gear Ratio: 43.5:1
Wire Rope Size: Φ3/8"×90'(Φ9.5mm×27.4m)
Wire Rope Size: Φ3/8"×90'(Φ9.5mm×27.4m)
Drum Size: Φ3.5"×8.1"(Φ89mm×206mm)
Braking: Gear Train
|
Line pull and Line Speed
|
|
|
||
|
1
|
10,000lbs/4535kgs
|
7.2MPM/23.6FPM
|
||
|
2
|
8,000lbs/3628kgs
|
8.7MPM/28.5FPM
|
||
|
3
|
7,000lbs/3175kgs
|
10.5MPM/34.4FPM
|
||
|
4
|
6,000lbs/2721kgs
|
12MPM/39.3FPM
|
||
