Quick Details
-
Dimension(L*W*H):
-
depend on the model
-
Weight:
-
depend on the model
-
Certification:
-
ISO
-
Application:
-
Ore
-
Color:
-
Customized
-
Feeding size:
-
25mm
-
Output size:
-
0.074-0.4mm
-
Usage:
-
Grinding Ores
-
Material:
-
Casting Steel
-
Product name:
-
Ball Mill
-
Keywords:
-
Ore Ball Mill
-
Installation:
-
Engineer's Guide
-
Spare parts:
-
Supplied
Quick Details
-
Capacity(t/h):
-
depend on your need
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Xinhai
-
Dimension(L*W*H):
-
depend on the model
-
Weight:
-
depend on the model
-
Certification:
-
ISO
-
Application:
-
Ore
-
Color:
-
Customized
-
Feeding size:
-
25mm
-
Output size:
-
0.074-0.4mm
-
Usage:
-
Grinding Ores
-
Material:
-
Casting Steel
-
Product name:
-
Ball Mill
-
Keywords:
-
Ore Ball Mill
-
Installation:
-
Engineer's Guide
-
Spare parts:
-
Supplied

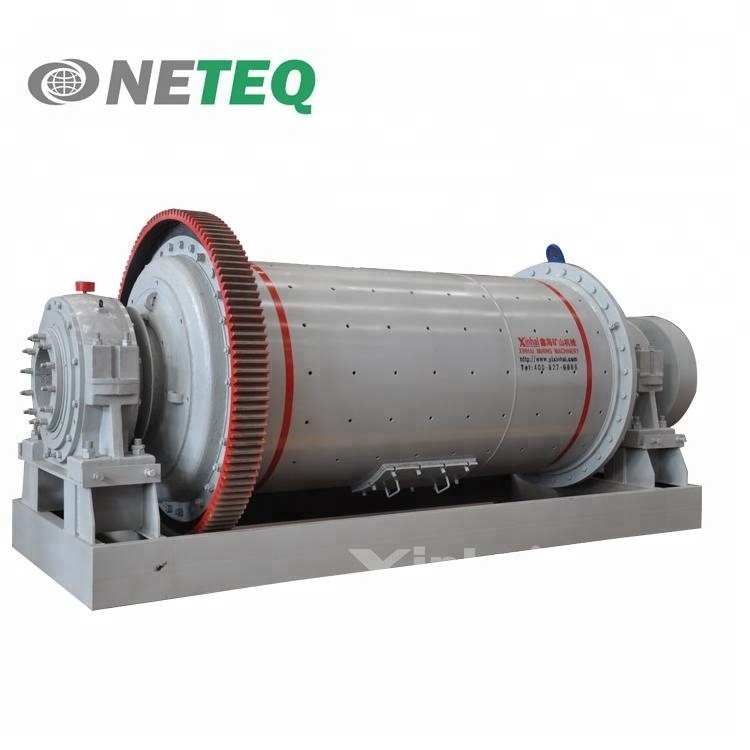

[Introduction]:A traditional ball mill with discharging grid
[Diameter]:900mm~4500mm
[Improvement]:The jack-up device adopts the hydraulic jack-up device independently developed by Xinhai. When the ball mill is in maintenance, only handling the hydraulic station can make the hydraulic jack rise and fall. Compared with the ordinary jack-up device, Xinhai jack-up device is featured with simple, convenient and fast operation, lower maintenance costs.
Jack-up device, easy maintenance;
The hydrostatic and hydrodynamic bearings ensure the smooth operation;
Low speed transmission is easy for starting and maintenance;
The oil-mist lubrication device guarantees reliable performance of bearings;
The gas clutch adopts the flexible start-up model.
According to the customer demand, manganese steel liner and wear-resistant rubber liner can be customized for Xinhai ball mill, with good wear resistance, long service life, easy maintenance.
The main component is a cylinder with diameter and length at a reasonable proportion. Driven by the transmission device, the cylinder rotates with the materials fed from the cylinder inlet and crushed by the falling impacts and autogenous grinding of the steel balls and ores in the cylinder. Due to the continuously feeding materials, the pressure pushes materials to the outlet and the grinded materials are discharged from the cylinder outlet. Qualified materials flow from the cylinder outlet. In wet grinding, the materials are taken out by the water flow.
| Model |
Cylinder
Diameter (mm) |
Cylinder
Length (mm) |
Motor Model |
Motor
Power (kW) |
Length
(mm) |
Width
(mm) |
Height
(mm) |
Effective
Volume (m3) |
Max. Ball Load (t) |
Weight
(kg) |
| MQG0909 | 900 | 900 | Y225S-8 | 18.5 | 4750 | 2213 | 2050 | 0.45 | 0.96 | 4620 |
| MQG0918 | 900 | 1800 | Y225M-8 | 22 | 5000 | 2280 | 2050 | 0.9 | 1.92 | 5340 |
| MQG1212 | 1200 | 1200 | Y225M-8 | 22 | 5788 | 2994 | 2540 | 1.14 | 2.4 | 11438 |
| MQG1224 | 1200 | 2400 | Y315S-8 | 55 | 6673 | 2994 | 2540 | 2.28 | 3.96 | 13200 |
| MQG1515 | 1500 | 1500 | JR115-8 | 60 | 6094 | 3300 | 2766 | 2.5 | 5 | 13700 |
| MQG1530 | 1500 | 3000 | JR125–8 | 95 | 7979 | 3300 | 2766 | 5 | 10 | 18690 |
| MQG2122 | 2100 | 2200 | JR128-8 | 155 | 7750 | 4839 | 3794 | 6.6 | 15 | 45400 |
| MQG2130 | 2100 | 3000 | JR137-8 | 210 | 8744 | 4394.7 | 3110 | 9 | 20 | 45790 |
| MQG2430 | 2400 | 3000 | JR1410-8 | 280 | 9728 | 4956 | 4018 | 12.1 | 22.5 | 67000 |
| MQG2721 | 2700 | 2100 | JR1410-8 | 280 | 9300 | 5500 | 4500 | 10.7 | 24 | 63000 |
| MQG2727 | 2700 | 2700 | JR148-8 | 310 | 9900 | 5500 | 4500 | 13.8 | 29 | 68530 |
| MQG2736 | 2700 | 3600 | TDMK400-32/2150 | 400 | 9765 | 5826.6 | 4674.5 | 18.4 | 41 | 98020 |
| MQG3231 | 3200 | 3100 | TDMK630-36 | 630 | 12750 | 6750 | 5152.5 | 22.5 | 45 | 115103 |
| MQG3236 | 3200 | 3600 | TDMK630-36 | 630 | 14300 | 6760 | 5200 | 24.8 | 58 | 119012 |
| MQG3245 | 3200 | 4500 | TDMK800-36 | 800 | 13896 | 7200 | 5152.5 | 32.8 | 65 | 137589 |
| MQG3639 | 3600 | 3900 | TDMK1000-36/3600 | 1000 | 15000 | 7200 | 6300 | 36.2 | 75 | 145000 |
| MQG3645 | 3600 | 4500 | TDMK1250-40 | 1250 | 15200 | 7750 | 6300 | 41.8 | 90 | 159700 |
| MQG3650 | 3600 | 5000 | TDMK1400-40 | 1400 | 17600 | 7750 | 6300 | 46.4 | 96 | 158000 |
| MQG3660 | 3600 | 6000 | TDMK1600-40 | 1600 | 17000 | 8800 | 6500 | 55.7 | 120 | 189000 |
| MQG4060 | 4000 | 6000 | TDMK1700-30 | 1700 | 17400 | 9500 | 7600 | 69.8 | 137 | 214000 |
| MQG4560 | 4500 | 6000 | TDMK2300-30 | 2300 | 17800 | 10500 | 7600 | 87 | 158 | 294000 |
